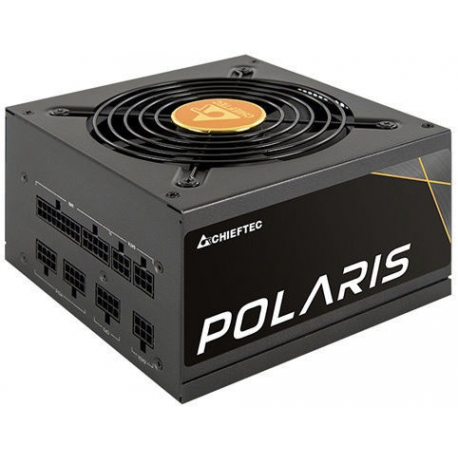

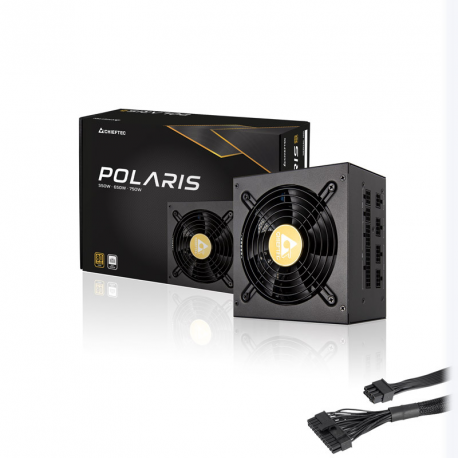

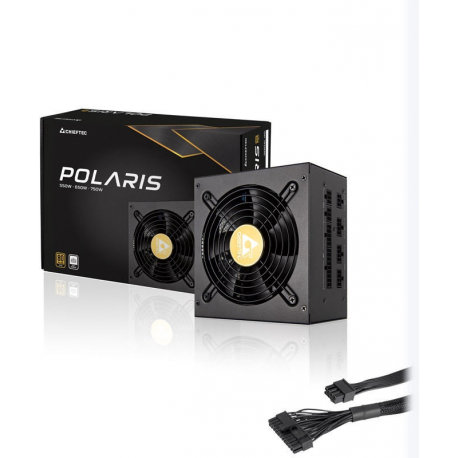

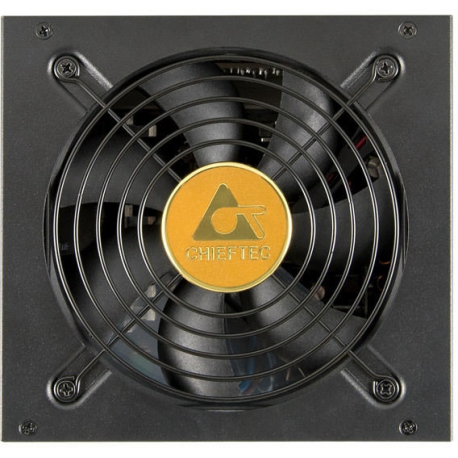

Chieftec Polaris Series 750W - Power supply (internal) - ATX12V 2.4/ EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC

  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
  • CHIEFTEC Polaris 750W certified 80Plus GOLD Full Modular ATX 12V 2.4 Active CFP with LLC converter half-bridge and DC-to-DC
images are for illustrative purposes only

New

Article: 3039750 Intrastat: 85044090 SKU: PPS-750FC
Pricing and stock details are available to registered users only.
 Add to compare
Total power750 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current10 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)750 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)22 A
Max output current (+12V)62.5 A
Max output current (+5V)22 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power protection featuresOver current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard power connector20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)3
Motherboard power cable length65 cm
Number of SATA power connectors8
SATA power cable length150,450 mm
Peripheral (Molex) power cable length150,450 mm
PCI Express power connectors (6+2 pin)4
PCI Express power cable length50 cm
CPU power connector (4+4 pin)Y
CPU power cable length65 cm
Floppy drive power connector1
Floppy disk drive connectorY

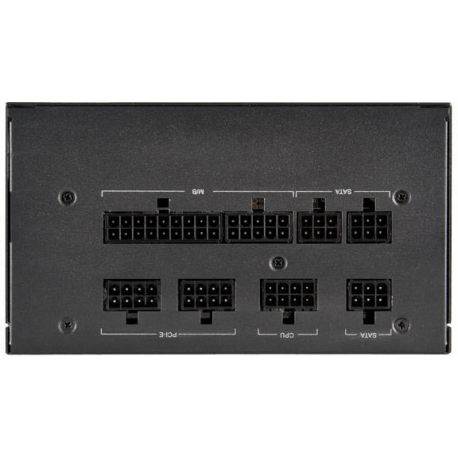

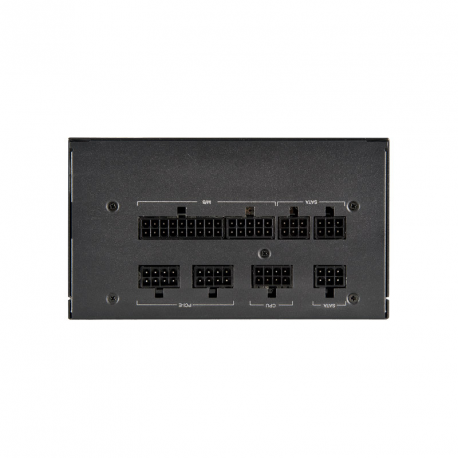

Cabling typeModular
PurposePC
Power supply unit (PSU) form factorPS/2
80 PLUS certification80 PLUS Gold
ATX version2.4
Product colourBlack
Cooling typeActive

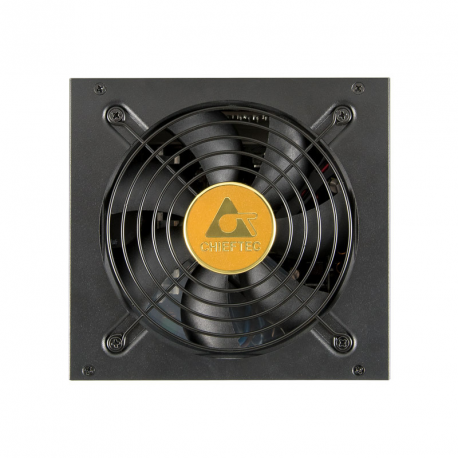

Fan diameter12 cm
Number of fans1 fan(s)
Fan locationTop
Width150 mm
Depth140 mm
Height87 mm
Weight2.29 kg
Package weight2.59 kg
Package typeBox
Sustainability certificatesRoHS
Harmonized System (HS) code84733020
