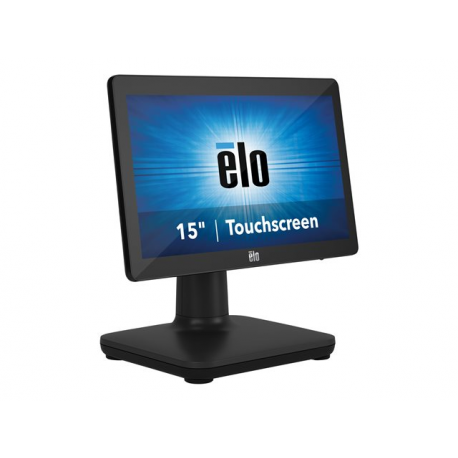

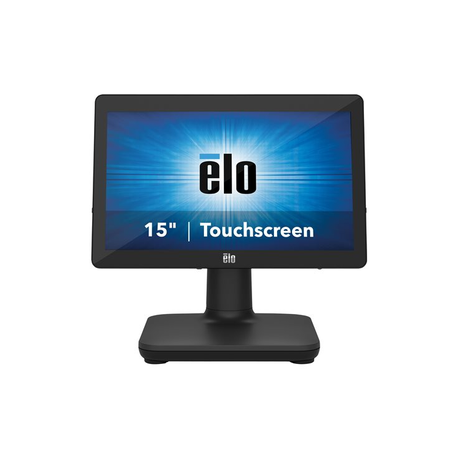

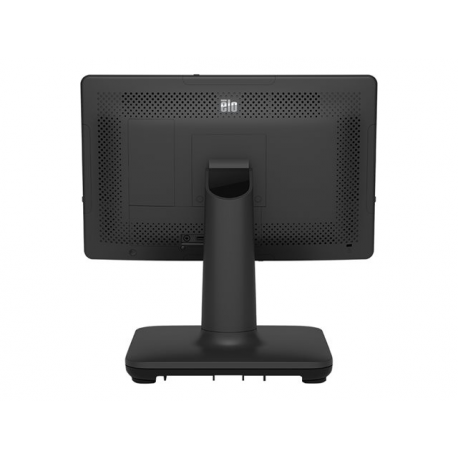

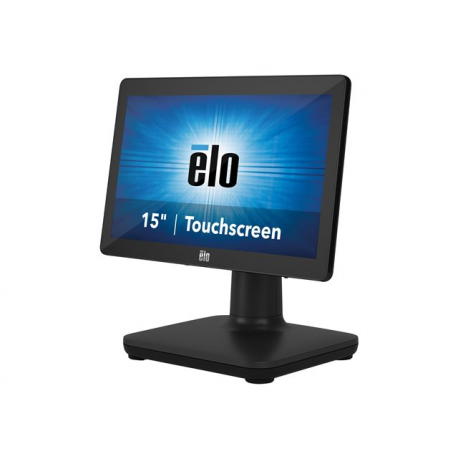

EloPOS System i5 - With I/O Hub Stand - all-in-one - 1 x Core i5 8500T / 2.1 GHz - RAM 8 GB - SSD 256 GB - UHD Graphics 630 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 - vPro - Win 10 IoT Enterprise LTSC 64-bit - monitor: LED 15.6" 1366 x 768 (HD) touchscreen
EloPOS System i5 - With I/O Hub Stand - all-in-one - 1 x Core i5 8500T / 2.1 GHz - RAM 8 GB - SSD 256 GB - UHD Graphics 630 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 - vPro - Win 10 IoT Enterprise LTSC 64-bit - monitor: LED 15.6" 1366 x 768 (HD) touchscreen
Ražotājs
•ELO TOUCHSYSTEMS
Ražotāja kods
•E892761
Artikuls
•1784658
Intrastat
•84714900
Pakas svars
•7.3 kg
Platform Technology
Intel vPro Technology
Type
Point of sale terminal
Product Form Factor
All-in-one
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Colour
Black
CPU
Intel Core i5 (8th Gen) 8500T / 2.1 GHz
Max Turbo Speed
3.5 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Turbo Boost Technology 2, Intel Smart Cache
Chipset Type
Intel Q370
Installed Size
9 MB
Cache Per Processor
9 MB
Installed Size
8 GB / 32 GB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Form Factor
SO-DIMM 260-pin
Slots
2 (Total)
Type
SSD - M.2
Capacity
1 x 256 GB
Interface Type
SATA 6Gb/s
SSD Endurance
160 TB
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Type
No optical drive
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
15.6"
Native Resolution
1366 x 768 (HD)
Widescreen Display
Yes
Image Aspect Ratio
16:9
Horizontal Viewing Angle
90
Vertical Viewing Angle
50
Response Time
10 ms
Image Brightness
187 cd/m²
Image Contrast Ratio
400:1
Bezel Type
Flat front
Monitor Features
TouchPro Pro Projected Capacitive (PCAP) technology
Graphics Processor
Intel UHD Graphics 630
Sound Output Mode
Stereo
Speakers Included
2 x right / left channel
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Features
Intel Active Management Technology (AMT) 11
Interfaces
3 x USB 3.0
2 x USB 2.0
4 x USB 2.0 - micro-USB
2 x PoweredUSB (12 V)
1 x PoweredUSB (24 V)
1 x LAN (Gigabit Ethernet) - RJ-45
1 x cash drawer
1 x headphones
2 x serial - RJ-45
1 x USB-C (27 Watt charging)
Cables Included
RJ-45 to DB-9 cable
VESA Mounting Interface
75 mm
Compliant Standards
UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM
Device Type
Power adapter
Installed Qty
1
Nominal Voltage
AC 120/230 V (50/60 Hz)
Power Provided
180 Watt
Power Consumption Operational
74 Watt
OS Provided
Windows 10 IoT Enterprise LTSC 64-bit Edition
ENERGY STAR Certified
Yes
ENERGY STAR Version
7.1
Service & Support
Limited warranty - 3 years
Dimensions & Weight Details
38.62 cm - 7.33 cm - 24.89 cm - 2.9 kg - without stand
38.62 cm - 22.12 cm - 36.93 cm - 4.9 kg - with stand
Width
38.62 cm
Depth
7.33 cm
Height
24.89 cm
Weight
2.9 kg
Shipping Width
46.2 cm
Shipping Depth
21.6 cm
Shipping Height
34.6 cm
Shipping Weight
7.3 kg
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80%
