Shuttle XPC slim XH610 - Barebone - Slim-PC - LGA1700 Socket - Intel H610 - no CPU - RAM 0 GB - GigE, 2.5 GigE - black
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 3144527 Intrastat: 84718000 Ražotāja kods: XH610
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel H610 |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 3 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | No graphics |
| Sound Output Mode | 5.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Ethernet Controller | Intel i219-LM, i225 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 2.5" ¦ 2 (total) / 2 (free) x internal M.2 2280 ¦ 1 (total) / 1 (free) x internal M.2 2230 |

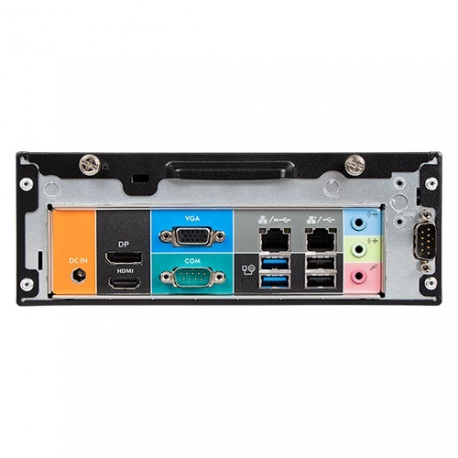

| Interfaces | 1 x microphone - mini-jack (1 in front) ¦ 1 x audio line-out/headphones - mini-jack (1 in front) ¦ 1 x DisplayPort 1.4a ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 ¦ 3 x USB 3.2 Gen 1 - Type A (1 front, 2 rear) ¦ 1 x USB 3.2 Gen 1 - Type C (1 front) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 2 x serial ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer)/line-in - mini-jack ¦ 1 x audio line-out (rear)/microphone - mini-jack |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | VCCI, BSMI, FCC, RoHS, cTUVus, ERP, EMI, RCM, EMC 2014/30/EU, LVD 2014/35/EU, CE/EMC, CB 60950, CB 62368, ErP 2009/125/EU, UKCA |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 120 Watt |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| Width | 20 cm |
| Depth | 23.8 cm |
| Height | 7.25 cm |
| Weight | 2.2 kg |
| Shipping Weight | 3.5 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
