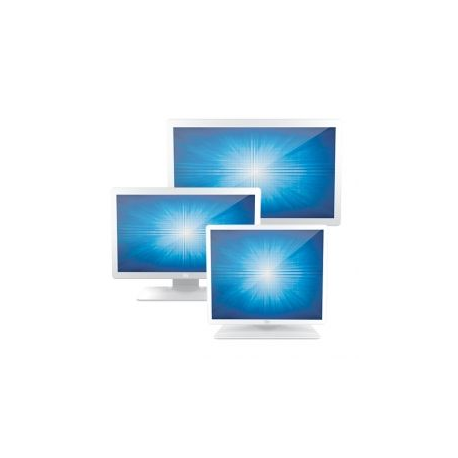

Elo 2203LM - LCD monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd / m² - 3000:1 - 25 ms - HDMI, VGA - speakers - white
Elo 2203LM - LCD monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd / m² - 3000:1 - 25 ms - HDMI, VGA - speakers - white
Ražotājs
•ELO TOUCHSYSTEMS
Ražotāja kods
•E658992
Artikuls
•1767504
Intrastat
•85285291
Pakas svars
•10.802 kg
Kopā pieejams (gab.)
•67
Tuvākā piegāde
•03.08.2026
Ražotāja cena
•896.00 €
TFT ekrāns, 16:9, ekrāna izmērs: 54,6 cm (21,5"), projicētā kapacitatīvā (PCAP), daudzpunktu pieskāriens (10 punkti), izšķirtspēja: 1920x1080 pikseļi, VESA stiprinājums (100x100 mm), reakcijas laiks: 14 ms, spilgtums: 225 cd/m², skata leņķis: 178/178° (H/V), kontrasts: 1000:1, USB (Host), VGA, HDMI, pieskāriena interfeiss: USB, iekļauts: kabelis (USB, VGA, audio, HDMI), barošanas bloks, barošanas kabelis (ES, ASV), statīvs, aizsardzības klase: IP54, krāsa: balta
22"1920 x 1080
Display Type
LCD monitor / TFT active matrix
Diagonal Size
22"
Viewable Size
21.5"
Built-in Devices
USB Hub
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Brightness
250 cd/m²
Brightness w/touchscreen
240 cd/m²
Contrast Ratio
3000:1
Colour Support
16.7 million colours
Response Time
25 ms (tr - tf)
Vertical Refresh Rate
50 - 75 Hz
Horizontal Refresh Rate
30 - 82 kHz
Horizontal Viewing Angle
+89 / -89
Vertical Viewing Angle
+89 / -89
OSD Languages
Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean
Features
TouchPro technology, DICOM Compliant
Colour
White
Dimensions (WxDxH)
52.69 cm x 19.34 cm x 38.38 cm - with stand
Weight
6.8 kg
Type
Speakers - stereo
Output Power / Channel
2 Watt
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Interfaces
HDMI ¦ VGA ¦ Audio line-out (mini-jack) ¦ USB (Type B) ¦ USB 2.0 (Type A) ¦ 4 x Micro-USB
VESA Mounting Interface
100 x 100 mm
Cables Included
1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable ¦ 1 x audio cable
MTBF
50,000 hours
Compliant Standards
UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (Typical)
22.5 Watt
Power Consumption Sleep
0.8 Watt
Shipping Width
47.7 cm
Shipping Depth
26 cm
Shipping Height
61.7 cm
Shipping Weight
10.8 kg
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
