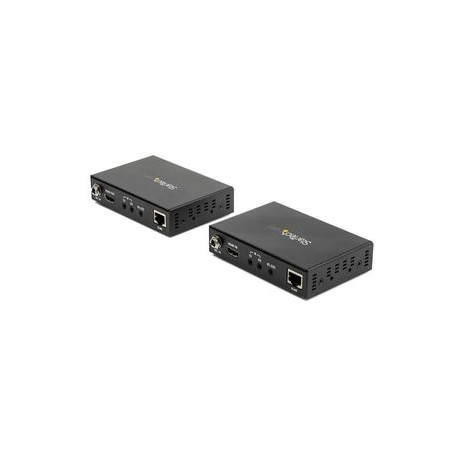

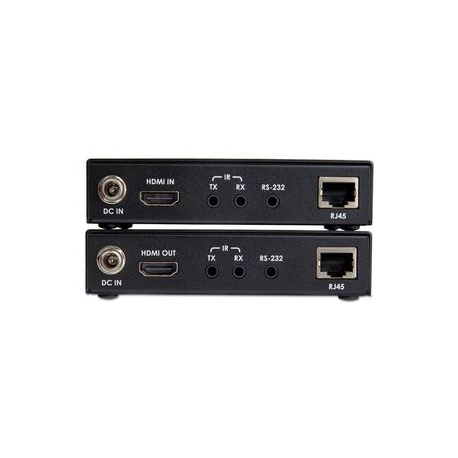

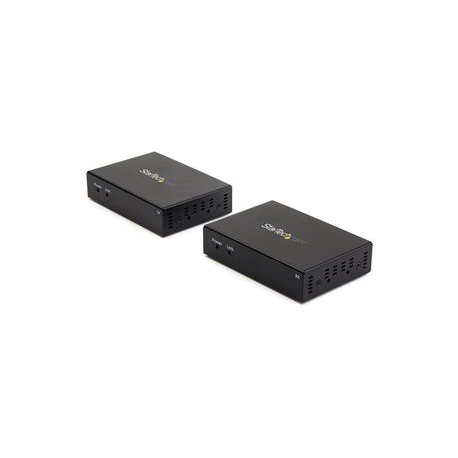

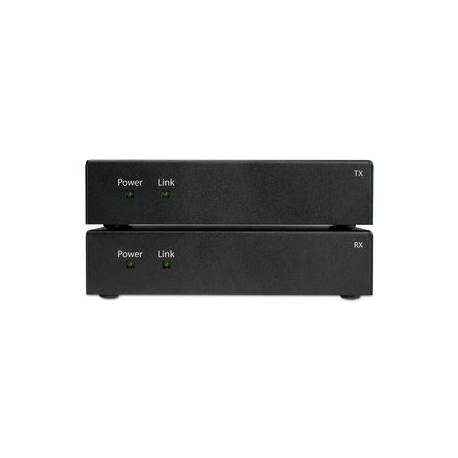

StarTech.com HDMI over CAT6 Extender - 4K 60Hz - 330ft / 100m - IR Support - HDMI Balun - 4K Video over CAT6 (ST121HD20L) - Video / audio / infrared extender - HDMI - up to 140 m
StarTech.com HDMI over CAT6 Extender - 4K 60Hz - 330ft / 100m - IR Support - HDMI Balun - 4K Video over CAT6 (ST121HD20L) - Video / audio / infrared extender - HDMI - up to 140 m
Ražotājs
•STARTECH
Ražotāja kods
•ST121HD20L
Artikuls
•1834320
Pakas svars
•1.42 kg
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat6
Maximum transfer distance
140 m
Chipset
Norelsys NS 5730, NS5731
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
LED indicators
Link, Power
Supported graphics resolutions
1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA)
HDCP
Y
Material
Metal
HDCP version
1.4/2.2
Product colour
Black
Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Serial ports quantity
2
Remote (IR) input
2
Remote (IR) output
2
DC-in jack
Y
AC input voltage
110 - 240 V
Operating voltage
5 V
Output current
2 A
External power adapter
Y
Power plug type
Type M
Operating temperature (T-T)
-5 - 40 °C
Storage temperature (T-T)
-15 - 55 °C
Operating relative humidity (H-H)
0 - 95%
Width
111 mm
Depth
76 mm
Height
26 mm
Weight
271 g
Package width
248 mm
Package depth
185 mm
Package height
95 mm
Package weight
1.42 kg
AC adapter included
Y
Cables included
LAN (RJ-45)
Included power plug types
ANZ, EU, JP, NA, UK
Quick start guide
Y
Mounting brackets included
Y
Master (outer) case width
52 cm
Master (outer) case length
42 cm
Master (outer) case height
28 cm
