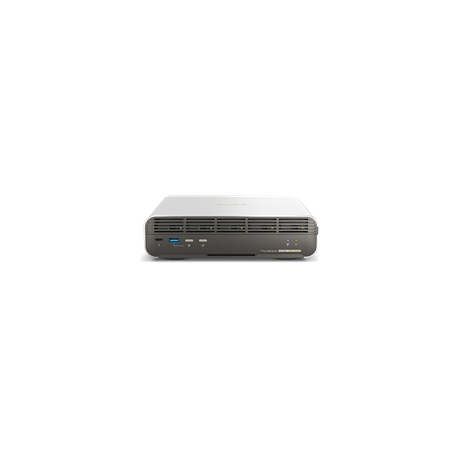

QNAP TBS-H574TX - NAS server - 5 bays - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, 60 hot spare - RAM 16 GB - 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support
QNAP TBS-H574TX - NAS server - 5 bays - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, 60 hot spare - RAM 16 GB - 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support
Ražotājs
•QNAP
Ražotāja kods
•TBS-H574TX-I5-16G
Artikuls
•3354955
Intrastat
•84717020
Pakas svars
•2.24 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•27.03.2026
Device Type
NAS server
Host Connectivity
2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty
0 (installed) / 5 (max)
Width
12.5 cm
Depth
19.9 cm
Height
6 cm
Weight
2.24 kg ()
Built-in Devices
Led panel
Processors Installed
1 x Intel Core i5 1340PE
Number of Cores
12-core
Max Supported Qty
1
Max Turbo Speed
4.5 GHz
RAM
16 GB (installed) / 16 GB (supported)
Flash Memory Installed
5 GB
Type
RAID
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID 60 hot spare
Data Link Protocol
100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE
Network / Transport Protocol
PPTP, L2TP, IPSec, IPv4, IPv6, WireGuard, QBelt, QuFTP, OpenVPN
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP
Network Services Compatibility
Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance
Concurrent connections (CIFS): 1500
Features
Firewall protection, VLAN support, antivirus analysis, RADIUS support, Jumbo Frames support, DHCP server, FTP server, Domain Controller, reset button, 2 fans, built-in hardware transcoding, file station, port trunking, USB One Touch Copy, EXT4 file system, SSD trim, Windows ODX, hybrid backup sync, Qfiling, Qsirch, SQL Server, VJBOD Cloud, Qsync, QuMagie, Smart Fan, built-in buzzer, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, fibre
Encryption Algorithm
TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, TLS 1.3
Expansion Bays
5 (total) / 5 (free) x hot-swap
Expansion Slots
5 (total) / 0 (free) x PCI Express 3.0 x2 ¦ 5 (total) / 5 (free) x M.2 2280
Interfaces
1 x 2.5 Gigabit Ethernet ¦ 1 x Ethernet 10Gb ¦ 2 x Thunderbolt 4 ¦ 1 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 1 x HDMI output
Cables Included
1 x network cable
Included Accessories
Power cable
Power Device
External power adapter
Voltage Required
AC 100-240 V
Power Consumption Operational
46 Watt
Power Provided
120 Watt
Storage Operating System
QNAP QuTS hero h5.1.3 / QTS 5.1.3
Software Included
McAfee AntiVirus, IronWolf Health Management
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows Server 2022, Microsoft Windows 7 / 8 / 10 / 11, Apple macOS 10.10 or later
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
