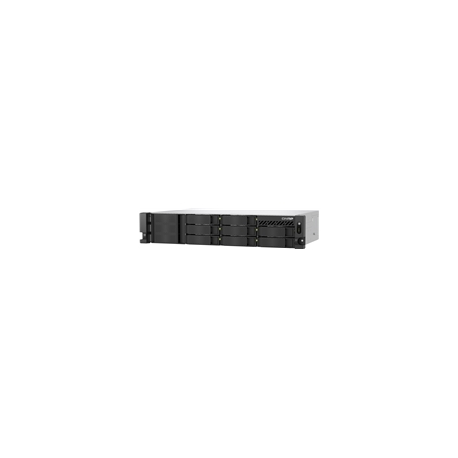

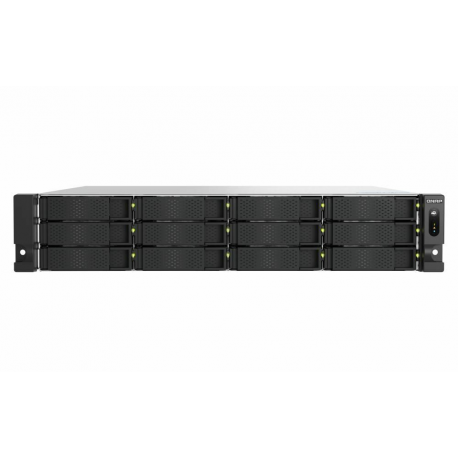

NAS server

2.5 Gigabit Ethernet / 10 Gigabit Ethernet

Rack-mountable - 2U

0 GB

0 (installed) / 12 (max)

43.2 cm

51.12 cm

8.86 cm

13 kg ()

Led panel, buzzer, 3 x 60 mm fans

1 x AMD

6-core

1

5.1 GHz

16 GB (installed) / 128 GB (supported) - DDR5

5 GB

RAID

SATA 6Gb/s

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE

PPTP, L2TP, IPv4, IPv6, WireGuard, QBelt, QuFTP, OpenVPN

SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP

Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4)

Concurrent connections (CIFS): 5000 - (with maximum memory) ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum volume size: 250 TB ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum LUN size: 250 TB ¦ Maximum FTP connection: 1024 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ System log & notification centre: 3000 events per second ¦ Virtual hosts: 32

Firewall protection, VLAN support, wake on LAN (WOL), antivirus analysis, RADIUS support, Jumbo Frames support, DHCP server, FTP server, Domain Controller, reset button, built-in hardware transcoding, file station, port trunking, EXT4 file system, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, SQL Server, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, fibre channel serv

TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3

12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"

2 (total) / 2 (free) x M.2 2280 ¦ 3 (total) / 3 (free) x PCI Express 4.0 x4

2 x Ethernet 1000Base-T - RJ-45 ¦ 2 x 2.5 Gigabit Ethernet ¦ 2 x USB 3.2 Gen 2 - Type A

1 x network cable

48 x flat head screws (for 3.5" HDD), 36 x flat head screws (for 2.5" HDD), 2 x power cables

Internal power supply

2

2

AC 100-240 V

550 Watt

QNAP QuTS hero h5.1.3 / QTS 5.1.3

IronWolf Health Management

Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows Server 2022, Microsoft Windows 7 / 8 / 10 / 11, Apple macOS 10.10 or later

Limited warranty - 5 years

19 kg

0 °C

40 °C

5 - 95% RH (non-condensing)
