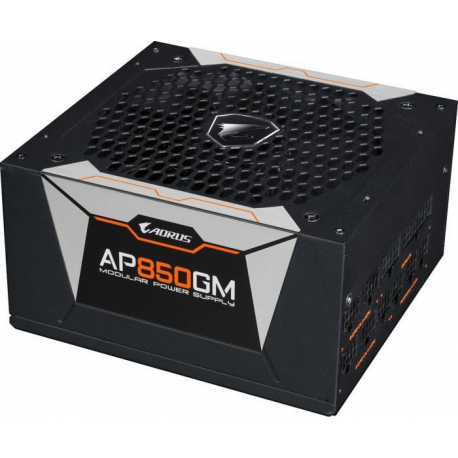

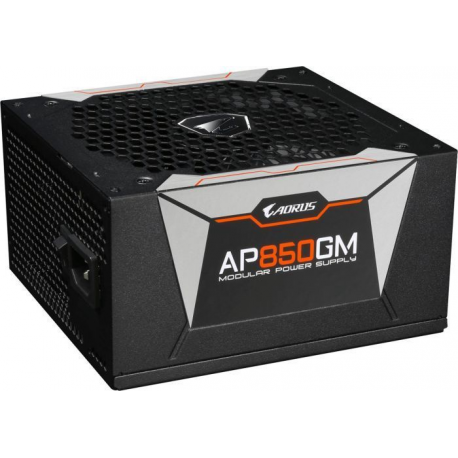

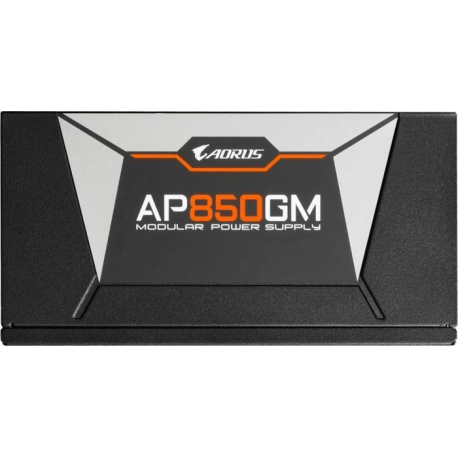

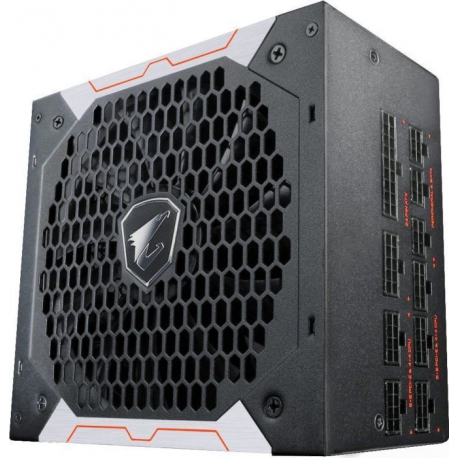

AORUS P850W GP-AP850GM - Power supply (internal) - ATX12V 2.3/ EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 3038807 Intrastat: 85044090 Ražotāja kods: GP-AP850GM
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

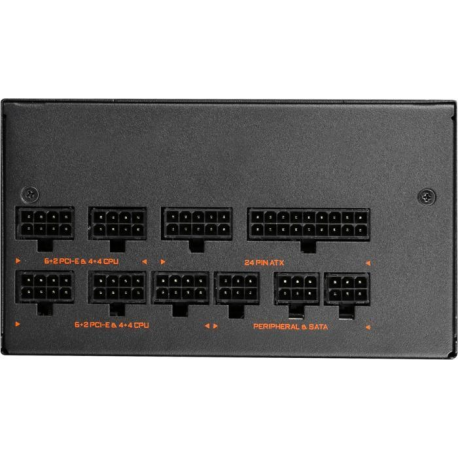

| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 450,550,650,750 mm |
| EPS power connector (8-pin) | Y |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Y |
| ATX power connector (20+4 pin) | Y |
| Floppy drive power connector | 2 |
| Floppy disk drive connector | Y |
| PCI Express connector | Y |
| Cabling type | Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

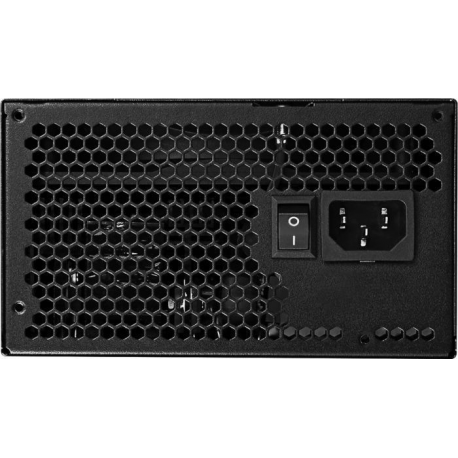

| On/off switch | Y |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
