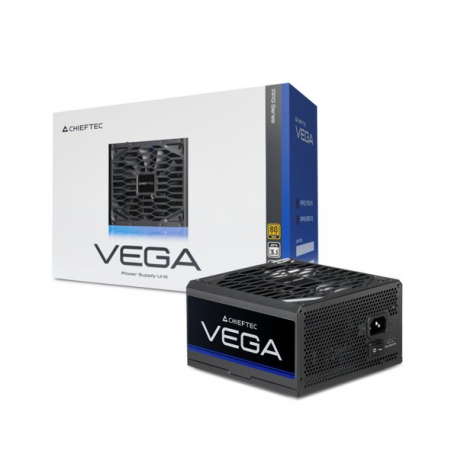

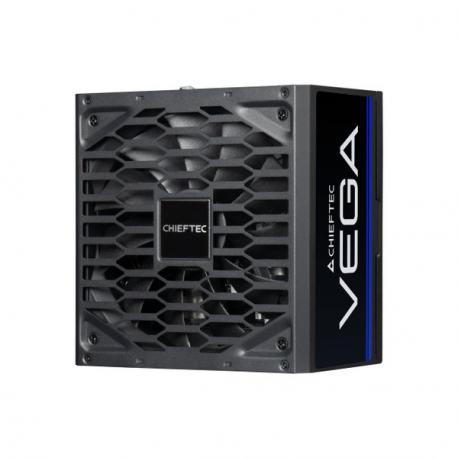

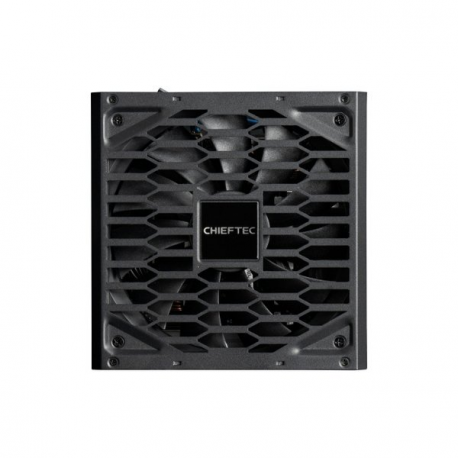

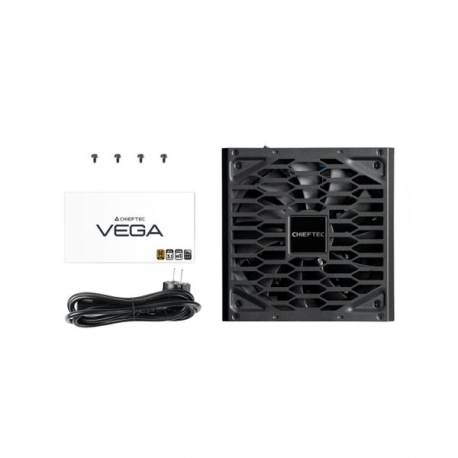

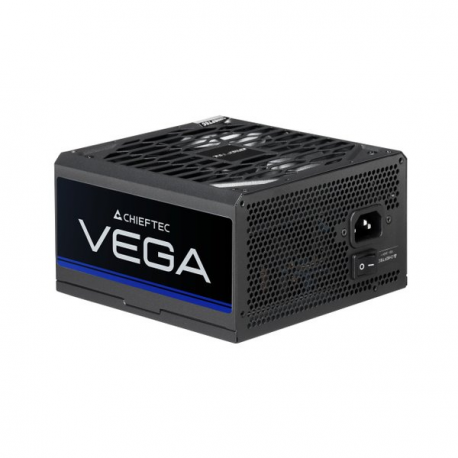

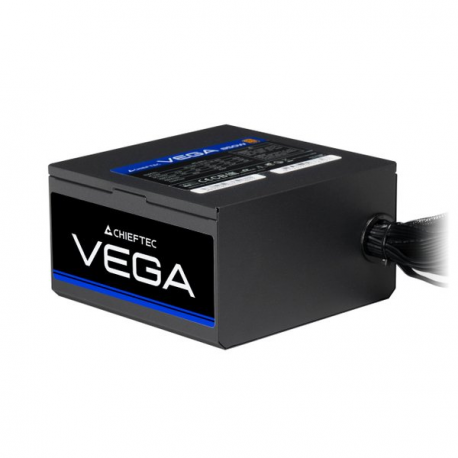

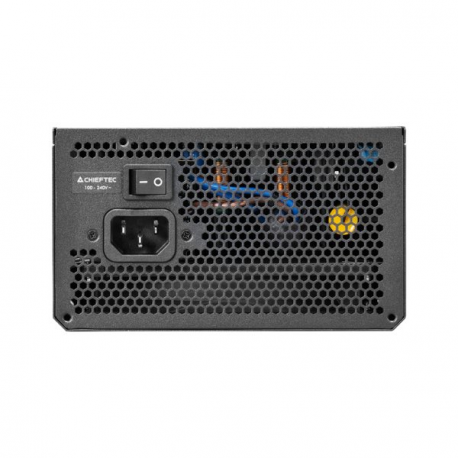

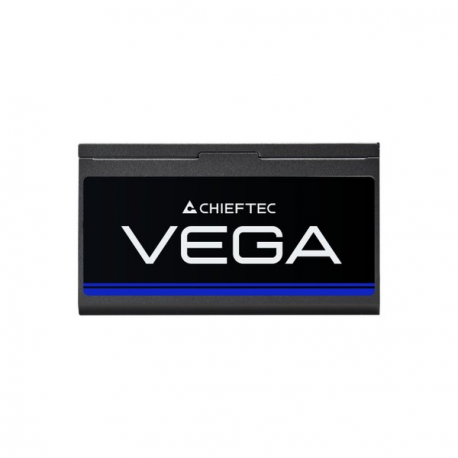

Chieftec VEGA Series PPG-850-S - Power supply (internal) - ATX12V 3.1 - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 4174559 Intrastat: 85044090 Ražotāja kods: PPG-850-S
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1 |
| PSU Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V 4 x 8 pin PCI Express power 1 x 16 pin PCI Express power 6 x SATA connector 3 x Molex |
| Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.3 A +5VSB - 0.3 A |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS Gold |
| Cables Included | Power 24 pin ATX cable 600 m Power 8 pin EPS12V modular cable 650 m 8 pin PCI Express power cable 600 m 16-pin PCIe 5.0 cable 600 m SATA Express cable 400 m Molex power cable 400 m |
| Cooling System | 135 mm fan |
| Features | Automatic Fanspeed Control (AFC), fluid dynamic bearing cooling fan, Surge & Inrush Protection (SIP), high temperature protection, undervoltage protection, over voltage protection, short-circuit protection, over current protection, overload protection, LLC Half Bridge Topology, DC-DC technology |
| Compliant Standards | TUV, CB, EAC, Interseroh, RoHS, Lead-Free |
| Service & Support | Limited warranty - 2 years |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.5 cm |
| Weight | 2.07 kg |
| Shipping Weight | 2.54 kg |
