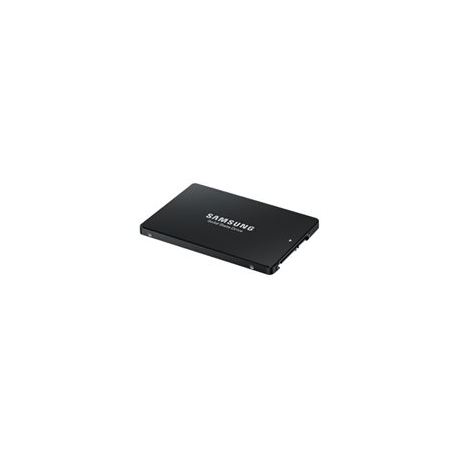

Lenovo PM1635a Mainstream - Solid state drive - 1.6 TB - hot-swap - 2.5" - SAS 12Gb / s - for ThinkAgile HX3321 Certified Node; HX7820 Appliance; HX7821 Certified Node
Lenovo PM1635a Mainstream - Solid state drive - 1.6 TB - hot-swap - 2.5" - SAS 12Gb / s - for ThinkAgile HX3321 Certified Node; HX7820 Appliance; HX7821 Certified Node
Ražotājs
•LENOVO
Ražotāja kods
•7N47A00119
Artikuls
•1670265
Intrastat
•84717050
Pakas svars
•0.14 kg
Device Type
Solid state drive - hot-swap
Capacity
1.6 TB
Form Factor
2.5"
Interface
SAS 12Gb/s
Features
Tagged Command Queuing (TCQ), advanced power loss data management, Dual Port, End-to-end data protection, S.M.A.R.T.
Width
70 mm
Depth
100 mm
Height
15 mm
Weight
140 g
Drive Writes Per Day (DWPD)
3
SSD Endurance
8760 TB
Drive Transfer Rate
1.2 GBps (external)
Internal Data Rate
940 MBps (read) / 830 MBps (write)
4KB Random Read
197000 IOPS
4KB Random Write
60000 IOPS
MTBF
2,000,000 hours
Non-Recoverable Errors
1 per 10^17
Interfaces
2 x SAS 12 Gb/s
Compatible Bay
2.5"
Power Consumption
9 Watt (read) ¦ 9 Watt (write)
OS Required
Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 5, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Red Hat Linux Enterprise Server 6, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 5 Server with Xen x64 Edition, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, VMware vSphere 5.5 (ESXi), SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), Microsoft Windows Server 2016, VMware vSphere 5.1 (ESXi), VMware vSphere 6.5 (ESXi)
Compliant Standards
UL, TUV, VCCI, C-Tick, BSMI, CB, IC, FCC, RoHS, KCC
Service & Support
Limited warranty - replacement - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (non-operating)
1500 g @ 0.5 ms
Vibration Tolerance (non-operating)
20 g @ 10-2000 Hz
Designed For
Lenovo ThinkAgile HX3321 Certified Node 7Y89 (2.5") ¦ Lenovo ThinkAgile HX3520-G Appliance (2.5") ¦ Lenovo ThinkAgile HX3721 Certified Node 7Y88 (2.5") ¦ Lenovo ThinkAgile HX7520 Appliance 7X84 (2.5") ¦ Lenovo ThinkAgile HX7820 Appliance 7Y95 (2.5") ¦ Lenovo ThinkAgile HX7821 Certified Node 7Y96 (2.5") ¦ Lenovo ThinkAgile VX 2U Certified Node (2.5") ¦ Lenovo ThinkSystem SD530 (2.5") ¦ Lenovo ThinkSystem SN550 (2.5") ¦ Lenovo ThinkSystem SN850 (2.5") ¦ Lenovo ThinkSystem SR530 (2.5") ¦ Lenovo ThinkSystem SR550 (2.5") ¦ Lenovo ThinkSystem SR570 (2.5") ¦ Lenovo ThinkSystem SR590 (2.5") ¦ Lenovo ThinkSystem SR630 (2.5") ¦ Lenovo ThinkSystem SR650 (2.5") ¦ Lenovo ThinkSystem SR850 (2.5") ¦ Lenovo ThinkSystem SR860 (2.5") ¦ Lenovo ThinkSystem ST550 (2.5")
