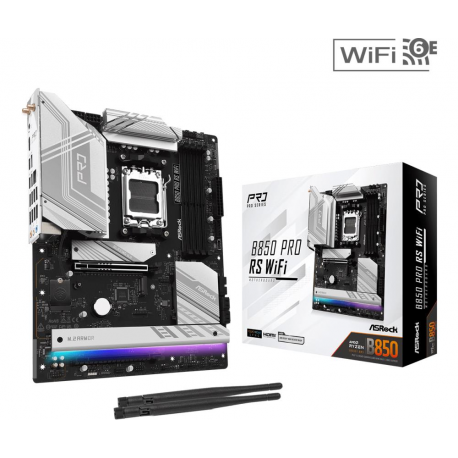

ASRock B850 Pro RS WiFI - Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B850 Pro RS WiFI - Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASROCK
Ražotāja kods
•B850 PRO RS WIFI
Artikuls
•4193709
Intrastat
•84717020
Kopā pieejams (gab.)
•29
Tuvākā piegāde
•22.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B850
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
4000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Dragon RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (Key E, for wireless module) ¦ 3 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2230/2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 1 ¦ 6 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x aerial
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Features
14+2+1 Phase Power Design, 80A Power Stage, Dr.MOS MOSFET, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, Hi-Density Power Connectors, 8 Layer PCB, Surface Mount Technology (SMT), reinforced PCIe slots, Nahimic Audio Enhacer, pre-mounted I/O shield, DIY Friendly Design, enlarged M.2 heatsink, anti-drop M.2 heatsink screw, aluminium heatsink design, ASRock Polychrome RGB
Included Accessories
2 x ASRock WiFi 2.4/5/6 GHz Antennas
Cables Included
2 x Serial ATA cable
Software Included
ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
Compliant Standards
FCC, ErP Ready, EuP Ready
Width
30.5 cm
Depth
24.4 cm
