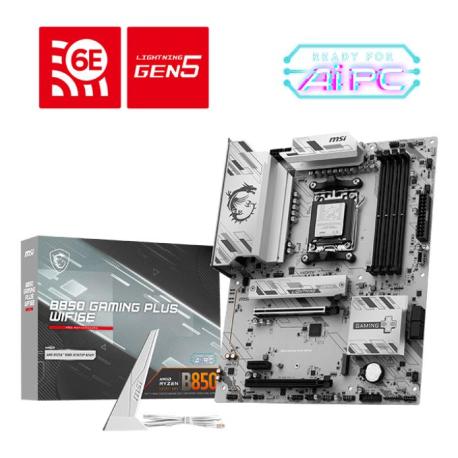

MSI B850 GAMING PLUS WIFI6E - Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
MSI B850 GAMING PLUS WIFI6E - Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•MSI
Ražotāja kods
•B850 GAMING PLUS WIFI6E
Artikuls
•4346193
Intrastat
•84717020
Kopā pieejams (gab.)
•50
Tuvākā piegāde
•22.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B850
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
4800 MT/s, 5600 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6400 MT/s (O.C.), 8200 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
AMD EXPO technology, dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8125D
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x aerial
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
MSI ClickBIOS
Hardware Features
12+2+1 Phase Power Design, Extended Heatsink Design, MSI AI Engine, MSI AI LAN Manager, Frozr AI Cooling, M.2 Shield FROZR, 6 Layer PCB, 2oz Copper PCB, Clear CMOS Button, flash BIOS button, pre-mounted I/O shield, MSI Stainless Steel Back I/O, EZ Debug LED, EZ Conn-Design, MSI Steel Armor, EZ M.2 Clip II, EZ PCie Clip II, MSI Memory Boost, transient voltage suppressors, overcurrent protection, MSI Audio Boost, MSI Mystic Light
Included Accessories
EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable, EZ M.2 clip II remover, cable sticker
Cables Included
1 x Serial ATA cable
Width
30.48 cm
Depth
24.384 cm
