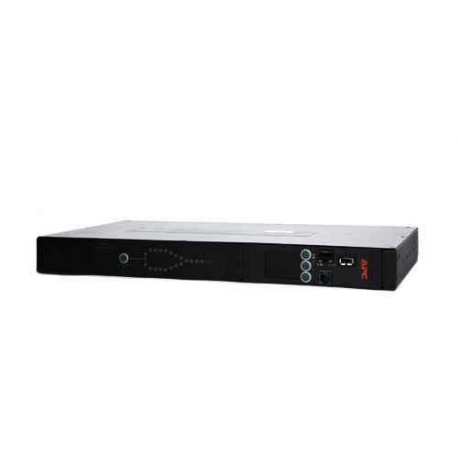

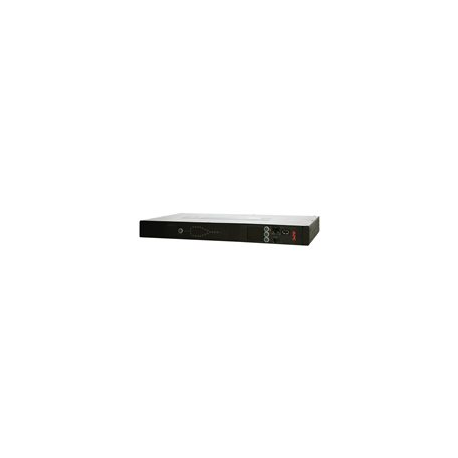

APC Rack Automatic Transfer Switch AP4421 - Redundant switch (rack-mountable) - AC 230 V - Ethernet 10 / 100, RS-232, USB - output connectors: 12 - 1U - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

APC Rack Automatic Transfer Switch AP4421 - Redundant switch (rack-mountable) - AC 230 V - Ethernet 10 / 100, RS-232, USB - output connectors: 12 - 1U - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

Ražotājs
•
SCHNEIDER
Ražotāja kods
•
AP4421
Artikuls
•
1492733
Intrastat
•
85176990
Pakas svars
•
5.7 kg
APC Rack Automatic Transfer Switch nodrošina uzticamu, redundantu barošanas padevi iekārtām ar vienu barošanas vadu, piemēram, serveriem. Tam ir divi ieejas barošanas vadi, kas piegādā strāvu pieslēgtajām iekārtām. Ja primārais avots kļūst nepieejams vai atrodas ārpus izvēlētā diapazona, Rack ATS nepārtraukti nodrošinās strāvas piegādi no sekundārā avota kritiskajām iekārtām.

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs
•
SCHNEIDER
Ražotāja kods
•
AP4421
Artikuls
•
1492733
Intrastat
•
85176990
Pakas svars
•
5.7 kg
APC Rack Automatic Transfer Switch nodrošina uzticamu, redundantu barošanas padevi iekārtām ar vienu barošanas vadu, piemēram, serveriem. Tam ir divi ieejas barošanas vadi, kas piegādā strāvu pieslēgtajām iekārtām. Ja primārais avots kļūst nepieejams vai atrodas ārpus izvēlētā diapazona, Rack ATS nepārtraukti nodrošinās strāvas piegādi no sekundārā avota kritiskajām iekārtām.

Device Type
Redundant switch - rack-mountable
Height (Rack Units)
1U
Colour
Black
Input Voltage
AC 230 V
Input Voltage Margin
± 10%
Frequency Required
50/60 Hz

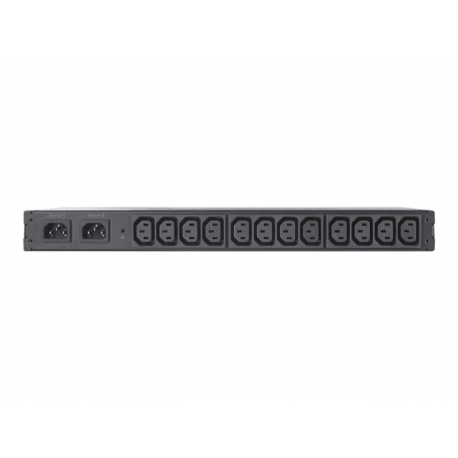

Input Connectors
2 x power IEC 60320 C14
Power Output Connectors Details
12 x power IEC 60320 C13 10 A
Output Voltage
AC 230 V
Max Electric Current
10 A
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP, Telnet, HTTP, SSH
Interfaces
1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A
Included Accessories
Mounting kit, rack mounting brackets
Cables Included
Serial cable - external
Rack Mounting Kit
Included
Features
Current meter, LED indicators, short-circuit protection
Compliant Standards
RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EMC 2004/108/EC, LVD 2006/95/EC, EMC 2014/30/EU, LVD 2014/35/EU
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 95% (non-condensing)
Width
43.2 cm
Depth
23.6 cm
Height
4.4 cm
Weight
3.93 kg
Shipping Width
60 cm
Shipping Depth
34.9 cm
Shipping Height
11.4 cm
Shipping Weight
5.7 kg
Designed For
P/N: AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3300W, AR3305W, AR3340G, AR3355SP, AR3355W, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1000R2I-AR, SMT1000RMI2UC, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RMI2UC, SMT1500RMI2UNC, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT
