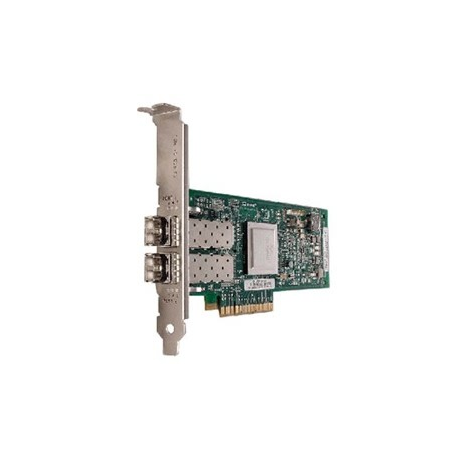

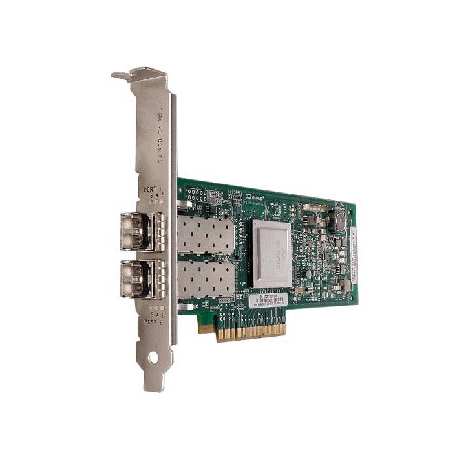

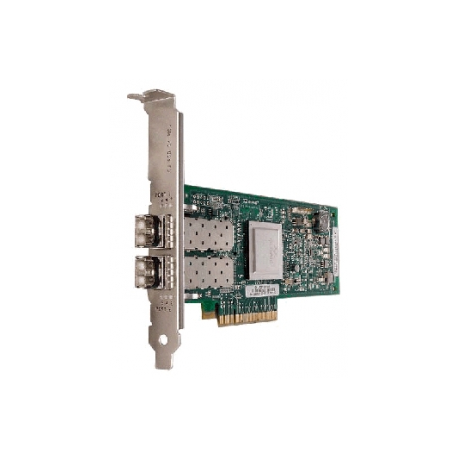

QLogic 8Gb FC Dual-port HBA for IBM System x - Host bus adapter - PCIe x4 - 8Gb Fibre Channel x 2 - for System x3100 M5; x3250 M6; x32XX M2; x34XX; x3550 M2; x3650 M2; x3650 M4 HD; x3950 M2
Ražotājs
•IBM
Ražotāja kods
•42D0510
Artikuls
•385313
Pakas svars
•0.31 kg
QLogic 8Gb FC divu portu HBA priekš IBM System x - hosta busa adapteris - PCIe x4 - 8Gb Fibre Channel x 2 - priekš System x3100 M5; x3250 M6; x32XX M2; x34XX; x3550 M2; x3650 M2; x3650 M4 HD; x3950 M2 paredzēts modeļiem: IBM System Storage DS3400 Model 41X, IBM System Storage DS3400 Model 42X, Lenovo System Storage DS3400 Model 41E, Lenovo System Storage DS3400 Model
Device Type
Host bus adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express x4
PCI Specification Revision
PCIe 1.0a, PCIe 1.0
Bus Voltage
Universal (3.3 V & 5.0 V)
Ports
8Gb Fibre Channel x 2
Connectivity Technology
Wired
Data Link Protocol
8Gb Fibre Channel
Data Transfer Rate
8.5 Gbps
Features
Auto-negotiation
RAM
1 MB
Flash Memory
1 MB
Interfaces
2 x network - 8Gb Fibre Channel
Compatible Slots
1 x PCI Express
Compliant Standards
UL, TUV, VCCI Class B ITE, BSMI CNS 13438 Class B, cUL, DHHS, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, UL 60950, ICES-003 Class B, AS/NZ 3548 Class B, FCC Part 15 B, MIC, CSA C22.2, EN 60950-1, EN 60825
Width
2.5 cm
Depth
16.8 cm
Height
6.5 cm
Weight
113 g
Service & Support
Limited warranty - 1 year - on-site
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Designed For
IBM System Storage DS3400 Model 41E, DS3400 Model 41X, DS3400 Model 42E, DS3400 Model 42T, DS3400 Model 42X ¦ Lenovo System x3100 M4 2582 ¦ Lenovo System x3100 M5 ¦ Lenovo System x3200 M2 ¦ Lenovo System x3250 M2 ¦ Lenovo System x3250 M3 4252 ¦ Lenovo System x3250 M4 ¦ Lenovo System x3250 M6 ¦ Lenovo System x3300 M4 ¦ Lenovo System x3350 ¦ Lenovo System x3400 ¦ Lenovo System x3450 ¦ Lenovo System x3500 ¦ Lenovo System x3550 ¦ Lenovo System x3550 M2 ¦ Lenovo System x3620 M3 ¦ Lenovo System x3630 M3 7377 ¦ Lenovo System x3630 M4 ¦ Lenovo System x3650 ¦ Lenovo System x3650 M2 ¦ Lenovo System x3650 M3 ¦ Lenovo System x3650 M4 HD ¦ Lenovo System x3655 ¦ Lenovo System x3755 ¦ Lenovo System x3850 M2 ¦ Lenovo System x3950 M2 ¦ Lenovo System x3950 X5
