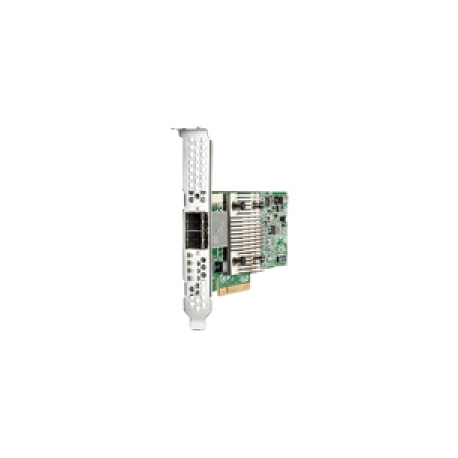

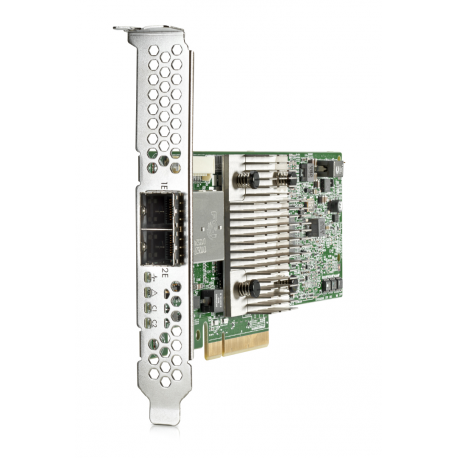

HPE H241 Smart Host Bus Adapter - Storage controller - 8 Channel - SATA 6Gb / s / SAS 12Gb / s - low profile - RAID 0, 1, 5 - PCIe 3.0 x8 - for HPE D3710; Apollo 4510 Gen9; ProLiant DL20 Gen9, ML10 Gen9, ML30 Gen9, XL230a Gen9
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1242531 Ražotāja kods: 726911-B21
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
Do you need a cost effective controller that provides fast access to the data on the direct attached or shared storage drives and you do not have the room in your server to add additional storage? The HP H241 Smart Host Bus Adapter comes in a low profile, PCIe3 x8 standup form factor that provides the Gen9 Servers a reliable, high performing SAS connectivity to the data in the direct attached or shared storage solutions. Featuring eight external physical links, it delivers 12 Gb/s SAS performance. The H241 Smart Host Bus Adapter provides flexibility to run as an HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HP Secure Encryption capabilities. Unlike the HP Smart Array Controllers, the H241 does not offer any acceleration or support cache modules. The controller is also ideal for data backup to an external tape drives.
- Cost-Effective External SAS Storage Connectivity
The HP H241 Smart Host Bus Adapter comes in a low-profile, PCIe3 x8 standup form factor that provides a basic building block for simple RAID storage solution for HP Gen9 Servers. Delivering up to 12 Gb/s SAS connectivity to the direct attached & shared storage providing increased scalability, basic data protection, and flexibility for external storage connectivity. You get optimized performance and uptime for your entry-level storage requirements. This HBA supports SAS, SATA, Solid State Drives (SSDs) and external tape drives for increased flexibility. - Efficient and Simple Configuration, Deployment and Management
The HP H241 Host Bus Adapter and the shared storage devices are configured, deployed and managed by the easy to use HP Smart Storage Administrator software which is included in the intelligent provisioning capabilities of the server. Delivers proactive service warnings and analysis based on Solid State Drive (SSD) endurance reports from the HP SmartSSD Wear Gauge utility. Simplify the management of the shared storage pool with HP Smart Storage Administrator.
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Interfaces | 2 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Shielded Mini MultiLane (external) |
| Included Accessories | Low-profile bracket |
| Compliant Standards | WEEE |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP3, Ubuntu 14.04, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5 |
| Service & Support | Limited warranty - parts - 1 year |
| Width | 1.6 cm |
| Depth | 16.8 cm |
| Height | 6.86 cm |
| Designed For | HPE D3710 ¦ HPE Apollo 4510 Gen9 ¦ HPE Modular Smart Array 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle, 2040 SAS Dual Controller SFF Bundle ¦ HPE ProLiant DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9 Entry, DL80 Gen9, ML10 Gen9, ML10 Gen9 Entry, ML10 Gen9 Performance, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, SL210t Gen8, SL210t Gen8 1U Node, SL210t Gen8 2U Node, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s G |
