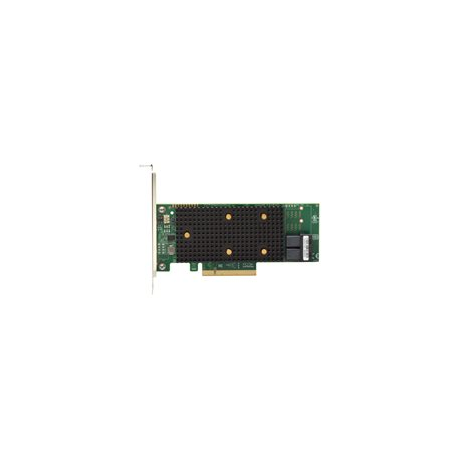

Lenovo ThinkSystem 530-8i - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 10, 50, JBOD - PCIe 3.0 x8 - for ThinkSystem SR630 V2; SR645; SR650 V2; SR665; SR670 V2; SR850 V2; SR860 V2; ST50; ST650 V2
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1564905 Ražotāja kods: 7Y37A01082
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD |
| Processor | LSI LSISAS3408 |
| Interfaces | 2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| Features | Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), FastPath, SafeStore |
| Compliant Standards | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| OS Required | SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi) |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Designed For | Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST50 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
