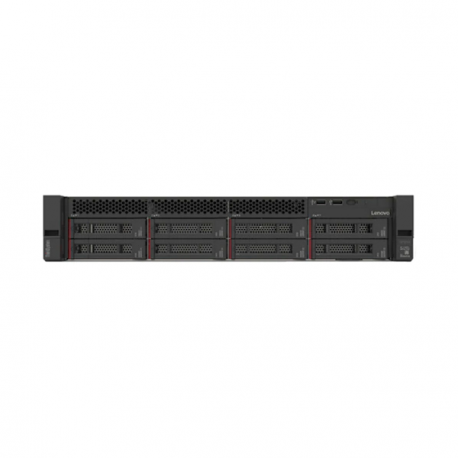

Lenovo ThinkSystem SR655 7Z01 - Server - rack-mountable - 2U - 1-way - 1 x EPYC 7252P / 2.8 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - AST2500 - no OS - monitor: none
Lenovo ThinkSystem SR655 7Z01 - Server - rack-mountable - 2U - 1-way - 1 x EPYC 7252P / 2.8 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - AST2500 - no OS - monitor: none
Ražotājs
•LENOVO
Ražotāja kods
•7Z01A04AEA
Artikuls
•2829816
Pakas svars
•35.4 kg
Type
Server
Product Form Factor
Rack-mountable - 2U
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability
1-way
Hot-Swap Bays Qty
8
Localisation
Region: EMEA
CPU
AMD EPYC 7252P
Clock Speed
2.8 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
1
Installed Size
32 GB / 1 TB (max)
Technology
DDR4 SDRAM - ECC
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
16 (Total) / 15 (empty)
Features
Registered, 8-channel memory architecture, TruDDR4, Patrol Scrubbing, Demand Scrubbing
Configuration Features
1 x 32 GB
Type
No HDD
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
ThinkSystem RAID 930-8i
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Buffer Size
2 GB
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Type
No optical drive
Monitor Type
None.
Graphics Processor
ASPEED AST2500
Video Memory
512 MB
Bays
8 (total) / 8 (free) x hot-swap 2.5"
Slots
1 (total) / 0 (free) x PCIe 4.0 x8 - low-profile (for internal storage controller) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 2 (total) / 2 (free) x PCIe 4.0 x8 ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
Interfaces
1 x serial - DB-9 ¦ 3 x USB 3.1 Gen 1 (2 front, 1 rear) ¦ 1 x VGA ¦ 1 x management - RJ-45
Included Accessories
6 performance fans, slide tool-less rail kit
Compliant Standards
TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, CCC, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, EAC, GB 4943.1, BIS, NOM-019, EK1-ITB2000, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 55032 Class A, CISPR 32 Class A, TP TC 004/2011, TP TC 020/2011, IEC/UL 60950-1, IEC 60950-1 (CB Certificate and CB Test Report)
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
750 Watt
80 PLUS Certification
80 PLUS Platinum
OS Provided
No operating system
ENERGY STAR Certified
Yes
ENERGY STAR Version
3.0
Service & Support
Limited warranty - 3 years - on-site - response time: next business day
Width
44.5 cm
Depth
76.5 cm
Height
8.6 cm
Weight
35.4 kg
