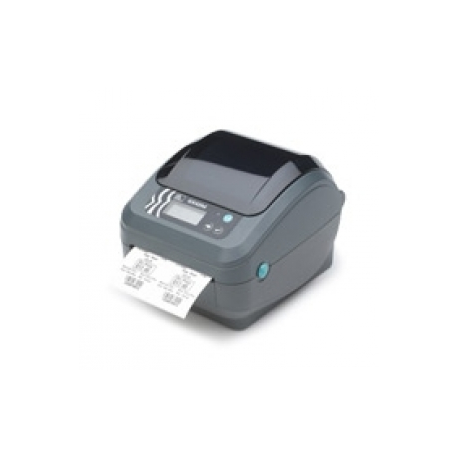

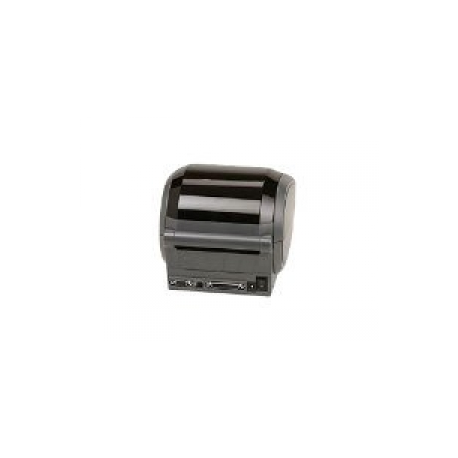

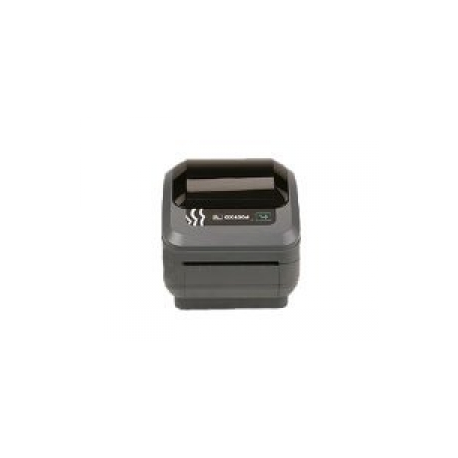

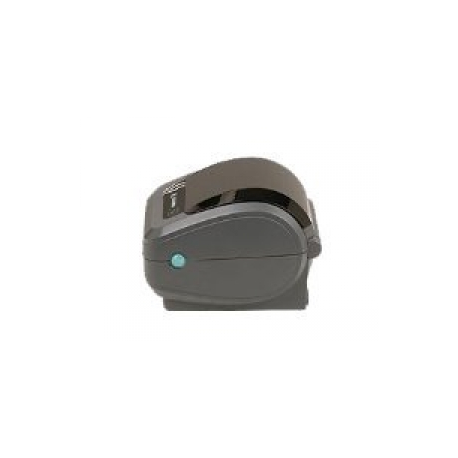

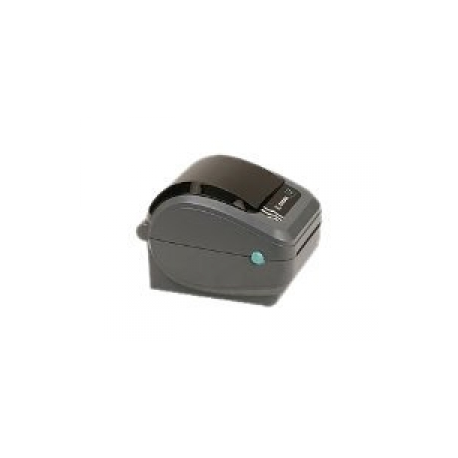

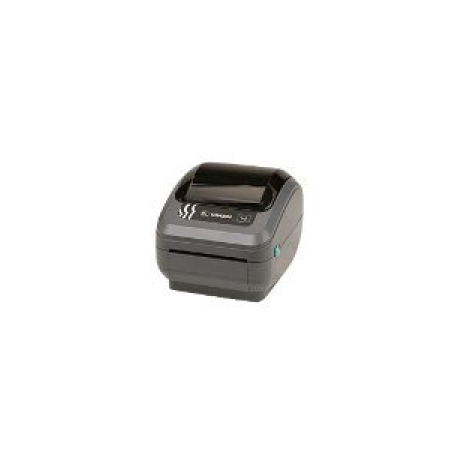

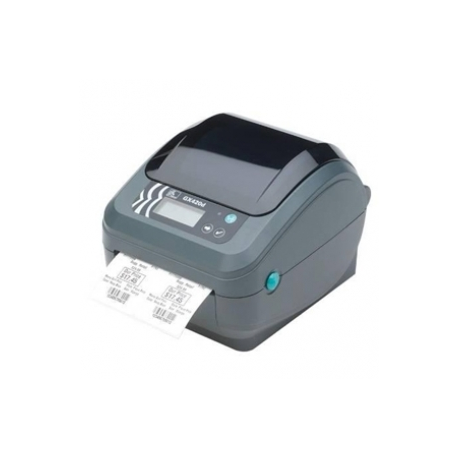

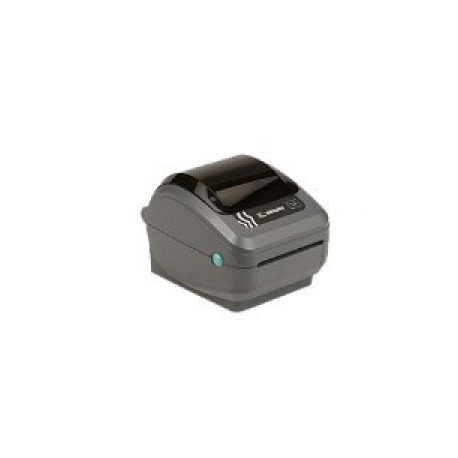

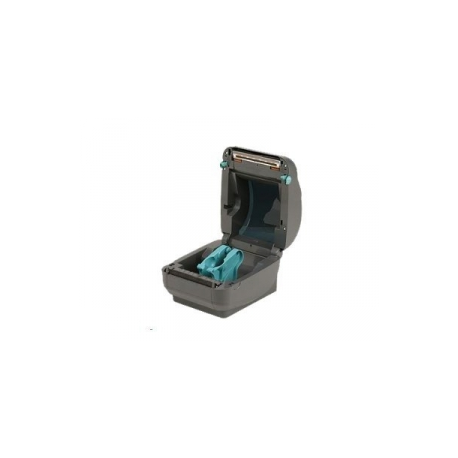

Zebra GX420d - Label printer - direct thermal - Roll (10.8cm) - 203 dpi - up to 152 mm / sec - USB, LAN, serial - cutter
Zebra GX420d - Label printer - direct thermal - Roll (10.8cm) - 203 dpi - up to 152 mm / sec - USB, LAN, serial - cutter
Ražotājs
•ZEBRA
Ražotāja kods
•GX42-202422-000
Artikuls
•84106
Intrastat
•84433210
Pakas svars
•3.2 kg
Zebra GX Series GX420d - Label printer - thermal paper - Roll (10.8cm) - 203 dpi - up to 152 mm/sec - USB, LAN, serial
Printer Type
Label printer - direct thermal - monochrome
Print Speed
Up to 152 mm/sec - B/W - 203 dpi - Roll (10.8cm)
Connectivity Technology
Wired
Interface
USB, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EPL2
Cutter
Yes
Fonts Included
1 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Japanese Post, MacroPDF417, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A
Printer Features
Adjustable Media Sensor (AMS)
RAM Installed (Max)
8 MB
Technology / Form Factor
SDRAM
Flash Memory
4 MB
Media Type
Labels, continuous forms, tag stock
Max Media Size
Roll (10.8cm)
Min Media Size (Custom)
19 mm x 9.7 mm
Max Media Size (Custom)
108 mm x 991 mm
Media Sizes
Roll (10.8cm)
Max Printing Width
104 mm
Media Thickness Range
0.08 mm - 0.2 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 38 mm
Media Feeders
1 x manual - 1 roll - Roll (10.8cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Data Link Protocol
Ethernet, Fast Ethernet
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB ¦ 1 x LAN - RJ-45
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
TUV, VCCI, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, CCC, FCC Part 15
Power Device
Power adapter - external
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Min Operating Temperature
5 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90%
Width
17.1 cm
Depth
20.9 cm
Height
15.2 cm
Weight
1.4 kg
