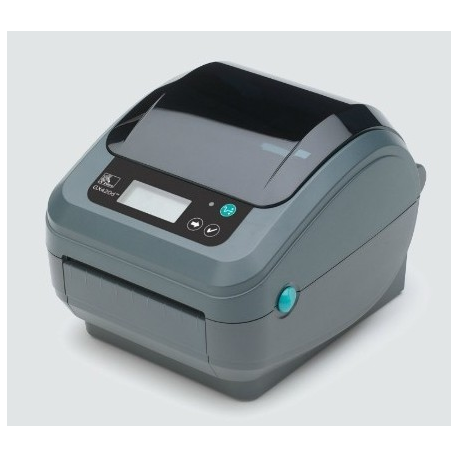

Zebra GX420d - Label printer - direct thermal - Roll (10.8cm) - 203 dpi - up to 152 mm / sec - USB, LAN, serial
Ražotājs
•ZEBRA
Ražotāja kods
•GX42-202420-150
Artikuls
•1912160
Intrastat
•84433210
Pakas svars
•1.4 kg
USBSeriālais portsEthernetTiešā pārnese203 dpi104 mm
Printer Type
Label printer - direct thermal - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 152 mm/sec - B/W - 203 dpi - Roll (10.8cm)
Connectivity Technology
Wired
Interface
USB, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EPL2
Features
Realtime clock
Fonts Included
21 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Plessey, MacroPDF417, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A, Standard 2 of 5
Printer Features
Adjustable Media Sensor (AMS)
RAM Installed (Max)
8 MB
Technology / Form Factor
SDRAM
Flash Memory
64 MB (installed) / 68 MB (max)
Media Type
Labels, continuous forms, receipt labels, tag labels, die cut labels, fanfold labels
Max Media Size
Roll (10.8cm)
Min Media Size (Custom)
19 mm x 9.7 mm
Max Media Size (Custom)
108 mm x 991 mm
Media Sizes
Roll (1.9 - 10.8 cm)
Max Printing Width
104 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.2 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 12.7 mm, 37.1 mm
Media Feeders
1 x manual - 1 roll - Roll (10.8cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
TUV, VCCI, C-Tick, EN 61000-3-2, IEC 60950, EN55024, EN55022 Class B, CB, FCC Part 15 B, CCC, IRAM, AAMI
Power Device
Power adapter - external
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
ZebraDesigner, ZebraDesigner Pro, ZebraNet Bridge Enterprise, Zebra Universal Driver, ZebraNet Utilities 7.0
Service & Support
Limited warranty - 1 year
Min Operating Temperature
5 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
17.1 cm
Depth
20.9 cm
Height
15.2 cm
Weight
1.4 kg
Weight (Shipping)
3.2 kg
Zebra - Feed switch - for Zebra GX420d; GK Series GK420dKods: 105934-003
Zebra - Nameplate - for GX Series GX420dKods: 105934-062
Zebra - Upper gap sensor - for Zebra GX420d; GK Series GK420dKods: P1027135-001
Zebra - 203 dpi - printhead - for Zebra GX420d; GK Series GK420dKods: 105934-037
