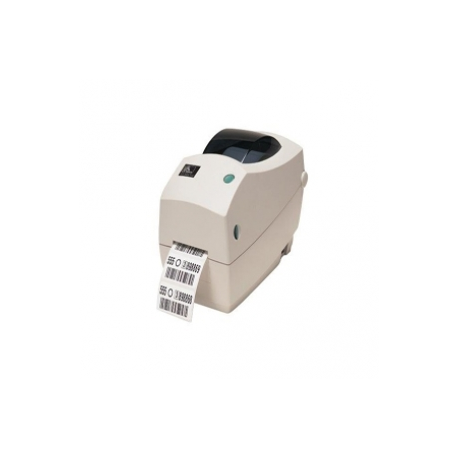

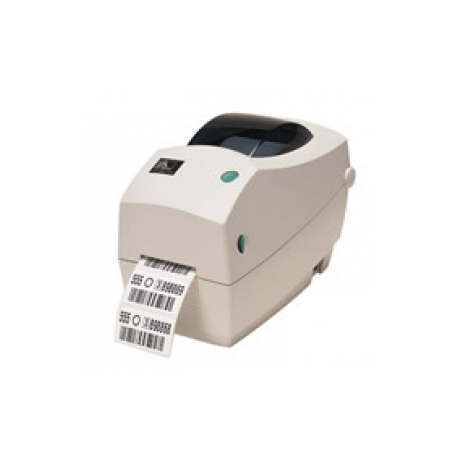

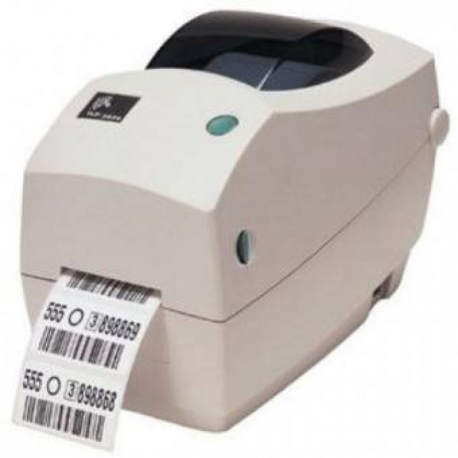

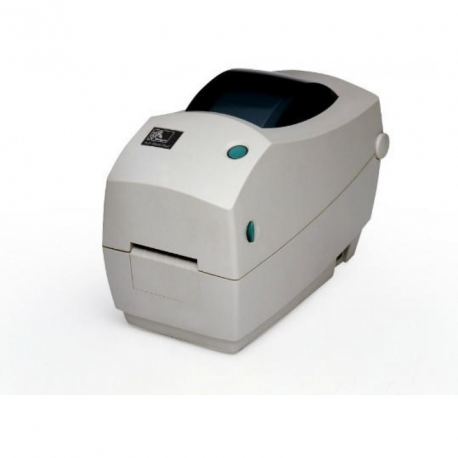

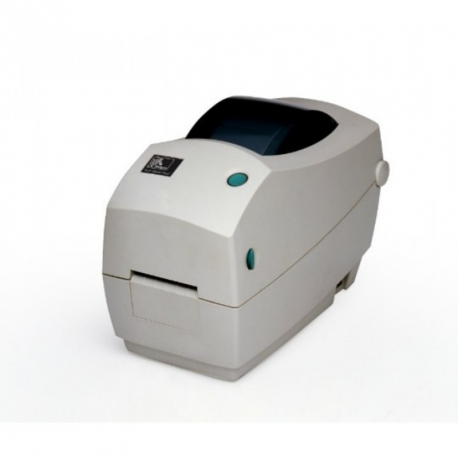

Zebra TLP 2824 Plus - Label printer - thermal transfer - Roll (6 cm) - 203 dpi - up to 102 mm / sec - LAN - cutter - cutter
Zebra TLP 2824 Plus - Label printer - thermal transfer - Roll (6 cm) - 203 dpi - up to 102 mm / sec - LAN - cutter - cutter
Ražotājs
•ZEBRA
Ražotāja kods
•282P-101522-040
Artikuls
•467887
Intrastat
•84433210
Pakas svars
•2.8 kg
Zebra TLP 2824 Plus - Label printer - thermal transfer - Roll (6 cm) - 203 dpi - up to 102 mm/sec - LAN - cutter
Printer Type
Label printer - thermal transfer - monochrome
Print Speed
Up to 102 mm/sec - max speed - 203 dpi
Built-in Devices
Cutter
Connectivity Technology
Wired
Interface
LAN
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL II, EPL2, EPL
Features
Realtime clock, cutter
Cutter
Yes
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, Japanese Post, EAN-14, Code 128B, Code 128C, German Post, MSI-3, Code 128A, GS1 DataBar Omnidirectional
RAM Installed (Max)
8 MB
Flash Memory
4 MB
Media Type
Labels, continuous forms, perforated thermal paper, receipt paper, fanfold paper, tag stock
Max Media Size
Roll (6 cm)
Max Media Size (Custom)
60 mm
Media Sizes
Roll (6 cm)
Max Printing Width
56 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.18 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 38 mm
Media Feeders
1 x manual - 1 roll - Roll (6 cm)
Networking
Print server
Data Link Protocol
Ethernet, Fast Ethernet
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
UL, VCCI, C-Tick, NOM, FCC, IRAM
Power Device
Power adapter - external
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Software Included
Drivers & Utilities, ZebraDesigner
Min Operating Temperature
5 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90%
Width
13.5 cm
Depth
24.1 cm
Height
17.8 cm
Weight
1.6 kg
