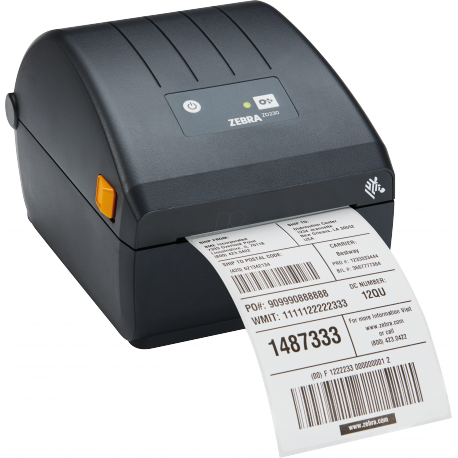

Zebra ZD230 - Label printer - direct thermal - Roll (12.7 cm) - 203 dpi - up to 152 mm/sec - USB 2.0, Bluetooth 4.1, Wi-Fi(ac) - cutter
Zebra ZD230 - Label printer - direct thermal - Roll (12.7 cm) - 203 dpi - up to 152 mm/sec - USB 2.0, Bluetooth 4.1, Wi-Fi(ac) - cutter
Ražotājs
•ZEBRA
Ražotāja kods
•ZD23042-D2ED02EZ
Artikuls
•1766346
Intrastat
•84433210
Pakas svars
•1.1 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•20.03.2026
Printer Type
Label printer - direct thermal - monochrome
Connectivity Technology
Wireless
Interface
USB 2.0, Bluetooth 4.1, Wi-Fi(ac)
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL II, EPL2, Extensible Mark-up Language (XML), EPL
Features
Black Mark sensor, gap sensor
Cutter
Yes
Fonts Included
16 x bitmapped ZPL II
2 x scalable ZPL
5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
128 MB
Technology / Form Factor
SDRAM
Flash Memory
128 MB
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (12.7 cm)
Min Media Size (Custom)
25.4 mm
Max Media Size (Custom)
112 mm
Media Sizes
Roll (2.54 - 11.2 cm)
Max Printing Width
104 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.1905 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
12.7 mm, 25.4 mm, 37.1 mm
Media Feeders
1 x manual - 1 roll - Roll (11.2 cm)
Networking
Print server
Connections
1 x USB 2.0 - 4 pin USB Type B
Features
Adjustable black line sensor
Compliant Standards
MFI, FCC Class B certified, VCCI, C-Tick, BSMI, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893
Power Device
Power supply
Voltage Required
AC 100-240 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Link-OS
ENERGY STAR
Yes
Service & Support
Limited warranty - 1 year
Min Operating Temperature
4.4 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
17.6 cm
Depth
22 cm
Height
15.1 cm
Weight
1.1 kg
