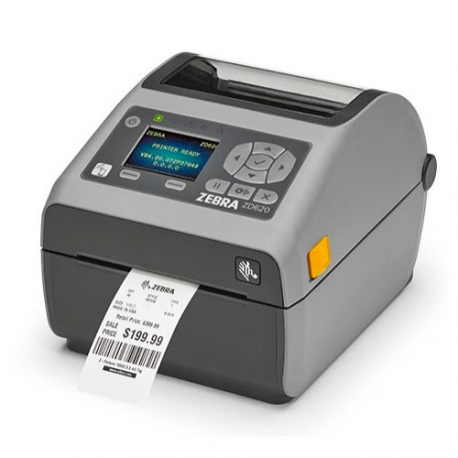

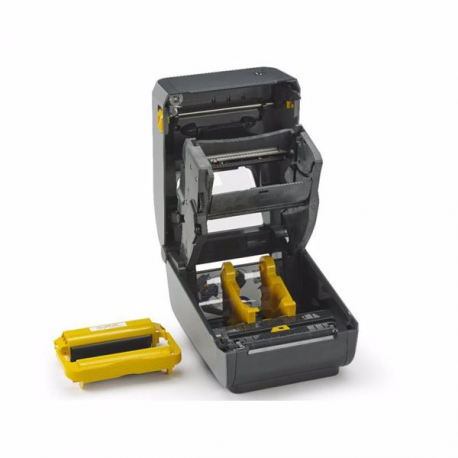

Zebra ZD620 - Label printer - direct thermal - Roll (11.8 cm) - 203 dpi - up to 203 mm/sec - USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1, Bluetooth LE - grey
Ražotājs
•ZEBRA
Ražotāja kods
•ZD62042-D3EL02EZ
Artikuls
•3098797
Intrastat
•84433210
Pakas svars
•2.5 kg
USBSeriālais portsBluetoothEthernetBezvadu tīklsTiešā pārnese203 dpi104 mm
Printer Type
Label printer - direct thermal - monochrome
Enclosure Colour
Grey
Localisation
United Kingdom, Europe
Print Speed
Up to 203 mm/sec - B/W - 203 dpi
Connectivity Technology
Wireless
Interface
USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1, Bluetooth LE
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL II, EPL2, ZBI, EZPL, Extensible Mark-up Language (XML)
Features
Label Taken Sensor (LTS), realtime clock, linerless, Black Mark sensor, gap sensor
Fonts Included
16 x bitmapped ZPL II
2 x scalable ZPL
5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
256 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (11.8 cm)
Min Media Size (Custom)
15 mm
Max Media Size (Custom)
118 mm
Media Sizes
Roll (11.8 cm)
Max Printing Width
104 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.1905 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm
Media Feeders
1 x manual - 1 roll - Roll (11.8 cm)
Networking
Print server
Connections
1 x USB 2.0 - 4 pin USB Type B
1 x USB host - 4 pin USB Type A
1 x LAN - RJ-45
1 x RS-232 - 9 pin D-Sub (DB-9)
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893
Power Device
Power supply
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Drivers & Utilities, Link-OS
ENERGY STAR
Yes
Min Operating Temperature
4.4 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
20.2 cm
Depth
26.7 cm
Height
19.2 cm
Weight
2.5 kg
Zebra - Bezel (Serial and Ethernet) - rearKods: P1080383-439
Zebra - Printer platen roller - for Zebra ZD620; ZD420 Series ZD420tKods: P1080383-223
Zebra - Platen roller 203 dpiKods: P1080383-413
Zebra - Platen rollerKods: P1080383-414
Zebra - Printer cable - DB-9 to DB-9 - 1.8 m - for GK Series GK420dKods: G105850-003
Zebra - Platen roller bearing kit - left and right (pack of 20)Kods: P1080383-224
Zebra - Rubber feet (pack of 4)Kods: P1080383-021
Zebra - Head up sensorKods: P1080383-011
Zebra - Bezel, standard - frontKods: P1080383-412
Zebra - Media windowKods: P1080383-400
Zebra - Ribbon core adaptersKods: P1080383-231
Zebra - Cover open sensorKods: P1080383-044
Zebra - Media window - for Zebra ZD620Kods: P1080383-200
Zebra - Latch assemblyKods: P1080383-407
Zebra - Media sensor (blackline sensor) - lowerKods: P1080383-410
Zebra - Printer mounting bracketKods: P1080383-423
Zebra - Nameplate (without LCD)Kods: P1080383-425
Zebra - Dispenser front bezel - for Zebra ZD420Kods: P1080383-018
Zebra - Front bezel dispenser - for Zebra ZD420dKods: P1080383-418
Zebra - Packaging kitKods: P1080383-232
Zebra - Shipping packKods: P1080383-424
Zebra - Replacement key (pack of 5)Kods: P1080383-406
Zebra - Bezel, linerless (includes take label sensor) - frontKods: P1080383-434
Zebra - Control panel PCBA (without LCD)Kods: P1080383-208
Zebra - Battery base housing - for Zebra ZD420d, ZD620d, ZD621dKods: P1080383-601
Zebra - Battery base housing - for Zebra ZD420c, ZD420t, ZD620tKods: P1080383-600
Zebra - Printer upgrade kit - for Zebra ZD410Kods: P1079903-033
Zebra - Cover assembly - for Zebra ZD620Kods: P1080383-427
Zebra - Cover assemblyKods: P1080383-428
Zebra - Motor assemblyKods: P1080383-221
Zebra - Ethernet and serial combined moduleKods: P1080383-440
Zebra - Linerless media platen roller 300dpiKods: P1080383-436
Zebra - Linerless media platen roller 203dpiKods: P1080383-435
Zebra - Inner lid (without printhead)Kods: P1080383-402
KIT CONTROL PANEL PCBA W/LCD ZD620TKods: P1080383-241
Zebra - Printhead (203 dpi) - for Zebra ZD620Kods: P1080383-415
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Kods: P1079903-026
Zebra - Convert to 203 dpiKods: P1080383-230
Zebra - Convert to 203 dpiKods: P1080383-422
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Kods: P1079903-030
Zebra - Printer cutter module - for ZD420 Series ZD420tKods: P1080383-228
Zebra - 4" cutter - for Zebra ZD420d, ZD620dKods: P1080383-417
Zebra - Power supply - 75 Watt - for Zebra ZD620tKods: P1080383-234
Zebra - Printhead (300 dpi) - for Zebra ZD420Kods: P1080383-416
Zebra - Convert to 300 dpiKods: P1080383-229
Zebra - Convert to 300 dpiKods: P1080383-421
Zebra - Printer label cutter - for Zebra ZD620dKods: P1080383-437
Zebra - Print mechanism 203 dpiKods: P1080383-432
Zebra - Print mechanism 300 dpiKods: P1080383-433
