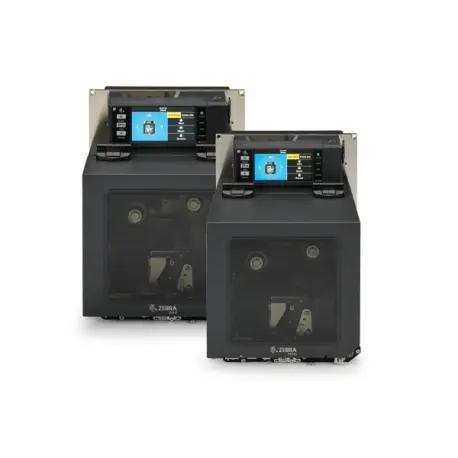

Zebra ZE511 - Label printer - direct thermal / thermal transfer - Roll (2.54 - 17 cm) - 203 dpi - up to 457 mm / sec - USB 2.0, RS232, LAN, Bluetooth 4.1, NFC, USB
Zebra ZE511 - Label printer - direct thermal / thermal transfer - Roll (2.54 - 17 cm) - 203 dpi - up to 457 mm / sec - USB 2.0, RS232, LAN, Bluetooth 4.1, NFC, USB

Ražotājs
•ZEBRA
Ražotāja kods
•ZE51142-R0E0100Z
Artikuls
•1885720
Intrastat
•84433210
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
Europe, United Kingdom
Print Speed
Up to 457 mm/sec - B/W - 203 dpi
Built-in Devices
4.3 inch LCD touch screen, Applicator Interface Port
Connectivity Technology
Wireless
Interface
USB 2.0, RS232, LAN, Bluetooth 4.1, NFC, USB
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II
Fonts
Swiss 721, Bitmap, CG Triumvirate Bold Condensed, PC850, TrueType
Features
Transmissive media sensor, reflective media sensor, realtime clock
Barcodes
Code 11, Code 39, Code 93, Code 128A, Code 128B, Code 128C, UCC/EAN-128, ISBT 128, UPC-A / E, EAN-8, EAN-13, UPC, Plessey, Postnet, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, PLANET, CODABLOCK, PDF417, Code 49, DataMatrix, MaxiCode, QR code, TLC39, Micropdf, RSS-14, Aztec
Printer Features
Right-hand orientation, Multi-level Element Energy Equalizer (E3)
RAM Installed (Max)
512 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Media Type
Continuous labels, die cut labels, black mark labels
Max Media Size
Roll (2.54 - 17 cm)
Max Media Size (Custom)
114 mm
Media Sizes
Roll (2.54 - 17 cm)
Max Printing Width
104 mm
Max Printing Length
3801 m
Media Thickness Range
0.135 mm - 0.254 mm
Roll Core Diameter
25.4 mm
Media Feeders
1 x manual - Roll (2.54 - 17 cm)
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A
Compliant Standards
IEC 62368-1, EN 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, cTUVus, FCC, ICES-003, VCCI, RCM, CCC, EAC, Argentina S-Mark, KCC, BSMI, BIS, INMETRO
Power Device
Power supply - internal
Voltage Required
AC 90-264 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 95% (non-condensing)
Width
24.5 cm
Depth
37.9 cm
Height
30 cm
Weight
15.4 kg
Kit GRITTY HANDLE PLASTIC RH LH 2 pcs of each box, Kods: P1112750-093
Kit Media Guide Posts ZE500-4 RH & LHKods: P1046696-053
Kit, Covers for Option Slots,Kods: P1112750-050
Zebra - Ground contact for print mechanismKods: P1046696-107
KIT SHIELD FOR RIBBON TAKE UPKods: P1046696-131
Zebra - Latch for electronics chassisKods: P1046696-087
Kit Media Guide Posts ZE500-6 RH & LHKods: P1046696-054
Zebra - Latch and deflector right handKods: P1046696-111
Zebra - Latch and deflector left handKods: P1046696-112
Kit Latch & Deflector ZE500-6 LHKods: P1046696-114
Zebra - Idler pulley (pack of 5)Kods: P1046696-130
Zebra - Window for media coverKods: P1046696-080
Zebra - Media guides kitKods: P1046696-061
Zebra - Latch and deflectorKods: P1046696-113
Zebra - Electronics cover long screws (pack of 4)Kods: P1046696-085
Zebra - Latch for print mechanismKods: P1046696-008
Zebra - Media drive beltsKods: P1046696-146
Zebra - Covers for media drive system and ribbon spindle driveKods: P1046696-092
Kit, Ribbon Strip Plate &Kods: P1112750-034
Kit, Ribbon Strip Plate &Kods: P1112750-035
Kit Antenna Replacement N Radi os for TabletopsKods: P1037974-053
Kit Covers for the Control Panel Qty of 3 ZE511 ZE521 RH LHKods: P1112750-076
Zebra - Printer spindle (pack of 2) - for Zebra ZE500-4Kods: P1046696-037
Zebra - Ribbon take-up / supply spindle assembly kitKods: P1046696-038
Zebra - Hinge kit (pack of 2)Kods: P1046696-081
Zebra - Printer roller kit - for Zebra ZE500-4Kods: P1046696-055
Zebra - Printhead cable - for ZE500 Series ZE511, ZE521Kods: P1112750-038
Zebra - Peel bar kitKods: P1046696-074
KIT, UPPER SEGMENTED PINCH ROLLER ASSY, ZE500-6 LHKods: P1046696-058
Zebra - Printer roller kit - for Zebra ZE500-4Kods: P1046696-056
Zebra - Printer roller kit - for Zebra ZE500-6Kods: P1046696-057
Kit, PCBA for PrintheadKods: P1112750-036
Zebra - Peel bar kitKods: P1046696-075
Kit, PCBA for PrintheadKods: P1112750-037
Kit, Pivot Bar and ToggleKods: P1112750-023
Kit, Pivot Bar and ToggleKods: P1112750-024
Kit Peel Bracket Assembly ZE511 RH LHKods: P1112750-077
Kit Peel Bracket Assembly ZE521 RH LHKods: P1112750-078
Zebra - Hardware kitKods: P1046696-129
Kit Peel Bracket Assy 4in, RH LH, ZE500-4 ZE511, removable with springKods: P1046696-161
Kit Peel Bracket Assy 6in, RH LH, ZE500-6 ZE521, removable with springKods: P1046696-162
Kit Packaging for Shipping the Printer ZE511 RH LHKods: P1112750-069
Kit Packaging for Shipping the Printer ZE521 RH LHKods: P1112750-085
Kit, Replacement RFID CablesKods: P1112750-047
Zebra - Cable kitKods: P1112750-048
Kit Platen Pinch and Peel Rollers ZE511 RH LHKods: P1112750-039
Kit Platen Pinch and Peel Rollers ZE521 RH LHKods: P1112750-040
Zebra - Media drive pulleys (300 dpi)Kods: P1046696-128
Zebra - Media drive pulleys (203 dpi)Kods: P1046696-127
Zebra - Couplers for media rollersKods: P1046696-102
Kit Printhead 203 dpi ZE511 RH LHKods: P1112750-009
Zebra - 203 dpi - printhead - for ZE500 Series ZE511Kods: P1112750-086
Kit Convert 300dpi to 203dpi ZE511 RH LHKods: P1112750-015
Zebra - Couplers for media rollersKods: P1046696-103
Zebra - Print server - 10 / 100 Ethernet - for ZT400 Series ZT410, ZT420Kods: P1058930-074
Zebra - Kit cover for extrusionKods: P1046696-093
Kit Convert 203dpi to 300dpi ZE511 RH LHKods: P1112750-014
Kit Printhead 300 dpi ZE511 RH LHKods: P1112750-010
Kit, Optimized Rotated Barcode Printhead 300dpi, ZE511 RH LHKods: P1112750-095
Kit Convert 300dpi to 203dpi ZE521 RH LHKods: P1112750-018
Zebra - 203 dpi - printhead - for Zebra ZE521Kods: P1112750-012
Kit Convert 203dpi to 300dpi ZE521 RH LHKods: P1112750-017
Zebra - 300 dpi - printhead - for Zebra ZE521Kods: P1112750-013
Kit Media Drive System 203dpi ZE511 ZE521 LHKods: P1112750-061
Kit Media Drive System 300dpi and 600dpi ZE511 ZE521 RHKods: P1112750-060
Kit Media Drive System 203dpi ZE511 ZE521 RHKods: P1112750-059
Kit Media Drive System 300dpi and 600dpi ZE511 ZE521 LHKods: P1112750-062
Zebra OneCare, Essential,Kods: Z1A2-ZE5X1-3C0
Zebra - Main logic boardKods: P1112750-041
Kit, Main Logic Board, ZE511, ZE521, RH LH EMEA ONLY Kods: P1112750-090
