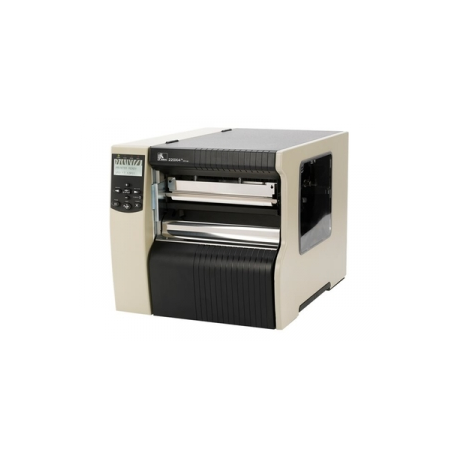

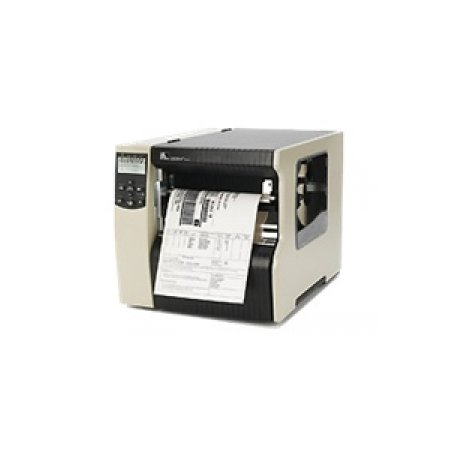

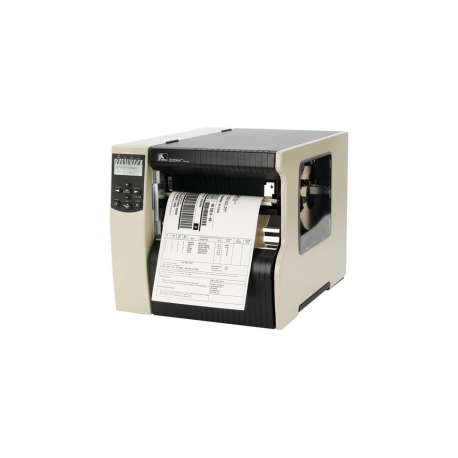

Zebra 220Xi4 - Label printer - direct thermal / thermal transfer - Roll (22.4 cm) - 203 dpi - up to 254 mm / sec - parallel, USB, LAN, serial, Wi-Fi - cutter
Ražotājs
•ZEBRA
Ražotāja kods
•220-8KE-00103
Artikuls
•1009804
Intrastat
•84433210
Pakas svars
•38 kg
Ražotāja cena
•11945.01 €
USBParalēlais portsSeriālais portsEthernetBezvadu tīklsNogriezējsTiešā pārneseTermālpārnese203 dpi
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 254 mm/sec - max speed - 203 dpi
Built-in Devices
Status LCD
Connectivity Technology
Wireless
Interface
Parallel, USB, LAN, serial, Wi-Fi
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Features
Realtime clock
Display Resolution
240 x 128
Cutter
Yes
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
Printer Features
XML-enabled printing
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
8 MB (installed) / 64 MB (max)
Media Type
Labels, continuous forms, fanfold paper, die cut labels
Max Media Size
Roll (22.4 cm)
Min Media Size (Custom)
108 mm
Max Media Size (Custom)
224 mm x 3810 mm
Media Sizes
Roll (10.8cm), Roll (22.4 cm)
Max Printing Width
216 mm
Max Printing Length
3810 mm
Media Thickness Range
0.076 mm - 0.305 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm
Media Feeders
1 x manual - 1 roll - Roll (22.4 cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server and ZebraNet b/g Print Server
Connections
1 x parallel - 36 PIN Centronics ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45
Included Accessories
Cutter, cutter catch tray
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, CCC, IEC 60950-1, KCC, GOST-R, S Mark, cTUVus
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Drivers & Utilities
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
40.16 cm
Depth
51.75 cm
Height
39.37 cm
Weight
32.7 kg
Zebra - Rewind roller adjustment plateKods: P1006105
Zebra - Printhead mounting screw (pack of 5)Kods: P1083320-112
Zebra - Power cableKods: 34516-010
KIT COVERS CONTROL PANEL Xi4Kods: P1007546
Zebra - Rewind drive beltKods: P1006072
KIT HARDWARE RIBSPLYSPIND XI4Kods: P1006063
Zebra - Printhead open sensor kitKods: P1006137
Zebra - Port cover kitKods: P1006119
Zebra - Media windowKods: P1006522
Zebra - Media window for standard doorKods: P1006035
Xi4 Printer Accessories, KIT MEDIA GUIDE Assembly 140XI4Kods: P1006107
Zebra - Take label sensorKods: P1006136
Zebra - Cable kitKods: P1006156
Xi4 Printer Accessories, KIT RIBBON LOW SENSOR Xi4Kods: P1006139
PCB FOR CUTTER, 110XI4Kods: P1006160
Xi4 Printer Accessories, KIT MEDIA LOW SENSOR Xi4Kods: P1006138
Kit Drive Linkage Cutter Xi4Kods: P1006081
Zebra - Kit reflective sensor (black mark)Kods: P1006135
KIT PCB/SENSOR FOR CUTTER XI4Kods: P1018261
Zebra - Linkage for cutterKods: P1018259
KIT MOTOR FOR CUTTER XI4Kods: P1018258
Zebra - Electronic cover kitKods: P1006034
Zebra - Print mechanism hardwareKods: P1006146
Zebra - Media cover bi-fold doorKods: P1006045
Zebra - Media cover bi-fold doorKods: P1006044
Zebra - Media rewind plate kitKods: G22382M
Zebra - Media supply spindleKods: G22253M
Zebra - Control panelKods: P1006033
Zebra - Control panelKods: P1114803
Zebra - Kit DC power supplyKods: P1040670
Zebra - Applicator interfaceKods: P1007561
Zebra - 203 dpi - printhead - for Zebra 140Xi4Kods: P1004234
Zebra - 203 dpi - printhead - for Zebra 110Xi4Kods: P1004230
Zebra - Black - 300 dpi - printhead - for Zebra 110Xi4Kods: P1004232
Zebra - Media rewind option kitKods: P1008483
Zebra - 600 dpi - printhead - for Zebra 110Xi4Kods: P1004233
Zebra - 203 dpi - printhead - for Zebra 220Xi4Kods: P1004238
Zebra - 300 dpi - printhead - for Zebra 220Xi4Kods: P1004239
Zebra - Main logic board 8MB kitKods: P1053360-016
Zebra - Main logic boardKods: P1053360-017
Zebra - Printer upgrade kit - for Xi Series 220Xi4Kods: P1018257
