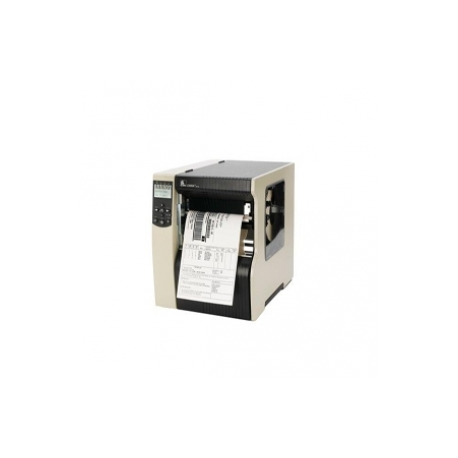

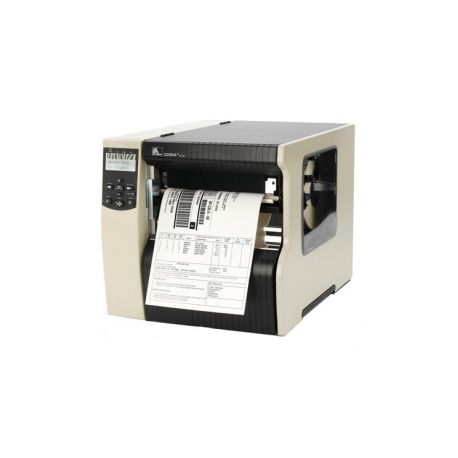

Zebra 220Xi4 - Label printer - direct thermal / thermal transfer - Roll (22.4 cm) - 300 dpi - up to 151 mm / sec - parallel, USB, LAN, serial, Wi-Fi - tear bar
Ražotājs
•ZEBRA
Ražotāja kods
•223-8KE-00003
Artikuls
•674938
Intrastat
•84433210
Pakas svars
•32.7 kg
USBParalēlais portsSeriālais portsEthernetBezvadu tīklsTiešā pārneseTermālpārnese300 dpi
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 151 mm/sec - max speed - 300 dpi
Built-in Devices
Status LCD, tear bar
Connectivity Technology
Wireless
Interface
Parallel, USB, LAN, serial, Wi-Fi
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Fonts
CG Triumvirate Bold Condensed
Features
Fixed gap/bar media sensor, realtime clock, tear bar
Display Resolution
240 x 128
Fonts Included
1 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Code 128B, Code 128C, MSI-3, Code 128A, Standard 2 of 5
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
8 MB
Media Type
Labels, continuous forms, fanfold paper, tag stock, die cut labels
Max Media Size
Roll (22.4 cm)
Min Media Size (Custom)
108 mm
Max Media Size (Custom)
224 mm
Media Sizes
Roll (10.8cm), Roll (22.4 cm)
Max Printing Width
216 mm
Max Printing Length
3810 mm
Media Thickness Range
0.076 mm - 0.305 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm
Media Feeders
1 x manual - 1 roll - Roll (22.4 cm)
Networking
Print server - internal
Network Controller Name
ZebraNet 10/100 Print Server and ZebraNet b/g Print Server
Data Link Protocol
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g
Compliant Standards
IEEE 802.11b, IEEE 802.11g
Expansion Slots
Memory
Connections
1 x parallel - 36 PIN Centronics ¦ 1 x serial - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45
Included Accessories
Bi-fold door, label roll hanger
Features
Paper sensor, clear door
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Drivers & Utilities
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
40.2 cm
Depth
51.8 cm
Height
39.4 cm
Weight
32.7 kg
Zebra 1ROLL Z-PERF 1000D.102X152 MMKods: 87809
Zebra - Rewind roller adjustment plateKods: P1006105
Zebra - Printhead mounting screw (pack of 5)Kods: P1083320-112
Zebra - Power cableKods: 34516-010
KIT COVERS CONTROL PANEL Xi4Kods: P1007546
Zebra - Rewind drive beltKods: P1006072
KIT HARDWARE RIBSPLYSPIND XI4Kods: P1006063
Zebra - Printhead open sensor kitKods: P1006137
Zebra - Port cover kitKods: P1006119
Zebra - Media windowKods: P1006522
Zebra - Media window for standard doorKods: P1006035
Xi4 Printer Accessories, KIT MEDIA GUIDE Assembly 140XI4Kods: P1006107
Zebra - Take label sensorKods: P1006136
Zebra - Cable kitKods: P1006156
Xi4 Printer Accessories, KIT RIBBON LOW SENSOR Xi4Kods: P1006139
PCB FOR CUTTER, 110XI4Kods: P1006160
Xi4 Printer Accessories, KIT MEDIA LOW SENSOR Xi4Kods: P1006138
Kit Drive Linkage Cutter Xi4Kods: P1006081
Zebra - Kit reflective sensor (black mark)Kods: P1006135
KIT PCB/SENSOR FOR CUTTER XI4Kods: P1018261
Zebra - Linkage for cutterKods: P1018259
KIT MOTOR FOR CUTTER XI4Kods: P1018258
Zebra - Electronic cover kitKods: P1006034
Zebra - Print mechanism hardwareKods: P1006146
Zebra - Media cover bi-fold doorKods: P1006045
Zebra - Media cover bi-fold doorKods: P1006044
Zebra - Media rewind plate kitKods: G22382M
Zebra - Media supply spindleKods: G22253M
Zebra - Control panelKods: P1006033
Zebra - Control panelKods: P1114803
Zebra - Kit DC power supplyKods: P1040670
Zebra - Applicator interfaceKods: P1007561
Zebra - 203 dpi - printhead - for Zebra 140Xi4Kods: P1004234
Zebra - 203 dpi - printhead - for Zebra 110Xi4Kods: P1004230
Zebra - Black - 300 dpi - printhead - for Zebra 110Xi4Kods: P1004232
Zebra - Media rewind option kitKods: P1008483
Zebra - 600 dpi - printhead - for Zebra 110Xi4Kods: P1004233
Zebra - 203 dpi - printhead - for Zebra 220Xi4Kods: P1004238
Zebra - 300 dpi - printhead - for Zebra 220Xi4Kods: P1004239
Zebra - Main logic board 8MB kitKods: P1053360-016
Zebra - Main logic boardKods: P1053360-017
Zebra - Printer upgrade kit - for Xi Series 220Xi4Kods: P1018257
