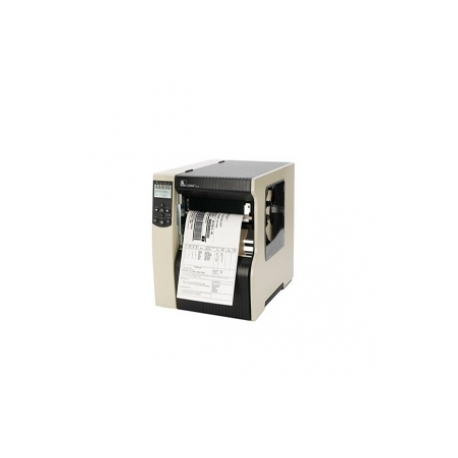

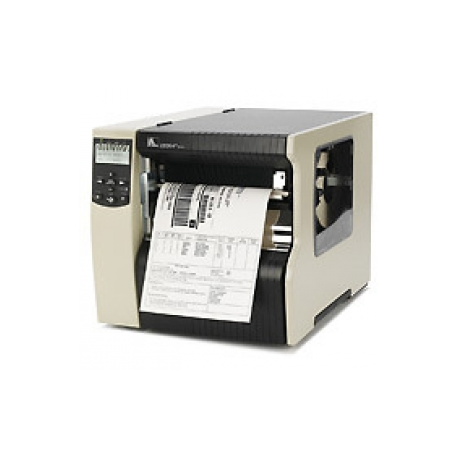

Zebra 220Xi4 - Label printer - thermal transfer - Roll (21.6 cm) - 203 dpi - capacity: 1 roll - parallel, USB, LAN, serial
Ražotājs
•ZEBRA
Ražotāja kods
•220-85E-00103
Artikuls
•467865
Intrastat
•84433210
Pakas svars
•32.7 kg
USBParalēlais portsSeriālais portsEthernetTermālpārnese203 dpi
Printer Type
Label printer - thermal transfer - monochrome
Built-in Devices
Status LCD
Connectivity Technology
Wired
Interface
Parallel, USB, LAN, serial
Max Resolution (B&W)
203 dpi
Image Enhancement Technology
Multi-level Element Energy Equalizer
Language Simulation
ZPL II, Extensible Mark-up Language (XML)
Fonts Included
1 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Code 128B, Code 128C, Code 128A
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
8 MB
Media Type
Labels, continuous forms, fanfold paper
Max Media Size
Roll (21.6 cm)
Max Media Size (Custom)
216 mm x 3810 mm
Media Sizes
Roll (21.6 cm)
Media Thickness Range
0.08 mm - 0.31 mm
Roll Maximum Outer Diameter
81.3 mm
Roll Core Diameter
25.4 mm
Total Media Capacity
1 roll
Media Feeders
1 x manual - 1 roll - Roll (21.6 cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Data Link Protocol
Ethernet, Fast Ethernet
Expansion Slots
Memory
Connections
1 x parallel - 36 PIN Centronics ¦ 1 x RS-232/422/485 - 25 pin D-Sub (DB-25) ¦ 1 x USB - 4 pin USB Type A
Included Accessories
Cutter
Features
Paper sensor
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, CCC, IEC 60950-1, KCC, GOST-R, S Mark, cTUVus
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Software Included
Drivers & Utilities
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85%
Width
40.2 cm
Depth
51.8 cm
Height
39.4 cm
Weight
32.7 kg
Zebra SAM LAB POLYPRO 4000T MATTE 10 1X76MM 100L/R MAX 5 ROLLSKods: SAMPLE5137
Zebra 1ROLL Z-PERF 1000D.102X152 MMKods: 87809
Zebra - Rewind roller adjustment plateKods: P1006105
Zebra - Printhead mounting screw (pack of 5)Kods: P1083320-112
Zebra - Power cableKods: 34516-010
KIT COVERS CONTROL PANEL Xi4Kods: P1007546
Zebra - Rewind drive beltKods: P1006072
KIT HARDWARE RIBSPLYSPIND XI4Kods: P1006063
Zebra - Printhead open sensor kitKods: P1006137
Zebra - Port cover kitKods: P1006119
Zebra - Media windowKods: P1006522
Zebra - Media window for standard doorKods: P1006035
Xi4 Printer Accessories, KIT MEDIA GUIDE Assembly 140XI4Kods: P1006107
Zebra - Take label sensorKods: P1006136
Zebra - Cable kitKods: P1006156
Xi4 Printer Accessories, KIT RIBBON LOW SENSOR Xi4Kods: P1006139
PCB FOR CUTTER, 110XI4Kods: P1006160
Xi4 Printer Accessories, KIT MEDIA LOW SENSOR Xi4Kods: P1006138
Kit Drive Linkage Cutter Xi4Kods: P1006081
Zebra - Kit reflective sensor (black mark)Kods: P1006135
KIT PCB/SENSOR FOR CUTTER XI4Kods: P1018261
Zebra - Linkage for cutterKods: P1018259
KIT MOTOR FOR CUTTER XI4Kods: P1018258
Zebra - Electronic cover kitKods: P1006034
Zebra - Print mechanism hardwareKods: P1006146
Zebra - Media cover bi-fold doorKods: P1006044
Zebra - Control panelKods: P1006033
Zebra - Control panelKods: P1114803
Zebra - Kit DC power supplyKods: P1040670
Zebra - 203 dpi - printhead - for Zebra 140Xi4Kods: P1004234
Zebra - 203 dpi - printhead - for Zebra 110Xi4Kods: P1004230
Zebra - Black - 300 dpi - printhead - for Zebra 110Xi4Kods: P1004232
Zebra - 600 dpi - printhead - for Zebra 110Xi4Kods: P1004233
Zebra - 203 dpi - printhead - for Zebra 220Xi4Kods: P1004238
Zebra - 300 dpi - printhead - for Zebra 220Xi4Kods: P1004239
Zebra - Main logic board 8MB kitKods: P1053360-016
Zebra - Main logic boardKods: P1053360-017
Zebra - Printer upgrade kit - for Xi Series 220Xi4Kods: P1018257
