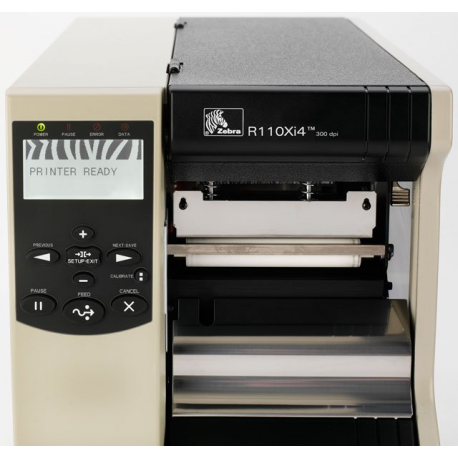

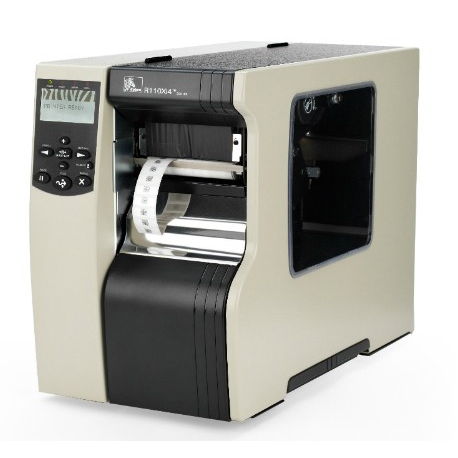

Zebra Xi Series R110Xi4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 305 mm / sec - parallel, USB, LAN, serial - tear bar
Ražotājs
•ZEBRA
Ražotāja kods
•R13-80E-00003-R1
Artikuls
•674943
Intrastat
•84433210
Pakas svars
•22.7 kg
USBParalēlais portsSeriālais portsEthernetTiešā pārneseTermālpārnese300 dpi
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 305 mm/sec - max speed - 300 dpi
Built-in Devices
Status LCD, tear bar, UHF RFID encoder
Connectivity Technology
Wired
Interface
Parallel, USB, LAN, serial
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL II, Extensible Mark-up Language (XML)
Fonts
CG Triumvirate Bold Condensed
Features
Realtime clock, tear bar
Fonts Included
1 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Code 2 of 5, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
8 MB
Media Type
Labels, continuous forms, RFID labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
20 mm
Max Media Size (Custom)
114 mm x 3810 mm
Media Sizes
Roll (2 - 11.4 cm)
Max Printing Width
102 mm
Max Printing Length
3810 mm
Media Thickness Range
0.076 mm - 0.305 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm
Media Feeders
1 x manual - 1 roll - Roll (11.4 cm)
Compliant Standards
EPC Class 1 Generation 2, ISO/IEC 18000-6C
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Data Link Protocol
Ethernet, Fast Ethernet

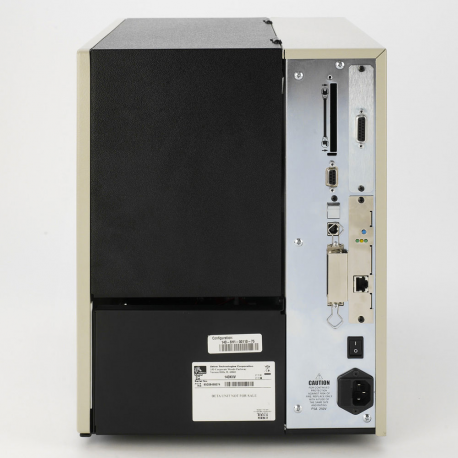

Connections
1 x parallel ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45
Included Accessories
Label roll hanger
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class B certified, C-Tick, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, IEC 60950-1
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Software Included
Drivers & Utilities
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
26.2 cm
Depth
51.8 cm
Height
39.4 cm
Weight
22.7 kg
