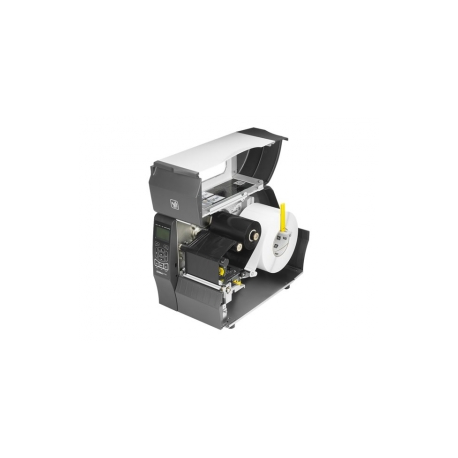

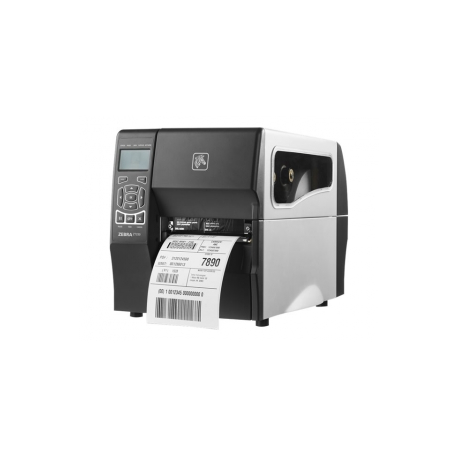

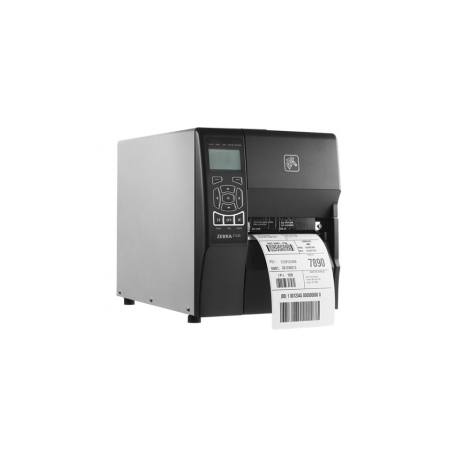

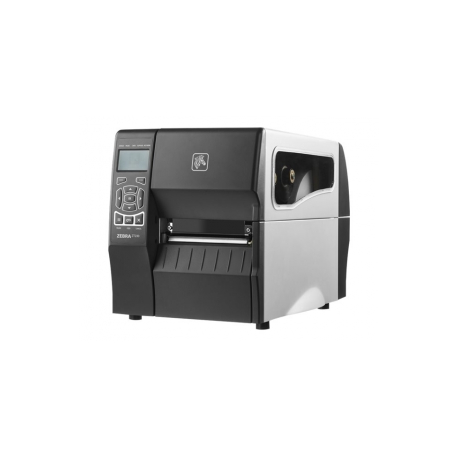

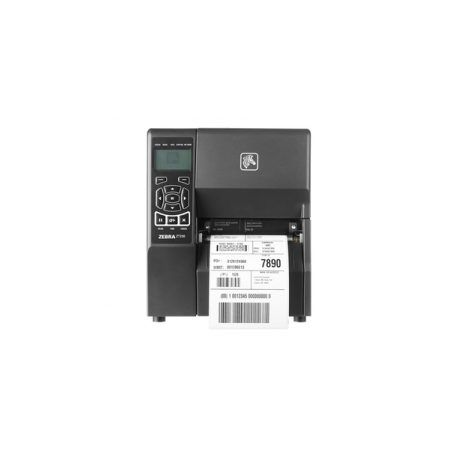

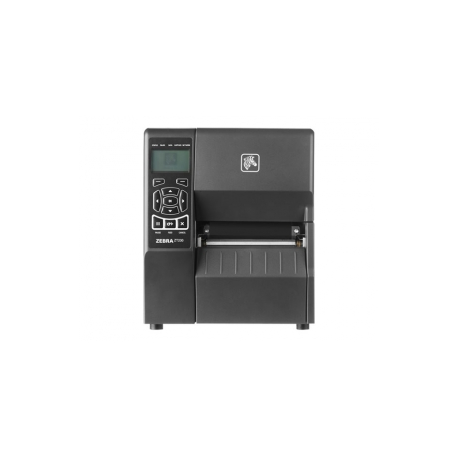

Zebra ZT230 - Label printer - direct thermal - Roll (11.4 cm) - 203 dpi - up to 152 mm / sec - USB, LAN, serial - peeler without liner rewind
Zebra ZT230 - Label printer - direct thermal - Roll (11.4 cm) - 203 dpi - up to 152 mm / sec - USB, LAN, serial - peeler without liner rewind
Ražotājs
•ZEBRA
Ražotāja kods
•ZT23042-D1E200FZ
Artikuls
•621703
Intrastat
•84433210
Pakas svars
•9.1 kg
Zebra ZT200 Series ZT230 - Label printer - thermal paper - Roll (11.4 cm) - 203 dpi - up to 152 mm/sec - USB, LAN, serial - peeler without liner rewind
Printer Type
Label printer - direct thermal - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 152 mm/sec - B/W - 203 dpi - Roll (11.4 cm)
Built-in Devices

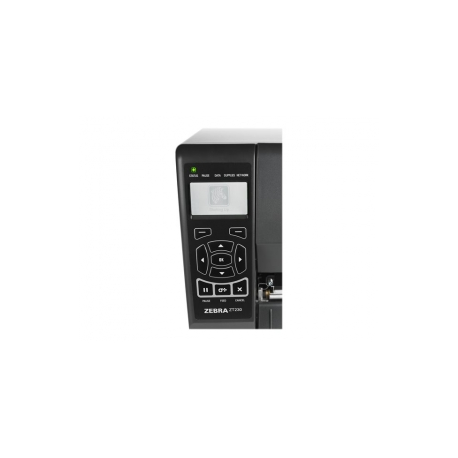

Status LCD, peeler without liner rewind
Connectivity Technology
Wired
Interface
USB, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Features
Peeler without liner rewind
Fonts Included
1 x scalable ¦ 7 x bitmapped
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
Printer Features
Zebra Programming Language (ZPL) support, XML-enabled printing, Multi-level Element Energy Equalizer (E3)
Processor
400 MHz
RAM Installed (Max)
128 MB
Technology / Form Factor
SDRAM
Flash Memory
128 MB
Media Type
Labels, continuous paper labels, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
19.4 mm
Max Media Size (Custom)
114 mm x 991 mm
Media Sizes
Roll (1.94 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
3988 mm
Media Thickness Range
0.076 mm - 0.25 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm, 25 mm
Media Feeders
1 x manual - 1 roll - Roll (11.4 cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Data Link Protocol
Ethernet, Fast Ethernet
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB ¦ 1 x LAN
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15 B, CCC, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
47 - 63 Hz
ENERGY STAR
Yes
Service & Support
Limited warranty - 1 year
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
24.2 cm
Depth
43.2 cm
Height
27.7 cm
Weight
9.1 kg
Weight (Shipping)
11.4 kg
