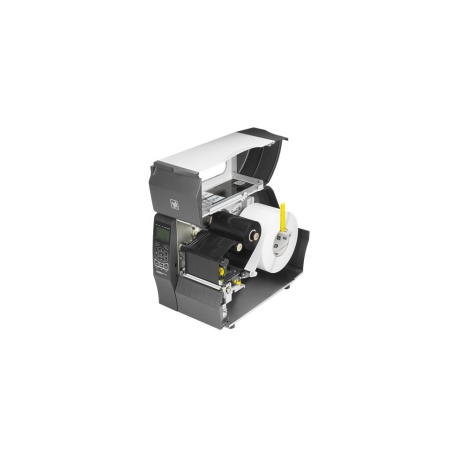

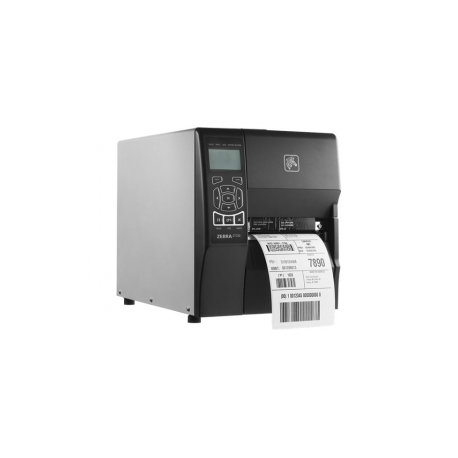

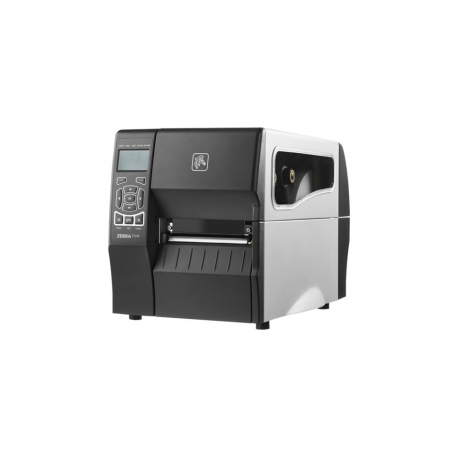

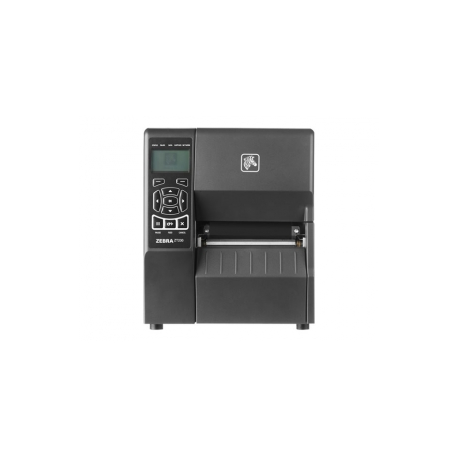

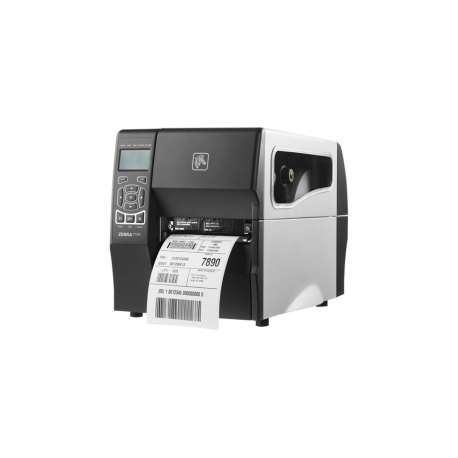

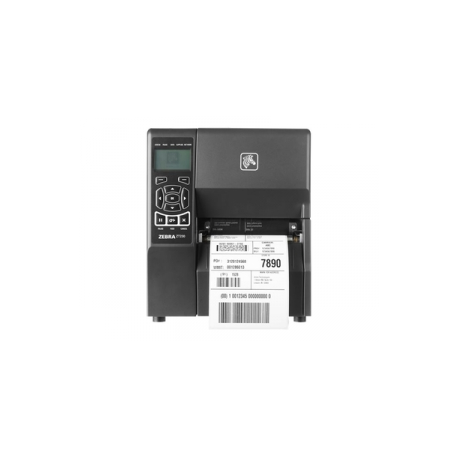

Zebra ZT230 - Label printer - thermal transfer - Roll (11.4 cm) - 300 dpi - up to 152 mm / sec - USB, LAN, serial
Ražotājs
•ZEBRA
Ražotāja kods
•ZT23043-T0E200FZ
Artikuls
•417097
Intrastat
•84433210
Pakas svars
•9.1 kg
USBSeriālais portsEthernetTermālpārnese300 dpi104 mm
Zebra ZT200 Series ZT230 - Uzlīmju printeris - termotransfēra - ruļļa (11,4 cm) - 300 dpi - līdz 152 mm/s - USB, LAN, seriālais
Printer Type
Label printer - thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 152 mm/sec - B/W - 300 dpi - Roll (11.4 cm)
Built-in Devices

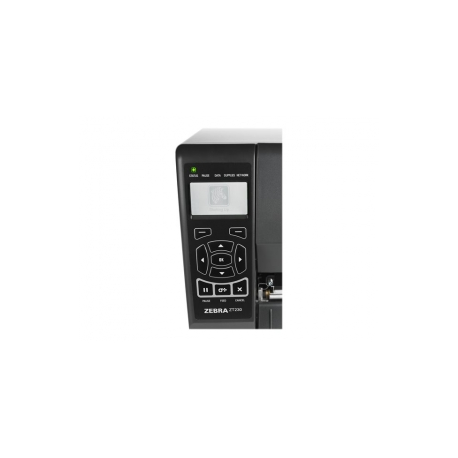

Status LCD
Connectivity Technology
Wired
Interface
USB, LAN, serial
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Fonts Included
1 x scalable ¦ 7 x bitmapped
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
Printer Features
Zebra Programming Language (ZPL) support, XML-enabled printing, Multi-level Element Energy Equalizer (E3)
Processor
400 MHz
RAM Installed (Max)
128 MB
Technology / Form Factor
SDRAM
Flash Memory
128 MB
Media Type
Labels, continuous paper labels, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
19.4 mm
Max Media Size (Custom)
114 mm x 991 mm
Media Sizes
Roll (1.94 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
1854 mm
Media Thickness Range
0.076 mm - 0.25 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm, 25 mm
Media Feeders
1 x manual - 1 roll - Roll (11.4 cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Data Link Protocol
Ethernet, Fast Ethernet
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB ¦ 1 x LAN
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15 B, CCC, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
47 - 63 Hz
ENERGY STAR
Yes
Service & Support
Limited warranty - 1 year
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
24.2 cm
Depth
43.2 cm
Height
27.7 cm
Weight
9.1 kg
Weight (Shipping)
11.4 kg
Zebra 1ROLL Z-PERF 1000D.102X152 MMKods: 87809
Zebra CARDBOARD CORESKods: 15055
CORES/RIBBON SPINDLES ZT200 (QTY 2)Kods: P1037974-012
KIT GROUND CONTACT ZT200 SERIESKods: P1037974-015
Zebra - Front lower panelsKods: P1037974-033
Zebra - Kit front lower panelsKods: P1037990-004
Zebra - Printer cover - for Zebra ZT220, ZT230Kods: P1037974-041
POWER SWITCH ZT200 SERIESKods: P1037974-019
Zebra - Kit head open sensorKods: P1037974-025
Zebra - Media hangerKods: P1037974-027
Zebra - Cutter catch tray - for Zebra ZT220, ZT230Kods: P1037974-037
Zebra - Ribbon sensor kit - for Zebra ZT220, ZT230Kods: P1037974-023
Zebra - Top plate kit - for ZT200 SeriesKods: P1037974-042
KIT MEDIA WINDOW ZT230/ZT210Kods: P1037974-049
Zebra - Dispenser front bezelKods: P1079903-022
Zebra - Ribbon supply spindleKods: P1037974-050
Zebra - Outer media guide kitKods: P1037974-016
Zebra - Printer platen roller - for Zebra ZT220, ZT230Kods: P1037974-028
Zebra - Media dancer kit - for Zebra ZT120, ZT220, ZT230Kods: P1037974-057
Zebra - Take label sensorKods: P1037974-024
Zebra - Reflective sensorKods: P1037974-022
Zebra - Assorted hardwareKods: P1037974-044
Kit Antenna Replacement N Radi os for TabletopsKods: P1037974-053
Zebra - Thermal transfer print mechanismKods: P1037974-056
Zebra - Drive gears kitKods: P1037974-061
Zebra - Peel unit rollerKods: P1037974-039
Zebra - Media sensorKods: P1037974-021
Zebra - Drive gears kitKods: P1037974-029
Zebra - Kit thermal transfer print mechanismKods: P1037974-013
Zebra - Kit toggle barKods: P1037974-014
Zebra - Parallel portKods: P1037974-002
Zebra - Housing for platen rollerKods: P1037974-059
Zebra - Kit electronics coverKods: P1037974-034
Kit Door for LTU ZT230Kods: P1037974-054
Zebra - Printer media coverKods: P1037990-003
Zebra - Printer media cover - for Zebra ZT230Kods: P1037974-032
Kit Static Brush for Cutter ZT200 SeriesKods: P1037974-036
Zebra - Ribbon take up spindleKods: P1037974-051
Zebra - Drive motor kit - for Zebra ZT120, ZT220, ZT230Kods: P1037974-030
Zebra - Packaging kitKods: P1037974-045
Zebra - Packaging kitKods: P1037990-018
Zebra - Drive motor for 203 dpi and 300 dpiKods: P1037974-062
Zebra - Printer clock - for Zebra ZT220, ZT230Kods: P1037974-004
Kit Power Supply ZT200 SeriesKods: P1037974-018
Zebra - Liner take up spindle and motor kitKods: P1037974-040
Zebra - Printer peel option - for Zebra ZT220, ZT230Kods: P1037974-008
Zebra - Ribbon systemKods: P1037990-001
Zebra - Peel unitKods: P1037974-071
Zebra - Ribbon systemKods: P1037974-026
Zebra - Control panelKods: P1037974-031
Zebra - Conversion kit - for Zebra ZT220, ZT230Kods: P1037974-006
Zebra - 203 dpi - printhead - for Zebra ZT220, ZT230Kods: P1037974-010
Kit Main Logic boardKods: P1037974-017
ZebraNet - Print server - 802.11b / g / nKods: P1058930-097C
Zebra - Main logic board - for Zebra ZT220, ZT230Kods: P1037974-068
Zebra - 300 dpi - printhead - for Zebra ZT220, ZT230Kods: P1037974-011
Zebra - Cutter optionKods: P1037974-069
Zebra - Packaging kitKods: P1037974-046
