Eaton 5P 850i - Gen 2 - UPS (rack-mountable) - AC 200 / 208 / 220 / 230 / 240 V - 680 Watt - 850 VA - 1-phase - valve regulated lead-acid (VRLA) - 7 Ah - RS-232, USB - output connectors: 4 - 1U - 19" - black / silver
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 4127840 Intrastat: 84734080 Ražotāja kods: 5P850IRG2
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Colour | Black/silver |
| UPS Technology | Line interactive |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 160 - 294 V |
| Input Voltage Range (Adjustable) | AC 150 - 294 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 47 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 |
| Output Voltage | AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz |
| Power Capacity | 680 Watt / 850 VA |
| Output Waveform | Sinewave |
| Efficiency | 98% |
| Power Factor (PF) | 0.8 |
| Quantity | 4 |
| Technology | Valve regulated lead-acid (VRLA) Lead Acid |
| Voltage Provided | 6 V |
| Capacity | 7 Ah |
| Transfer Time | 13 ms |
| Features | Maintenance free, sealed |
| Remote Management Interface | RS-232, USB |
| Interfaces | 1 x remote power (on/off) - mini terminal block ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x dry contact output |

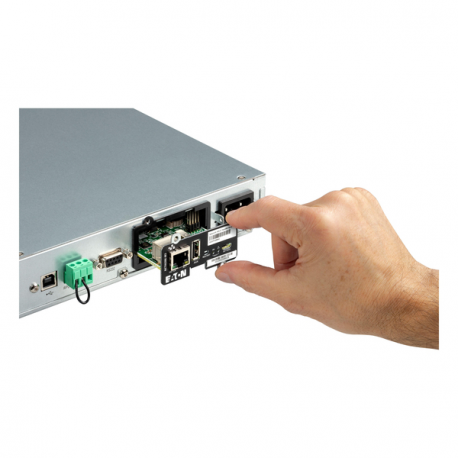

| Expansion Slots | 1 (total) / 1 (free) x Communication slot |
| Included Accessories | Cable locking system |
| Cables Included | USB cable - external ¦ 2 x power cable (IEC) - external |
| Rack Mounting Kit | Included |
| Features | Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), short-circuit protection, hot-swappable batteries, remote reboot, 30A fuse |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, CB, EMC, IEC 62040-3, RoHS, KCC, WEEE, cTUVus, CSA 22.2, LVD, IP20, BIS, FCC Part 15 Class B, CISPR 32 Class B, CM, IEC/EN 61000-3-3, UKCA, UKR, IEC/EN 62040-1, IEC/EN 62040-2, EN IEC 61000-3-2, IEC/EN 62040-3 |
| Service & Support | Limited warranty - electrical components and functions - 3 years ¦ Limited warranty - batteries - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Sound Emission | 35 dB |
| Width | 43.8 cm |
| Depth | 50.9 cm |
| Height | 4.32 cm |
| Weight | 13.7 kg |
