Eaton Ellipse PRO 1600 - UPS - AC 230 V - 1000 Watt - 1600 VA - 9 Ah - USB - output connectors: 8 - 2U - 19"
Eaton Ellipse PRO 1600 - UPS - AC 230 V - 1000 Watt - 1600 VA - 9 Ah - USB - output connectors: 8 - 2U - 19"
Ražotājs
•EATON
Ražotāja kods
•ELP1600FR
Artikuls
•2256048
Intrastat
•84734080
Pakas svars
•11.3 kg
Kopā pieejams (gab.)
•11
Tuvākā piegāde
•26.06.2026
UPS topology
Line-Interactive
Output power capacity
1.6 kVA
Output power
1000 W
Input operation voltage (min)
150 V
Input operation voltage (max)
285 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50 Hz
Emergency Power Off (EPO)
Y
Surge protection
Y
Surge protection features
Fax, Modem, Network, Telephone
AC outlet types
Type E
Power plug
C14 coupler
AC outlets quantity
8 AC outlet(s)
USB 2.0 ports quantity
1
Modem (RJ-11) ports
1
Ethernet LAN (RJ-45) ports
1
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
9 min
Hot-swap battery
N
Automatic battery test
Y
Cold start
Y
Form factor
Tower
Product colour
Black
Rack capacity
2U

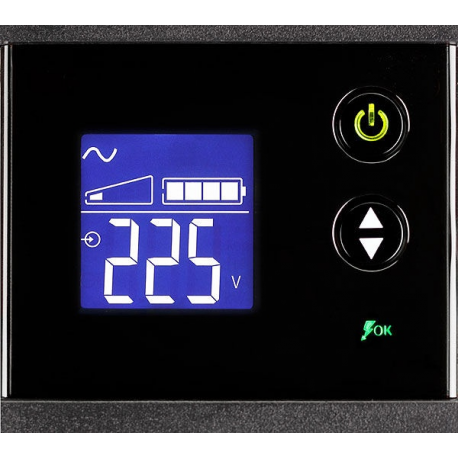

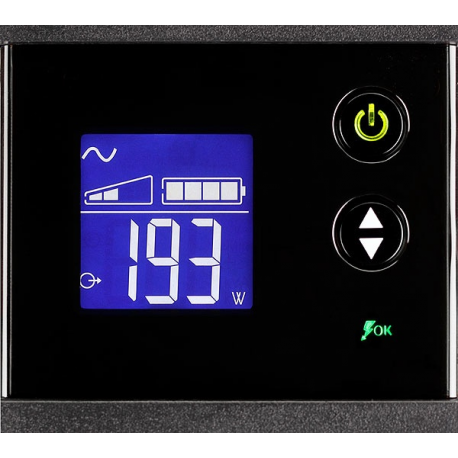

Display type
LCD
LED indicators
Y
Safety
IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Harmonized System (HS) code
85078000
Width
82 mm
Depth
390 mm
Height
275 mm
Weight
11.3 kg
Nominal input voltage
230 V
