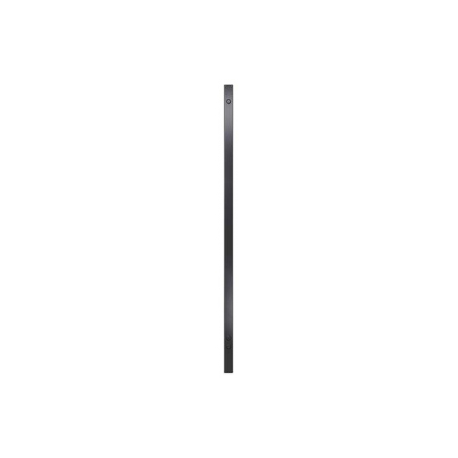

APC Metered-by-Outlet with Switching Rack PDU ZeroU 2G - Power distribution unit (rack-mountable)

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs

•

APC

Ražotāja kods

•

AP8659EU3

Artikuls

•

1087275

Intrastat

•

85044090

Pakas svars

•

9.05 kg

<ul><li>Metering-by-outlet capability</li><li>Network management capabilities</li><li>Remote individual outlet control</li><li>Alarm thresholds</li><li>Local current monitoring display</li><li>Power delays</li><li>Load indicator LED</li><li>Flash upgradeable</li><li>Single input power source</li></ul> APC metered-by-outlet rack power Distribution Unit (PDU) provides active metering of individual outlets to enable energy optimization and detailed capacity planning. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered-by-outlet rack PDU provides a more granular level of power utilization data to allow data center managers to make more precise decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered-by-outlet rack PDU includes individual outlet power metering, a temperature/humidity sensor port, and locking IEC receptacles.<br /><br /><p> </p>

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

0U

Colour

Black

Input Voltage

AC 200/208/230 V

Frequency Required

50/60 Hz

Input Connectors

Power IEC 60309

Power Output Connectors Details

21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19

Output Voltage

AC 230 V

Max Electric Current

16 A

Remote Management Interface

Ethernet 10/100

Remote Management Protocol

SNMP, Telnet, HTTPS, SSH

Interfaces

1 x LAN - RJ-45 ¦ 1 x management - RJ-12

Cables Included

Power cable - external - 3 m ¦ Serial cable - external

Rack Mounting Kit

Included

Features

E-mail notification, audible alarm, LED display, voltage monitoring, LED indicators, peripherals power switching (automatic), vertical orientation, firmware upgradable

Compliant Standards

UL, EN 61000-3-2, ICES-003, VDE, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, PSE Mark, REACH

Service & Support

Limited warranty - 2 years

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

5 - 95% (non-condensing)

Width

5.6 cm

Depth

5.1 cm

Height

182.9 cm

Weight

6.77 kg

Shipping Width

16.2 cm

Shipping Depth

11.7 cm

Shipping Height

203.8 cm

Shipping Weight

9.05 kg

Designed For

P/N: AP5607, AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-B
