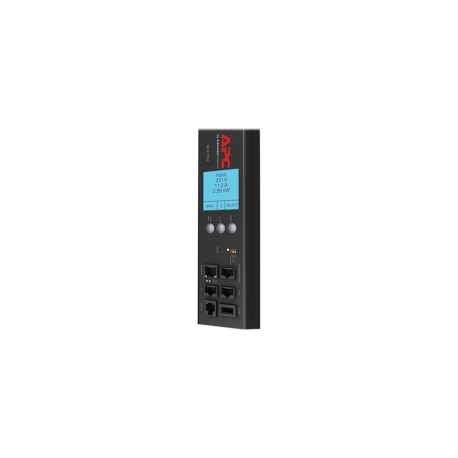

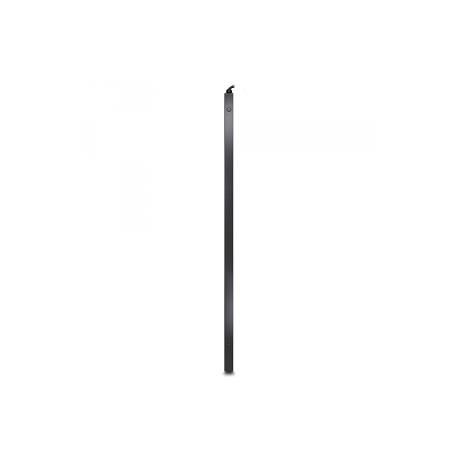

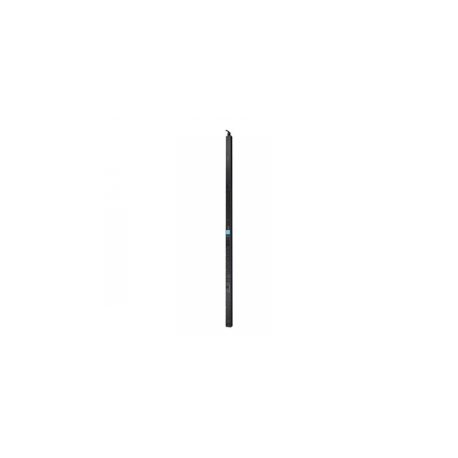

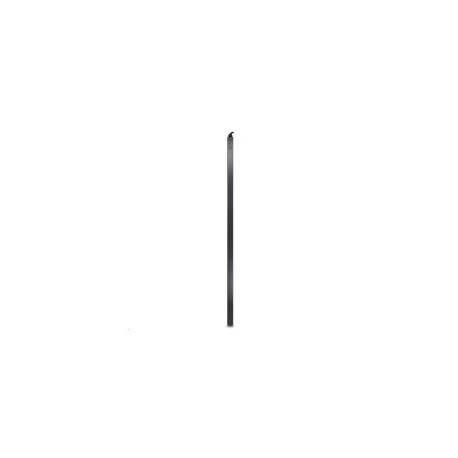

APC Switched Rack PDU 2G Zero U - Power distribution strip (rack-mountable) - AC 200 / 208 / 230 V - RS-232 - input: IEC 60309 32A - output connectors: 24 - black - for P / N: SMX1500RMNCUS, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW
APC Switched Rack PDU 2G Zero U - Power distribution strip (rack-mountable) - AC 200 / 208 / 230 V - RS-232 - input: IEC 60309 32A - output connectors: 24 - black - for P / N: SMX1500RMNCUS, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW
Ražotājs
•APC
Ražotāja kods
•AP8953
Artikuls
•487551
Intrastat
•85044090
Pakas svars
•10 kg
<ul><li>Network management</li><li>Remote individual outlet control</li><li>Power delays</li><li>Load indicator LED</li><li>Integrates with InfraStruXure Central</li><li>Single input power source</li></ul>
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces.<br /><br /><p> </p>
Device Type
Power distribution strip - rack-mountable
Colour
Black
Input Voltage
AC 200/208/230 V
Input Voltage Range
AC 220 - 240 V
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
3 x power IEC 60320 C19 ¦ 21 x power IEC 60320 C13
Max Electric Current
32 A
Remote Management Interface
RS-232
Remote Management Protocol
SNMP, Telnet, HTTP
Interfaces
1 x management
Cables Included
Power cable - external - 3.05 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
LCD display, overload protection
Compliant Standards
EN 61000-3-2, EN55022, VDE, EN 61000-3-3, EN55024, RoHS, REACH
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Width
5.6 cm
Depth
4.6 cm
Height
183 cm
Weight
8.6 kg
Shipping Width
16.5 cm
Shipping Depth
12.4 cm
Shipping Height
204 cm
Shipping Weight
10 kg
Designed For
P/N: AP5607, AP6453CH, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-
