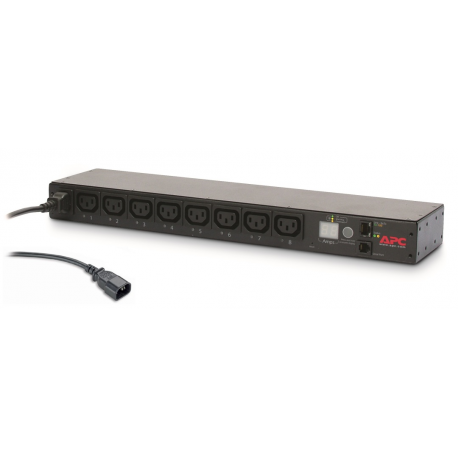

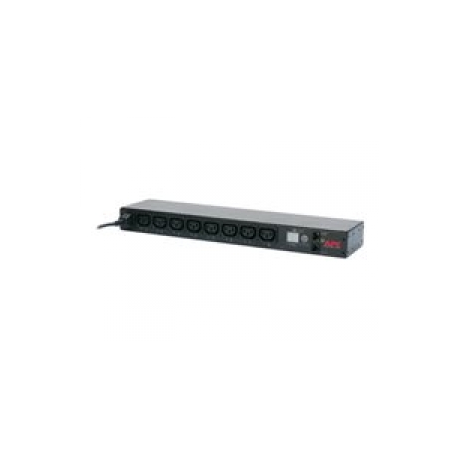

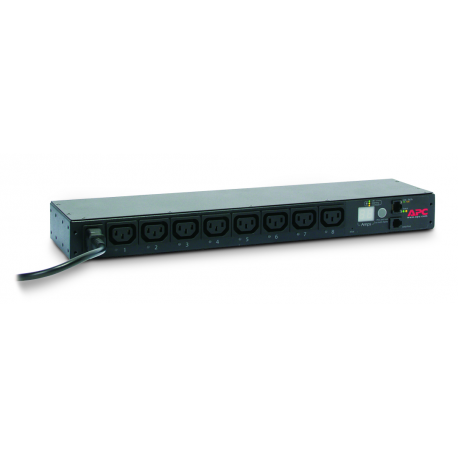

APC Switched Rack PDU AP7920B - Power distribution strip - AC 200 / 208 / 230 V - 2300 VA - Ethernet - input: IEC 60320 C14 - output connectors: 8 (IEC 60320 C13) - 1U - 19" - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

APC Switched Rack PDU AP7920B - Power distribution strip - AC 200 / 208 / 230 V - 2300 VA - Ethernet - input: IEC 60320 C14 - output connectors: 8 (IEC 60320 C13) - 1U - 19" - black - for P / N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC

Ražotājs
•
APC
Ražotāja kods
•
AP7920B
Artikuls
•
1373521
Intrastat
•
85044090
Pakas svars
•
3.45 kg
Kopā pieejams (gab.)
•
3
Tuvākā piegāde
•
16.03.2026
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.<br /><br />Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.<br /><br />Full-featured network management interfaces that provide standards-based management via web, SNMP, and telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.<br /><br /><p> </p>

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs
•
APC
Ražotāja kods
•
AP7920B
Artikuls
•
1373521
Intrastat
•
85044090
Pakas svars
•
3.45 kg
Kopā pieejams (gab.)
•
3
Tuvākā piegāde
•
16.03.2026
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.<br /><br />Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.<br /><br />Full-featured network management interfaces that provide standards-based management via web, SNMP, and telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.<br /><br /><p> </p>

Device Type
Power distribution strip - external
Height (Rack Units)
1U
Rack Size
19"
Colour
Black
Input Voltage
AC 200/208/230 V
Input Voltage Range
AC 200 - 240 V
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
8 x power IEC 60320 C13
Output Voltage
AC 208/230 V
Max Electric Current
15 A
Power Capacity
2300 VA
Remote Management Interface
Ethernet
Remote Management Protocol
SNMP, Telnet, HTTP
Interfaces
1 x management (Ethernet) - RJ-45
Cables Included
Power cable 1.98 m
Rack Mounting Kit
Included
Features
LCD display, LED display
Compliant Standards
FCC Class A certified, UL, VCCI, C-Tick, cUL, ICES-003, IEC 61000-3-2, IEC 61000-3-3, VDE, EN55024, EN55022 Class A, RoHS, REACH SvHC
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 95%
Width
44.5 cm
Depth
10.8 cm
Height
4.5 cm
Weight
2.27 kg
Shipping Width
47 cm
Shipping Depth
34.3 cm
Shipping Height
7 cm
Shipping Weight
3.45 kg
Designed For
P/N: AR106, AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3105W, AR3106, AR3106SP, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1000R2I-AR, SMT1000RMI2UC, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RM2UC, SMT1500RMI2UC, SMT1500RMI2UNC, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC,
