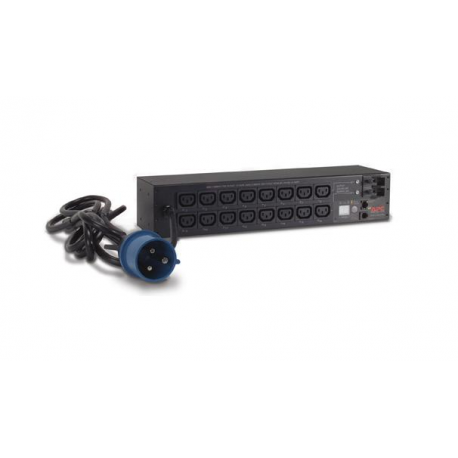

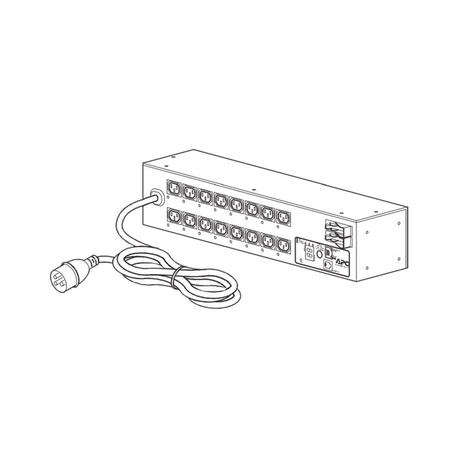

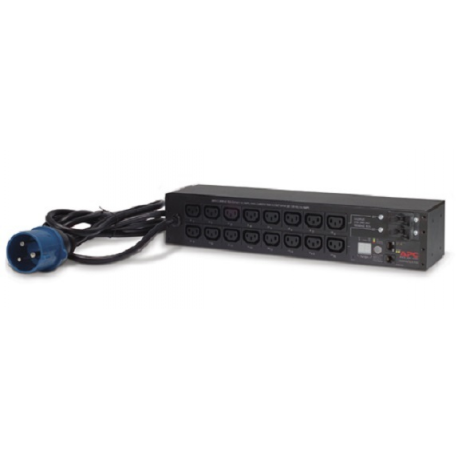

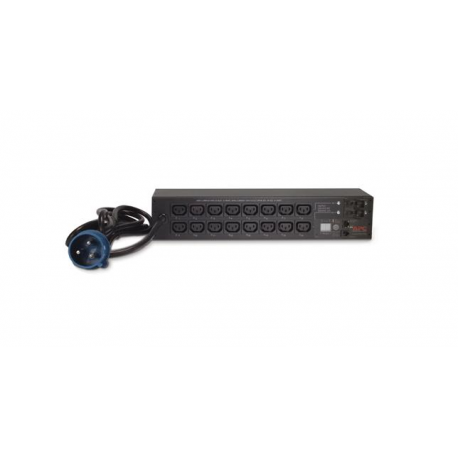

APC Switched Rack PDU AP7922B - Power distribution unit (rack-mountable) - AC 230 V - Ethernet 10 / 100 - input: IEC 60309 32A - output connectors: 16 (IEC 60320 C13) - 2U - 3.66 m cord - for P / N: SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RMI2UC, SMTL750RMI2UC

APC Switched Rack PDU AP7922B - Power distribution unit (rack-mountable) - AC 230 V - Ethernet 10 / 100 - input: IEC 60309 32A - output connectors: 16 (IEC 60320 C13) - 2U - 3.66 m cord - for P / N: SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RMI2UC, SMTL750RMI2UC

Ražotājs
•
APC
Ražotāja kods
•
AP7922B
Artikuls
•
1426490
Intrastat
•
85044090
Pakas svars
•
6.55 kg
<ul><li>Network management</li><li>Remote individual outlet control</li><li>Power delays</li><li>Load indicator LED</li><li>Flash upgradeable</li><li>Integrates with InfraStruXure Central</li></ul> The APC by Schneider Electric Switched Rack Power Distribution Unit (PDU) distributes power to devices in the rack. It has a sensor that measures the current used by the PDU and its attached devices. It can be monitored through Web, Telnet, SNMP, SSH, or StruxureWare Data Center Expert interfaces.<br /><br /><p> </p>

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs
•
APC
Ražotāja kods
•
AP7922B
Artikuls
•
1426490
Intrastat
•
85044090
Pakas svars
•
6.55 kg
<ul><li>Network management</li><li>Remote individual outlet control</li><li>Power delays</li><li>Load indicator LED</li><li>Flash upgradeable</li><li>Integrates with InfraStruXure Central</li></ul> The APC by Schneider Electric Switched Rack Power Distribution Unit (PDU) distributes power to devices in the rack. It has a sensor that measures the current used by the PDU and its attached devices. It can be monitored through Web, Telnet, SNMP, SSH, or StruxureWare Data Center Expert interfaces.<br /><br /><p> </p>

Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
2U
Cord Length
3.66 m
Input Voltage
AC 230 V
Input Voltage Margin
± 10%
Frequency Required
47 - 63 Hz
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
16 x power IEC 60320 C13
Max Electric Current
32 A
Remote Management Interface
Ethernet 10/100
Remote Management Protocol
SNMP, Telnet, HTTP, SSH
Interfaces
1 x management (Ethernet) - RJ-45 ¦ 1 x serial - RJ-11
Cables Included
Power cable 3.66 m
Features
LED display, current meter, overload protection
Compliant Standards
EN55022, VDE, EN55024, CISPR 22, AS/NZS, EAC
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95% (non-condensing)
Width
44.45 cm
Depth
11.43 cm
Height
8.89 cm
Weight
4.49 kg
Shipping Weight
6.53 kg
Designed For
P/N: ACDC2513, AP7950B, AR106, AR112, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X617, AR3155SP, AR3155W, AR3157SP, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X610, AR3300X617, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X617, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X432, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR8213, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR
