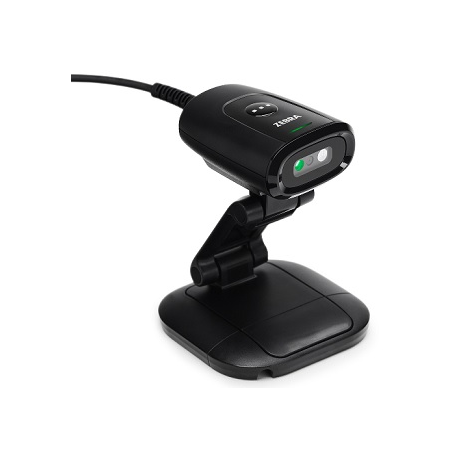

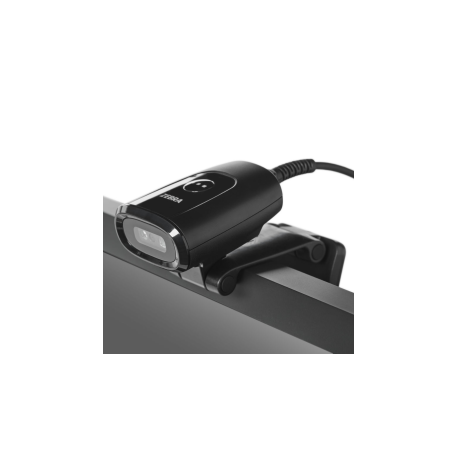

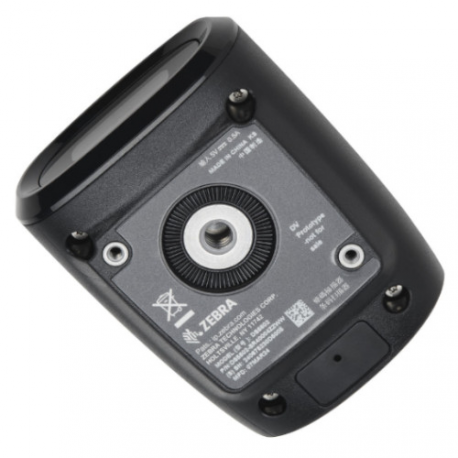

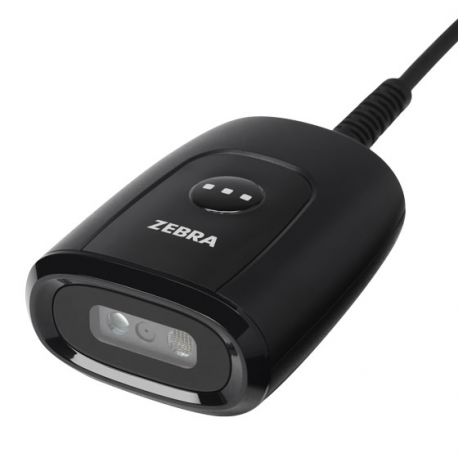

Zebra DS55 Series DS5502 - Barcode scanner - desktop - SR - 2D imager - decoded - USB, RS-232
Ražotājs
•ZEBRA
Ražotāja kods
•DS5502-SR40004ZZWW
Artikuls
•3461632
Intrastat
•84719000
Pakas svars
•0.0652 kg
Kopā pieejams (gab.)
•240
Tuvākā piegāde
•09.09.2026
Ražotāja cena
•374.92 €
1D2DUSBSeriālais ports
Iebūvēts skeneris, 2D, standarta darbības attālums, apgabala attēlu skeneris, dubultā saskarne (RS232, USB), izmēri: platums 30 mm, augstums 56 mm, dziļums 72 mm, pasūtīt atsevišķi: saskarnes kabelis, IP54, krāsa: melna
Type
Barcode scanner - desktop
Colour
Midnight black
Localisation
Global
Interface Type
USB, RS-232
Minimum Bar Width
3 mil
Scan Engine Focus Range
Standard Range (SR)
Scan Element Type
2D imager - green LED
Sensor Resolution
1280 x 800
Light Source Wave Length
525 nm
Scan Mode
Single-pass
Max Working Distance
91.2 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, IATA 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge)
Interfaces
1 x RS-232 - DB-9
1 x USB - Type A
Included Accessories
3-in-1 mount
Compliant Standards
EN 61000-4-2, EN/IEC 63000:2018, RoHS 2015/863, WEEE 2012/19/EU, REACH 2006/1907/EC, EN 62368-1:2014/AC:2015, ANSI/UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, EN 62368-1:2014/A11:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC62368-1:2014, EN 55032, EN 55035, EN60601-1-2, EN61000-6-2, FCC 47 CFR Part 15 Subpart B, ICES-003, IEC 60601-1-2, IEC/EN 62471, SABS, VCCI, IP54
Power Device
Power adapter
Voltage
4.75 - 5.25 V
Electric Current Required
360 mA (typical)
Width
5.6 cm
Depth
7.2 cm
Height
3 cm
Weight
65.2 g
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
Drop Specification
1.5 m to concrete
Bracket: MS320x to DS457Kods: KT-152342-01
Zebra - Barcode scanner cable - USB (M) to RJ-50 (M) right-angled - 2.13 mKods: CBL-U20755-01
Zebra - Barcode scanner cable - USB (M) to RJ-50 (M) - 61 cm - straightKods: CBL-U10255-01
Zebra - Serial cable - DB-9 (F) straight to RJ-50 (M) angled - 2.13 mKods: CBL-R20755-01
Zebra - Serial cable - RS-232 to RJ-50 - 2.13 mKods: CBL-R10755-01
Zebra - Barcode scanner cable - USB (M) to RJ-50 (M) - 2.13 mKods: CBL-U10755-01
Zebra - POS terminal wall / counter mount - for Zebra DS457-HDKods: KT-145344-01
Zebra - USB cable - USB (M) straight to RJ-50 (M) angled - 61 cmKods: CBL-U20255-01
Zebra - Power adapter - for Symbol LS2208; Zebra LI4278Kods: PWR-WUA5V4W0US
Zebra - Barcode scanner gooseneck stand - white - for Zebra DS5502Kods: STND-GS0055C-0W
Zebra - Barcode scanner gooseneck stand - black - for Zebra DS457Kods: STND-GS0055C-04
