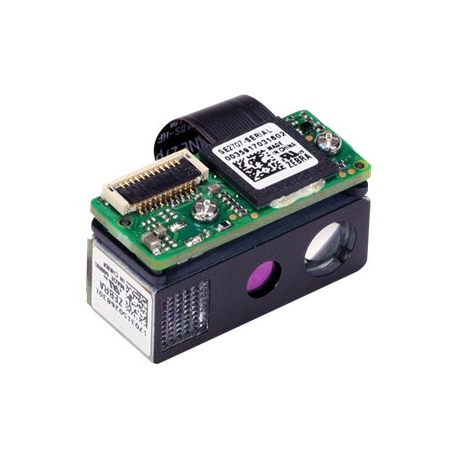

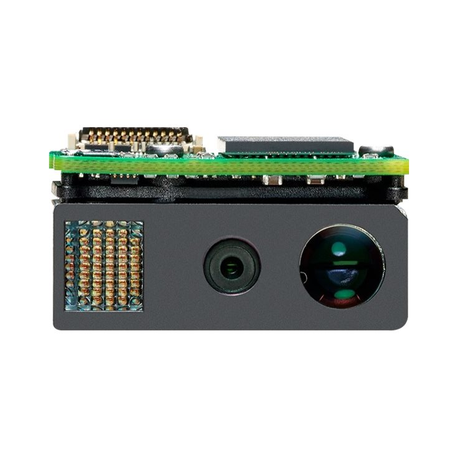

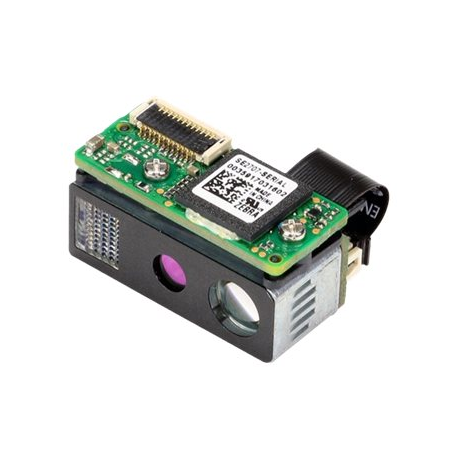

Zebra SE2707 - Barcode scanner - integrated - 2D imager - decoded - TTL
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1577839 Intrastat: 84719000 Ražotāja kods: SE2707-LS000R
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Type | Barcode scanner - integrated |
| Interface Type | TTL |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 640 x 400 |
| Light Source Wave Length | 660 nm |
| Max Working Distance | 49.5 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Decode Capability | Code 39, QR code, Code 128, UPC, PDF417, Data Matrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| Features | Firmware upgradable |
| Interfaces | 1 x serial |
| Compliant Standards | RoHS, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014-10, IEC/EN 62471, IEC/EN 60950-1 + A1 + A2 |
| Voltage | DC 5 V |
| Electric Current Required | 300 mA (peak) |
| Width | 2.23 cm |
| Depth | 1.8 cm |
| Height | 1.26 cm |
| Weight | 6.2 g |
| Service & Support | Limited warranty - parts and labour - 15 months |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
