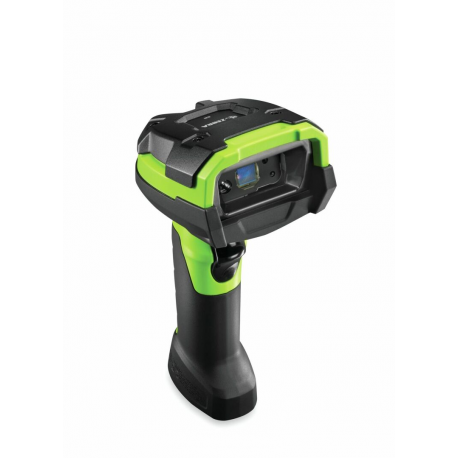

Zebra DS3608-XR - Barcode scanner - handheld - ER - 2D imager - decoded - interface cable required - TAA Compliant

Ražotājs
•
ZEBRA
Ražotāja kods
•
DS3608-XR60003VZWW
Artikuls
•
3462977
Intrastat
•
84716070
Pakas svars
•
0.308 kg
Kopā pieejams (gab.)
•
234
Tuvākā piegāde
•
28.09.2026
Ražotāja cena
•
790.20 €
1D2DAttāluma skanerisUSBSeriālais ports
Rokas skeneris, rūpnieciskais, 2D attēlotājs (paplašināts darbības attālums, SE5800), vibrācija, vairāku interfeisu (RS232, KBW, USB), pasūtīt atsevišķi: saskarnes kabelis, IP67, melns, zaļš

Ražotājs
•
ZEBRA
Ražotāja kods
•
DS3608-XR60003VZWW
Artikuls
•
3462977
Intrastat
•
84716070
Pakas svars
•
0.308 kg
Kopā pieejams (gab.)
•
234
Tuvākā piegāde
•
28.09.2026
Ražotāja cena
•
790.20 €
1D2DAttāluma skanerisUSBSeriālais ports
Rokas skeneris, rūpnieciskais, 2D attēlotājs (paplašināts darbības attālums, SE5800), vibrācija, vairāku interfeisu (RS232, KBW, USB), pasūtīt atsevišķi: saskarnes kabelis, IP67, melns, zaļš

Type
Barcode scanner - handheld
Colour
Industrial green
Interface Type
Interface cable required
Minimum Bar Width
5 mil
Scan Engine Focus Range
Extended Range (ER)
Scan Element Type
2D imager
Sensor Resolution
1920 x 1080
Light Source Wave Length
520 nm
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
25%
Decode Capability
Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, Industrial 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, Italy Pharmacode, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Chinese Sensible Code, Han Xin, Postal Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator, vibration
Features
Rugged, Human Interface Device Profile (HID), Serial Port Profile (SPP), 25 kV ESD protection (air discharge), 10 kV ESD protection (direct discharge), 10 kV ESD protection (indirect discharge), Digimarc Barcode Technology
Interfaces
1 x USB ¦ 1 x keyboard wedge ¦ 1 x RS-232 ¦ 1 x Ethernet - RJ-45
TAA Compliant
Yes
Compliant Standards
IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007, FIPS 140-3
Width
7.6 cm
Depth
13.2 cm
Height
18.5 cm
Weight
308 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
2.4 m to concrete
