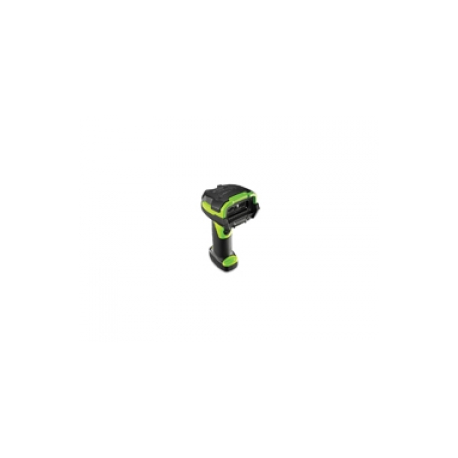

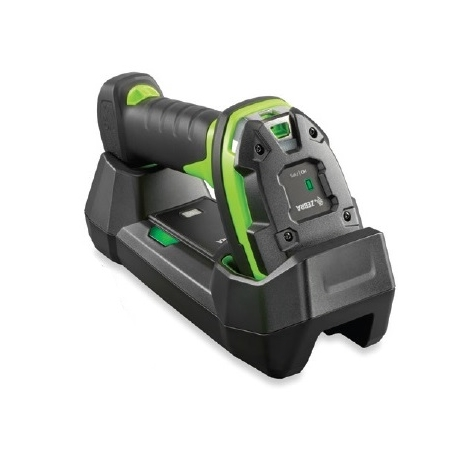

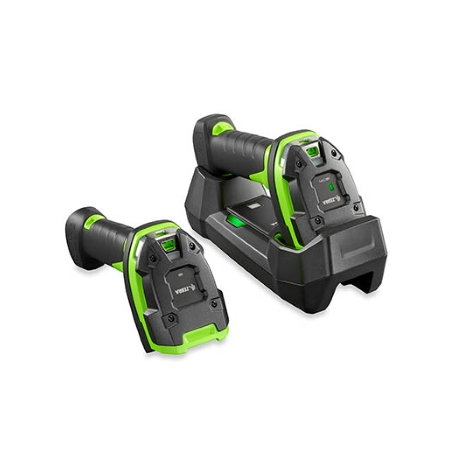

Zebra DS3678-DP - USB Kit - barcode scanner - portable - decoded - Bluetooth 4.0

Ražotājs
•
ZEBRA
Ražotāja kods
•
DS3678-DP3U4212S1W
Artikuls
•
1390773
Intrastat
•
84716070
Pakas svars
•
0.411 kg
Kopā pieejams (gab.)
•
3
Tuvākā piegāde
•
10.09.2026
USBBluetooth

Ražotājs
•
ZEBRA
Ražotāja kods
•
DS3678-DP3U4212S1W
Artikuls
•
1390773
Intrastat
•
84716070
Pakas svars
•
0.411 kg
Kopā pieejams (gab.)
•
3
Tuvākā piegāde
•
10.09.2026
USBBluetooth

Type
Barcode scanner - portable
Colour
Industrial green
Interface Type
Bluetooth 4.0
Sensor Resolution
1280 x 960
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Direct Part Mark (DPM), UPC/EAN supplementals
TTL Decoding
Decoded
Connectivity Technology
Wireless
OK Notification
Beeper, LED indicator, vibration
Features
Rugged
Wireless Connectivity
Bluetooth 4.0 LE
Interfaces
1 x USB
Included Accessories
Cradle
Cables Included
1 x USB cable - external - 2.13 m
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Power Device
Power adapter
Battery
1 x Lithium Ion
Width
7.6 cm
Depth
14.2 cm
Height
18.5 cm
Weight
411 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
2.4 m to concrete
