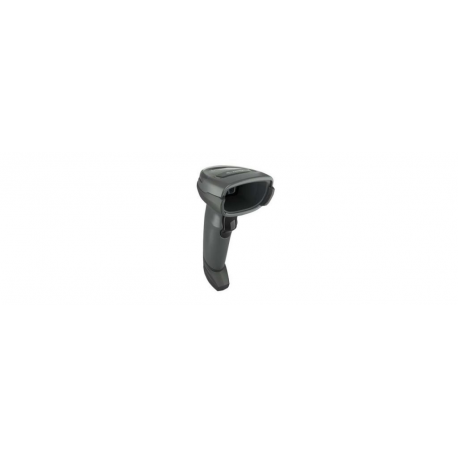

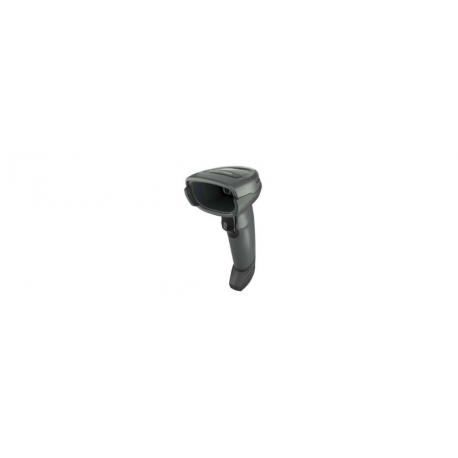

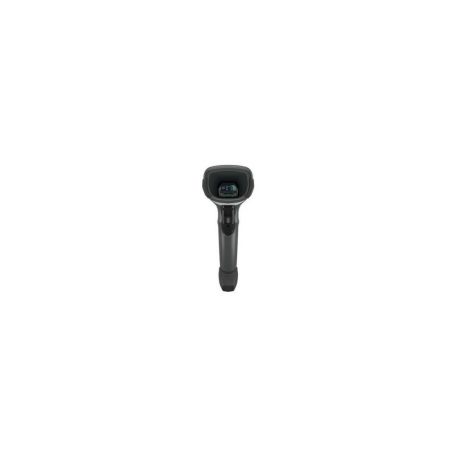

Zebra DS4608-HD - RS-232 Kit - barcode scanner - handheld - 2D imager - decoded - RS-232, USB
Ražotājs
•ZEBRA
Ražotāja kods
•DS4608-HD7R0100AZW
Artikuls
•1722930
Intrastat
•84716070
Pakas svars
•0.1619 kg
1D2DUSBSeriālais ports
Type
Barcode scanner - handheld
Colour
Twilight black
Interface Type
RS-232, USB
Minimum Bar Width
2 mil
Scan Element Type
2D imager - Red LED
Sensor Resolution
1280 x 800
Light Source Wave Length
660 nm
Scan Mode
Single-pass
Max Working Distance
73.7 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, DotCode, Composite, Han Xin, Korean 3 of 5, Base 32
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Checkpoint Electronic Article Surveillance (EAS), 15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge)
Interfaces
1 x RS-232 ¦ USB
Cables Included
USB cable
Compliant Standards
EN55024, EN 61000-4-2, UL 60950-1 Second Edition, IP52, CAN/CSA C22.2 No. 60950-1-07, EN 50581:2012, IEC 60950-1:2005, IEC 62471:2006, EN 62471:2008, FCC CFR47 Part 15 B Class B, EN 55032 Class B, IEC 62368-1, ICES-003 issue 6 Class B, EN 60950-1:2006+A2:2013, EN 60601-1-2:2015, EN 62368-1:2014, EN 55035, 2011/65/EU, IEC 60601-1-2:2014
Electric Current Required
340 mA (typical), 150 mA (standby)
Width
6.7 cm
Depth
9.8 cm
Height
16.5 cm
Weight
161.9 g
Service & Support
Limited warranty - parts and labour - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.8 m to concrete
