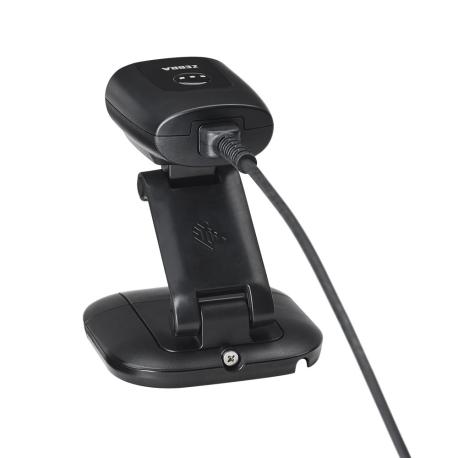

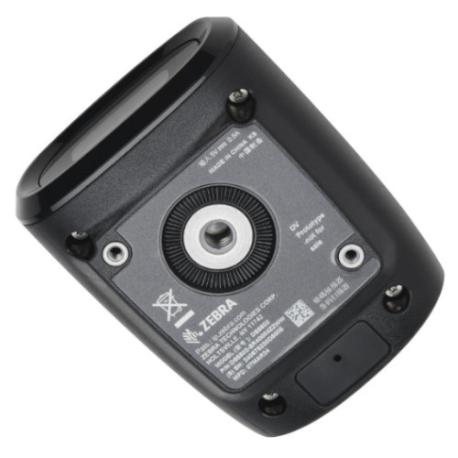

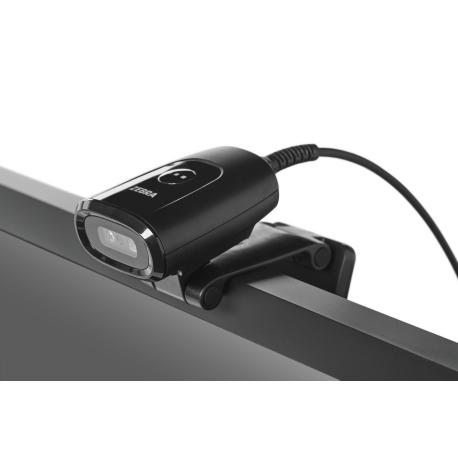

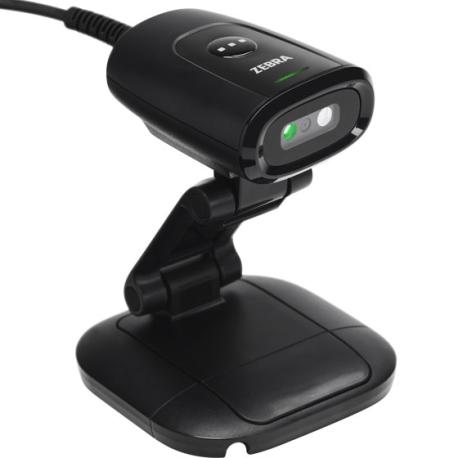

Zebra DS55 Series DS5502 - Barcode scanner - handheld - SR - 2D imager - decoded - USB, RS-232
Ražotājs
•ZEBRA
Ražotāja kods
•DS5502-SR4RS71MAZE
Artikuls
•3462971
Intrastat
•84716070
Pakas svars
•0.0652 kg
Kopā pieejams (gab.)
•25
Tuvākā piegāde
•10.09.2026
Ražotāja cena
•436.80 €
1D2DUSBSeriālais ports
Iebūvēts skeneris, 2D, standarta darbības attālums, Area Imager, savienojums: divējāda saskarne (RS232, USB), izmēri, W 30mm, H 56mm, D 72mm, iekļauts: RS232, barošanas bloks (EU, UK), IP54, krāsa: melna
Type
Barcode scanner - handheld
Colour
Midnight black
Localisation
EMEA
Interface Type
USB, RS-232
Minimum Bar Width
3 mil
Scan Engine Focus Range
Standard Range (SR)
Scan Element Type
2D imager - green LED
Sensor Resolution
1280 x 800
Light Source Wave Length
525 nm
Scan Mode
Single-pass
Max Working Distance
91.2 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, IATA 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge), driving licence parsing, white LEDs illumination
Interfaces
1 x RS-232 - DB-9 ¦ 1 x USB - Type A
Cables Included
1 x serial cable - 2.1 m
Compliant Standards
EN 61000-4-2, EN/IEC 63000:2018, RoHS 2015/863, WEEE 2012/19/EU, REACH 2006/1907/EC, EN 62368-1:2014/AC:2015, ANSI/UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, EN 62368-1:2014/A11:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC62368-1:2014, EN 55032, EN 55035, EN60601-1-2, EN61000-6-2, FCC 47 CFR Part 15 Subpart B, ICES-003, IEC 60601-1-2, IEC/EN 62471, SABS, VCCI, IP54
Power Device
Power adapter
Voltage
4.75 - 5.25 V
Width
5.6 cm
Depth
7.2 cm
Height
3 cm
Weight
65.2 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
Drop Specification
1.5 m to concrete
