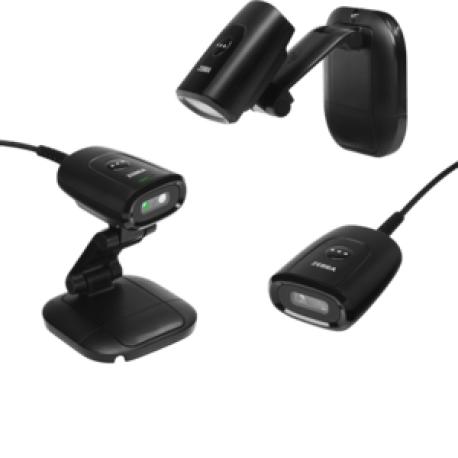

Zebra DS55 Series DS5502 - Barcode scanner - handheld - SR - 2D imager - decoded - USB, RS-232
Ražotājs
•ZEBRA
Ražotāja kods
•DS5502-SR4US70MMZW
Artikuls
•3462969
Intrastat
•84716070
Pakas svars
•0.0652 kg
Kopā pieejams (gab.)
•565
Tuvākā piegāde
•28.09.2026
Ražotāja cena
•424.97 €
1D2DUSBSeriālais ports
Kompakts stacionārs augstas veiktspējas skeneris, pastāvīgi uzstādāms skeneris ar kompakto dizainu, kas nodrošina augstu skenēšanas veiktspēju, spēj nolasīt 1D, 2D un OCR svītrkodus, kā arī mobilos svītrkodus no viedtālruņiem, ar IP54 aizsardzības klasi, iztur kritienus no 1,5 m augstuma uz betona, atbalsta Zebra DNA, Zebra IoT Connector un programmatūras izstrādes komplektus (SDKs) Windows, Android, iOS un Linux platformām, piederumi: ¼-20 kameru stiprinājums, 3-in-1 montāžas kronšteins, iebūvēts skeneris, standarta darbības diapazons, Area Imager, savienojums: USB, interfeiss: RS232, USB, galda/sienas turētājs, krāsa: melna
Type
Barcode scanner - handheld
Colour
Midnight black
Interface Type
USB, RS-232
Minimum Bar Width
3 mil
Scan Engine Focus Range
Standard Range (SR)
Scan Element Type
2D imager - green LED
Sensor Resolution
1280 x 800
Light Source Wave Length
525 nm
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, IATA 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge)
Interfaces
1 x RS-232 - DB-9 ¦ 1 x USB - Type A
Included Accessories
3-in-1 mount
Cables Included
1 x USB cable - external - 2.1 m
Compliant Standards
EN 61000-4-2, EN/IEC 63000:2018, RoHS 2015/863, WEEE 2012/19/EU, REACH 2006/1907/EC, EN 62368-1:2014/AC:2015, ANSI/UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, EN 62368-1:2014/A11:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC62368-1:2014, EN 55032, EN 55035, EN60601-1-2, EN61000-6-2, FCC 47 CFR Part 15 Subpart B, ICES-003, IEC 60601-1-2, IEC/EN 62471, SABS, VCCI, IP54
Power Device
Power adapter
Width
5.6 cm
Depth
7.2 cm
Height
3 cm
Weight
65.2 g
Service & Support
Limited warranty - parts and labour - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
Drop Specification
1.5 m to concrete
Bracket: MS320x to DS457Kods: KT-152342-01
Zebra - Barcode scanner cable - USB (M) to RJ-50 (M) - 61 cm - straightKods: CBL-U10255-01
Zebra - Serial cable - RS-232 to RJ-50 - 2.13 mKods: CBL-R10755-01
Zebra - Barcode scanner cable - USB (M) to RJ-50 (M) right-angled - 2.13 mKods: CBL-U20755-01
Zebra - Barcode scanner cable - USB (M) to RJ-50 (M) - 2.13 mKods: CBL-U10755-01
Zebra - Serial cable - DB-9 (F) straight to RJ-50 (M) angled - 2.13 mKods: CBL-R20755-01
Zebra - POS terminal wall / counter mount - for Zebra DS457-HDKods: KT-145344-01
Zebra - USB cable - USB (M) straight to RJ-50 (M) angled - 61 cmKods: CBL-U20255-01
Zebra - Power adapter - for Symbol LS2208; Zebra LI4278Kods: PWR-WUA5V4W0US
Zebra - Barcode scanner gooseneck stand - white - for Zebra DS5502Kods: STND-GS0055C-0W
Zebra - Barcode scanner gooseneck stand - black - for Zebra DS457Kods: STND-GS0055C-04
