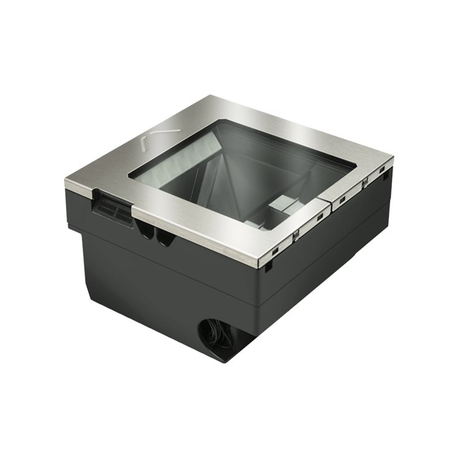

Datalogic Magellan 3510HSi - Barcode scanner - integrated - 2D imager - decoded - USB

Datalogic Magellan 3510HSi - Barcode scanner - integrated - 2D imager - decoded - USB

Ražotājs
DATALOGIC
Ražotāja kods
M3511-010200-00403
Artikuls
1783624
Intrastat
84719000
Pakas svars
1.504 kg
Ražotāja cena
800.00 €
Kopā pieejams (gab.)
200
Tuvākā piegāde
07.04.2026
2D, imager, sapphire glass, micro SD-Slot, USB (type A), multi-interface (RS232, USB, IBM), incl.: cable (IBM, 4,6 m, straight), order separately: power cable, power supply unit, Mounting Frame, IP52

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs
DATALOGIC
Ražotāja kods
M3511-010200-00403
Artikuls
1783624
Intrastat
84719000
Pakas svars
1.504 kg
Ražotāja cena
800.00 €
Kopā pieejams (gab.)
200
Tuvākā piegāde
07.04.2026
2D, imager, sapphire glass, micro SD-Slot, USB (type A), multi-interface (RS232, USB, IBM), incl.: cable (IBM, 4,6 m, straight), order separately: power cable, power supply unit, Mounting Frame, IP52

Type
Barcode scanner - integrated - stationary
Interface Type
USB
Minimum Bar Width
5 mil
Scan Element Type
2D imager - LED
Sensor Resolution
1280 x 800
Window Glass Type
Sapphire Glass (SG)
Scan Mode
Fixed projection
Max Working Distance
10.2 cm
Skew (Degrees)
75
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
GS1 DataBar, QR code, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Checkpoint Electronic Article Surveillance (EAS), Micro SD card slot, 25 kV ESD protection (air discharge), USB-OEM interface
Interfaces
1 x PoweredUSB - Type A
Cables Included
1 x PoweredUSB cable - 4.57 m
Compliant Standards
IP52, China RoHS, EN 62471:2008, IEC 62471, EU RoHS
Power Device
No power supply
Width
15.2 cm
Depth
15.2 cm
Height
8.7 cm
Weight
980 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
10 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
