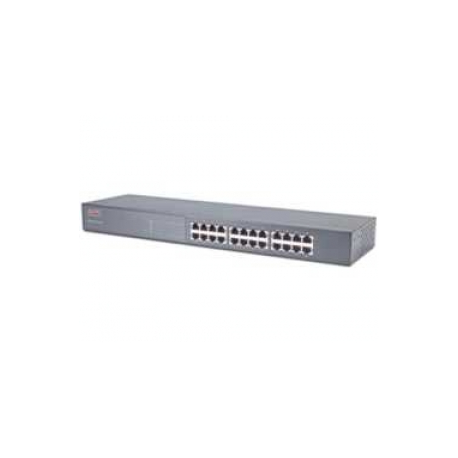

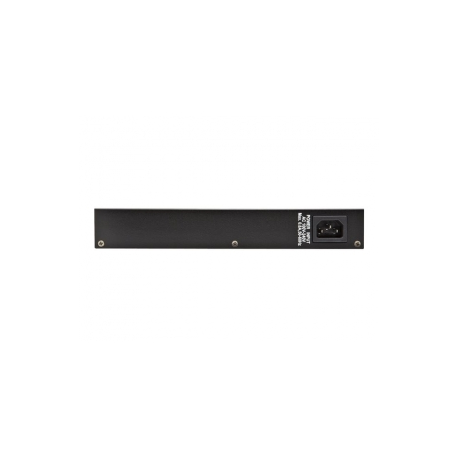

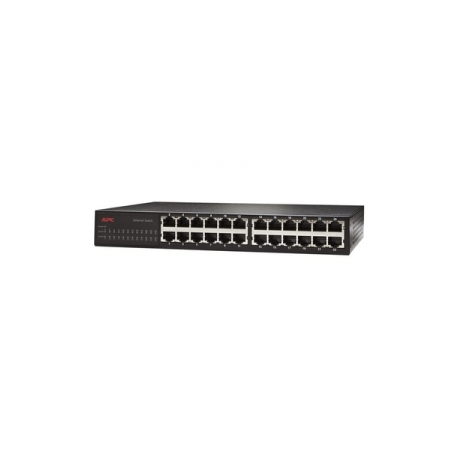

APC 24 Port 10 / 100 Ethernet Switch - Switch - 24 x 10 / 100 - rack-mountable - for P / N: AR3106SP, SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RMI2UC, SMTL750RMI2UC
APC 24 Port 10 / 100 Ethernet Switch - Switch - 24 x 10 / 100 - rack-mountable - for P / N: AR3106SP, SCL400RMJ1U, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RMI2UC, SMTL750RMI2UC
Ražotājs
•APC
Ražotāja kods
•AP9224110
Artikuls
•46811
Intrastat
•85176200
Pakas svars
•1.2 kg
Device Type
Switch - 24 ports
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
24 x 10/100
MAC Address Table Size
4K entries
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x
Status Indicators
Port status, collision status, power
Interfaces
24 x 100Base-TX RJ-45
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
18 Watt
Rack Mounting Kit
Included
Compliant Standards
UL, TUV, cUL, EN 60950, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, FCC Part 15
Width
44.04 cm
Depth
11.94 cm
Height
4.45 cm
Weight
1.2 kg
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95%
Designed For
P/N: ACDC2513, ACF600, AP5607, AR106, AR112, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3100G, AR3100SP, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018
