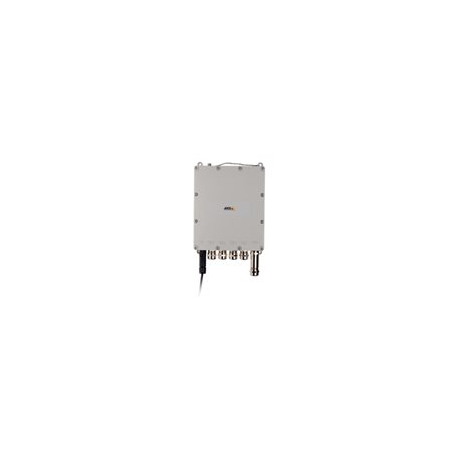

Axis T8504-E Outdoor PoE Switch - Switch - Managed - 4 x 10 / 100 / 1000 (PoE+) + 1 x SFP (mini-GBIC) (uplink) - pole-mountable - PoE+ (150 W) - for AXIS P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q3538-LVE; Q60 Series
Axis T8504-E Outdoor PoE Switch - Switch - Managed - 4 x 10 / 100 / 1000 (PoE+) + 1 x SFP (mini-GBIC) (uplink) - pole-mountable - PoE+ (150 W) - for AXIS P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q3538-LVE; Q60 Series
Ražotājs
•AXIS
Ražotāja kods
•01449-001
Artikuls
•1550303
Intrastat
•85176200
Pakas svars
•2.9 kg
Device Type
Switch - 4 ports - Managed
Enclosure Type
Pole-mountable
Subtype
Gigabit Ethernet
Ports
4 x 10/100/1000 (PoE+) + 1 x SFP (mini-GBIC) (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
150 W
Performance
Throughput: 14.9 Mpps ¦ Switching capacity: 20 Gbps
MAC Address Table Size
8K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
IGMP
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH
Authentication Method
Secure Shell (SSH), RADIUS, TACACS
Compliant Standards
IEEE 802.1Q, IEEE 802.3at
Interfaces
2 x 1000Base-T RJ-45 PoE+ - 60 W ¦ 2 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-X SFP uplink
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Colour
White
Compliant Standards
EN55024, IEC 60529 IP67, ICES-003 Class B, EN 61000-4-5, EN 50121-4, IEC 62236-4, EAC, ITU-T K.20, FCC CFR47 Part 15 B Class B, EN 55032 Class B, AS/NZS CISPR 32 Class B, NEMA250 Type 4X, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, GR-1089-CORE, Issue 4
Software Included
Axis Camera Management
Width
16.6 cm
Depth
7.2 cm
Height
24 cm
Weight
2.9 kg
Min Operating Temperature
-40 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Storage
0 - 90% (non-condensing)
Designed For
AXIS P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q3538-LVE ¦ AXIS Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz
