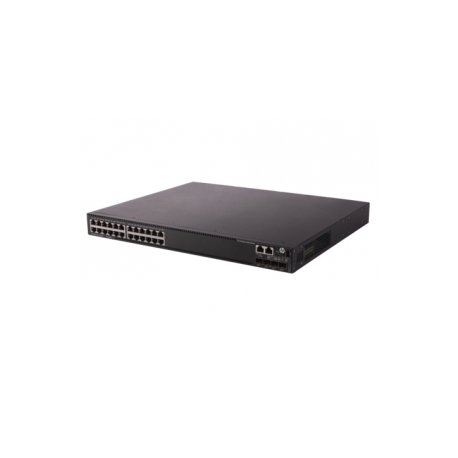

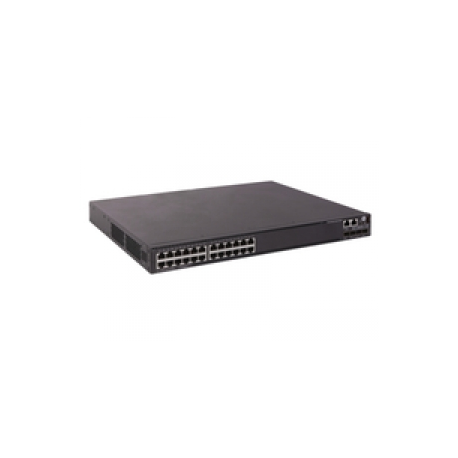

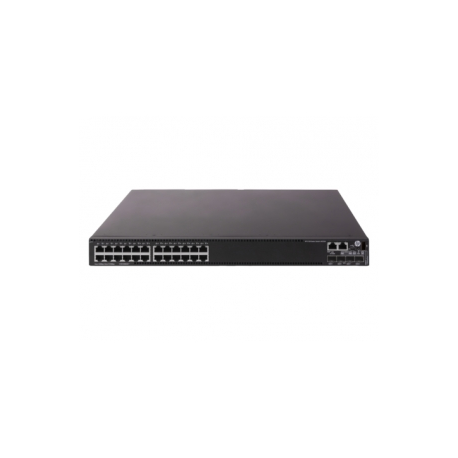

HPE 5130-24G-4SFP+ 1-slot HI - Switch

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs

•

HPE

Ražotāja kods

•

JH323A

Artikuls

•

1298192

Intrastat

•

85176200

Pakas svars

•

6.66 kg

The HPE FlexNetwork 5130 HI Switch Series delivers scalability and resiliency at the access layer of medium and large enterprise campus networks. This FlexNetwork switch supports enterprise class QoS and security, HPE Intelligent Resilient Framework (IRF) stacking, static Layer 3 routing and RIP, dual redundant power supplies, fixed and modular 10GbE uplinks ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. The 5130 HI Switch Series can be managed with HPE Intelligent Management Center (IMC) Software for a single view of your entire network.

Device Type

Switch - 24 ports - L3 - Managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 4 x 10 Gigabit SFP+

Performance

Throughput: up to 154.8 Mpps ¦ Routing/switching capacity: 208 Gbps

Capacity

Simultaneous VLANs: 4094 ¦ IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384

Jumbo Frame Support

9KB

Routing Protocol

RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, IGMPv3, MSDP, MLD

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS

Features

Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), DHCP server, Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), STP Root Guard, IPv4 support, LLDP support, Smart Link Pass-Through, dynamic ARP protection, DHCP protection, port isolation, non blocking ports, Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Intelligent Resilient Framework Technology (IRF), OpenFlow support, IP source guard

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az

RAM

2 GB SDRAM

Flash Memory

512 MB

Interfaces

24 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 1 x USB 2.0 ¦ 1 x management (LAN) RJ-45

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Installed Modules Qty (Max)

1 (installed) / 1 (max)

Power Device

Internal power supply (not installed)

Max Supported Qty

2

Power Redundancy

Optional

Power Redundancy Scheme

1+1 (with optional power supply)

Voltage Required

AC 120/230 V (50/60 Hz)

Rack Mounting Kit

Included

Compliant Standards

VCCI, EN 61000-3-2, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, ANSI C63.4-2009, EN 60825-2, EN 61000-3-3:2008, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010 Class A, FCC CFR47 Part 15 A, EN 61000-4.4:2012, CAN/CSA-C22.2 No. 60950-1

Width

44 cm

Depth

36 cm

Height

4.37 cm

Weight

7.5 kg

Service & Support

Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 3 years

Min Operating Temperature

-5 °C
