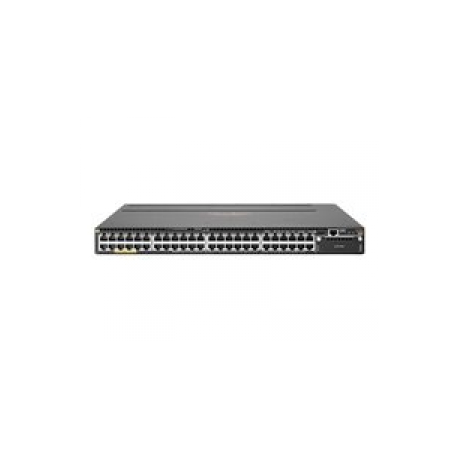

HPE Aruba 3810M 48G PoE+ 1-slot Switch - Switch - L3 - Managed - 48 x 10 / 100 / 1000 (PoE+) - rack-mountable - PoE+
HPE Aruba 3810M 48G PoE+ 1-slot Switch - Switch - L3 - Managed - 48 x 10 / 100 / 1000 (PoE+) - rack-mountable - PoE+
Ražotājs
•HPE
Ražotāja kods
•JL074A
Artikuls
•1299023
Intrastat
•85176200
Pakas svars
•8.6 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•26.03.2026
The Aruba 3810 Switch Series provides performance and resiliency for the digital workplace campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 has comprehensive Layer 3 features, right size deployment models, and is SDN ready with OpenFlow support.
Device Type
Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
Performance
Latency (1000Base-T): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Throughput (64-byte packet size): up to 190.5 Mpps ¦ Routing/switching capacity: 320 Gbps ¦ Switching fabric bandwidth: 338 Gbps
Capacity
IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size
64K entries
Jumbo Frame Support
Yes
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
ARP support, Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Uni-Directional Link Detection (UDLD), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), sFlow v5, Type of Service (ToS), OpenFlow support, Internet Control Message Protocol (ICMP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at
Processor
2
RAM
6 GB DDR3 SDRAM
Flash Memory
1 GB
Interfaces
48 x 1000Base-T RJ-45 PoE+ ¦ 1 x serial (console) RJ-45 management ¦ 1 x management RJ-45 ¦ 1 x RJ-45 ¦ 1 x Type B
Expansion Slots
1 (total) / 1 (free) x Expansion Slot ¦ 1 (total) / 1 (free) x Stacking Module
Power Device
Internal power supply (not installed)
Max Supported Qty
2
80 PLUS Certification
80 PLUS Silver
ENERGY STAR Certified
Yes
Included Accessories
Fan tray
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, IEC 60825-1:2007, EN 62479:2010, EN55022:2010, EN61000-3-3:2008, IEC 60950-1:2005 Second Edition, CSA 22.2 No. 60950-1, EN 55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Width
44.25 cm
Depth
43.13 cm
Height
4.39 cm
Weight
6.18 kg
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
