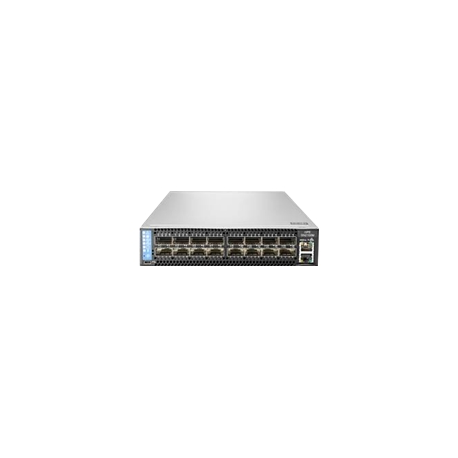

HPE StoreFabric SN2100M 100GbE 16 QSFP28 Half Width - Switch - L3 - Managed - 16 x 100 Gigabit QSFP28 - rack-mountable - for HPE J2000; Apollo 4200, 4200 Gen10
HPE StoreFabric SN2100M 100GbE 16 QSFP28 Half Width - Switch - L3 - Managed - 16 x 100 Gigabit QSFP28 - rack-mountable - for HPE J2000; Apollo 4200, 4200 Gen10
Ražotājs
•HPE
Ražotāja kods
•Q2F23A
Artikuls
•1553710
Intrastat
•85176200
Pakas svars
•5.5 kg
Device Type
Switch - 16 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Subtype
100 Gigabit Ethernet
Ports
16 x 100 Gigabit QSFP28
Performance
Switching capacity: 3.2 Tbps ¦ Processing rate: 4.76 Bpps ¦ Cut-through latency: 300 ns
Remote Management Protocol
SNMP, Telnet, SSH, CLI
Authentication Method
RADIUS, TACACS+, LDAP
Features
IGMP snooping, port mirroring, store and forward, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Storm Control, RDMA over Converged Ethernet (RoCE), random early detection (RED), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Multi Chassis Link Aggregation Group (MLAG), Open Shortest Path First (OSPF), Root Guard, Loop Guard, Voice VLAN, Top-of-Rack (ToR), STP BPDU Guard, BPDU Filter, Protocol Independent Multicast (PIM)
Compliant Standards
X.509
RAM
8 GB
Flash Memory
16 MB
Status Indicators
System, status, fan
Interfaces
16 x 100Gbit LAN QSFP28 ¦ 1 x USB mini-USB ¦ 1 x management RJ-45 ¦ 1 x console RJ-45
Power Device
Internal power supply
Installed Qty
2 (installed) / 2 (max)
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
94 Watt
Included Accessories
2 power cords (C13 to C14)
Cables Included
1 x serial cable
Rack Mounting Kit
Optional
Compliant Standards
EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009
Width
20 cm
Depth
50.8 cm
Height
4.39 cm
Weight
4.53 kg
Service & Support
Limited warranty - parts and labour - 3 years - on-site
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 85% (non-condensing)
Designed For
HPE J2000 Dual IOM 2x100GbE NVMe-oF SFF JBOF Storage, J2000 Dual IOM 6x100GbE NVMe-oF SFF JBOF Storage ¦ HPE Apollo 4200 Gen10 192TB Qumulo Hybrid Node, 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Qumulo Archive Node, 4200 Qumulo Hybrid Node, 4200 Qumulo Node
