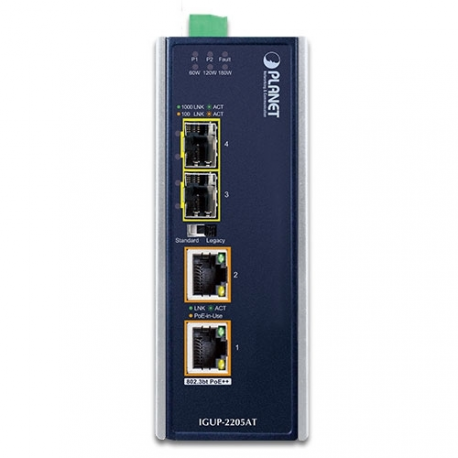

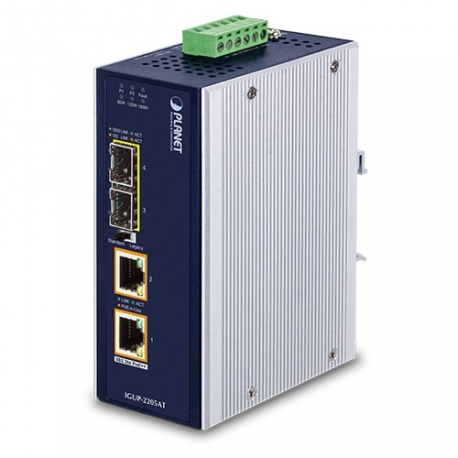

PLANET IGUP-2205AT - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T, 1000Base-BX - RJ-45 / SFP (mini-GBIC) - up to 120 km
PLANET IGUP-2205AT - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T, 1000Base-BX - RJ-45 / SFP (mini-GBIC) - up to 120 km
Ražotājs
•PLANET
Ražotāja kods
•IGUP-2205AT
Artikuls
•3009812
Intrastat
•85176990
Pakas svars
•0.665 kg
Kopā pieejams (gab.)
•28
Tuvākā piegāde
•05.05.2026
Device Type
Fibre media converter
Form Factor
Wall / DIN rail mountable
Connectivity Technology
Wired
Cabling Type
10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T, 1000Base-BX
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate
1 Gbps
Max Transfer Distance
120 km
Status Indicators
Power, link/activity
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 6KV ESD Protector, Back Pressure Support, Energy-Efficient Ethernet (EEE)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Interfaces
2 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female - 95 W ¦ 2 x Ethernet 1000Base-X - SFP female
Compliant Standards
IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Power Over Ethernet (PoE)
PoE++
Power Device
Internal power supply
Voltage Required
DC 12 - 56 V
Width
5.5 cm
Depth
8.5 cm
Height
13.5 cm
Weight
665 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 90% (non-condensing)
