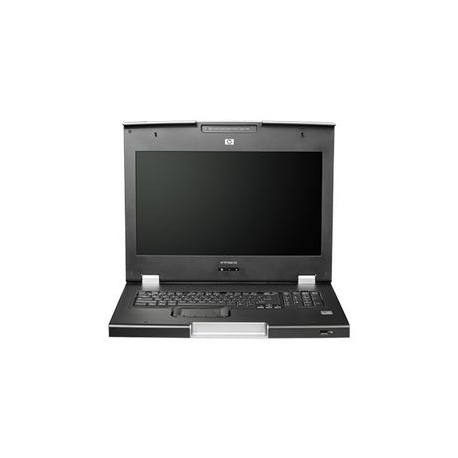

HPE LCD8500 - KVM console - USB - 18.51" - rack-mountable - 1600 x 1200 @ 60 Hz - 187 cd / m² - 700:1 - 16 ms - silver - 1U - for 11000 G2 Series; ProLiant DL20 Gen9, DL580 Gen9, MicroServer Gen8, ML110 Gen9, ML350p Gen8

HPE LCD8500 - KVM console - USB - 18.51" - rack-mountable - 1600 x 1200 @ 60 Hz - 187 cd / m² - 700:1 - 16 ms - silver - 1U - for 11000 G2 Series; ProLiant DL20 Gen9, DL580 Gen9, MicroServer Gen8, ML110 Gen9, ML350p Gen8

Ražotājs
HPE
Ražotāja kods
AF630A
Artikuls
1244954
Intrastat
85285900
Pakas svars
11.18 kg
<div><div>Need a console with the latest in KVM technology to manage the servers in your rack? Knowledge is power – know what's going on right at the rack with HPE KVM. HPE KVM Console Kits provides high-performance display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it. The HPE LCD8500 with 18.5-inch WXGA TFT LCD Brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 features a silver enclosure making identification in the rack easier. The integrated keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. Also included, is a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.<br /></div> <span> <!-- ProductFeautures here --> </span><div class="cPF"><ul><li><strong>Ultra-Dense, High-Performance KVM Console Display and Keyboard</strong><br />HPE KVM Console Kits combine the rack display panel and keyboard with touch pad in a 1U form factor that allows you to mount a KVM console switch directly behind it saving you space.<br />Features an 18.5-inch WXGA TFT LCD Brightview display that supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates.<br />Active Matrix TFT LCD display guarantees a flicker-free picture that is sharper in focus than a CRT monitor.<br />Includes two (2) front side USB pass-through ports for use with KVM Console Switches that support virtual media.</li><li><strong>Advanced, Ergonomic Design</strong><br />HPE KVM Console Kits feature a new silver colored enclosure making identification in the rack much easier.<br />Includes a three-button touch pad, four (4) scroll keys, and Windows shortcut keys.<br />Lid Switch display management feature shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.<br />Tool-less rails for rack installation are included with each console kit allowing for quick and easy installation within minutes.</li></ul></div> </div>

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs
HPE
Ražotāja kods
AF630A
Artikuls
1244954
Intrastat
85285900
Pakas svars
11.18 kg
<div><div>Need a console with the latest in KVM technology to manage the servers in your rack? Knowledge is power – know what's going on right at the rack with HPE KVM. HPE KVM Console Kits provides high-performance display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it. The HPE LCD8500 with 18.5-inch WXGA TFT LCD Brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 features a silver enclosure making identification in the rack easier. The integrated keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. Also included, is a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.<br /></div> <span> <!-- ProductFeautures here --> </span><div class="cPF"><ul><li><strong>Ultra-Dense, High-Performance KVM Console Display and Keyboard</strong><br />HPE KVM Console Kits combine the rack display panel and keyboard with touch pad in a 1U form factor that allows you to mount a KVM console switch directly behind it saving you space.<br />Features an 18.5-inch WXGA TFT LCD Brightview display that supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates.<br />Active Matrix TFT LCD display guarantees a flicker-free picture that is sharper in focus than a CRT monitor.<br />Includes two (2) front side USB pass-through ports for use with KVM Console Switches that support virtual media.</li><li><strong>Advanced, Ergonomic Design</strong><br />HPE KVM Console Kits feature a new silver colored enclosure making identification in the rack much easier.<br />Includes a three-button touch pad, four (4) scroll keys, and Windows shortcut keys.<br />Lid Switch display management feature shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.<br />Tool-less rails for rack installation are included with each console kit allowing for quick and easy installation within minutes.</li></ul></div> </div>

Display Type
KVM console / TFT active matrix
Diagonal Size
18.51"
Native Resolution
1600 x 1200 at 60 Hz
Brightness
187 cd/m²
Contrast Ratio
700:1
Response Time
16 ms
Controls & Adjustments
Brightness, contrast
OSD Languages
Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Colour
Silver
Dimensions (WxDxH)
43.61 cm x 43.3 cm x 4.23 cm
Height (Rack Units)
1U
Weight
5.2 kg
Type
Keyboard, touchpad
Keyboard / Mouse Interface
USB
Features
US keyboard layout
Interfaces
2 x USB
Rack Mounting Kit
Included
Compliant Standards
WEEE
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (Typical)
36 Watt
Service & Support
Limited warranty - parts - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Designed For
HPE 11000 G2 Series 11642 1075mm Pallet Universal Rack ¦ HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Entry, DL20 Gen9 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL580 Gen9, DL580 Gen9 Base, DL580 Gen9 High Performance, DL580 Gen9 SAP HANA Scale-out Base Configuration, DL580 Gen9 SAP HANA Scale-up Bas
